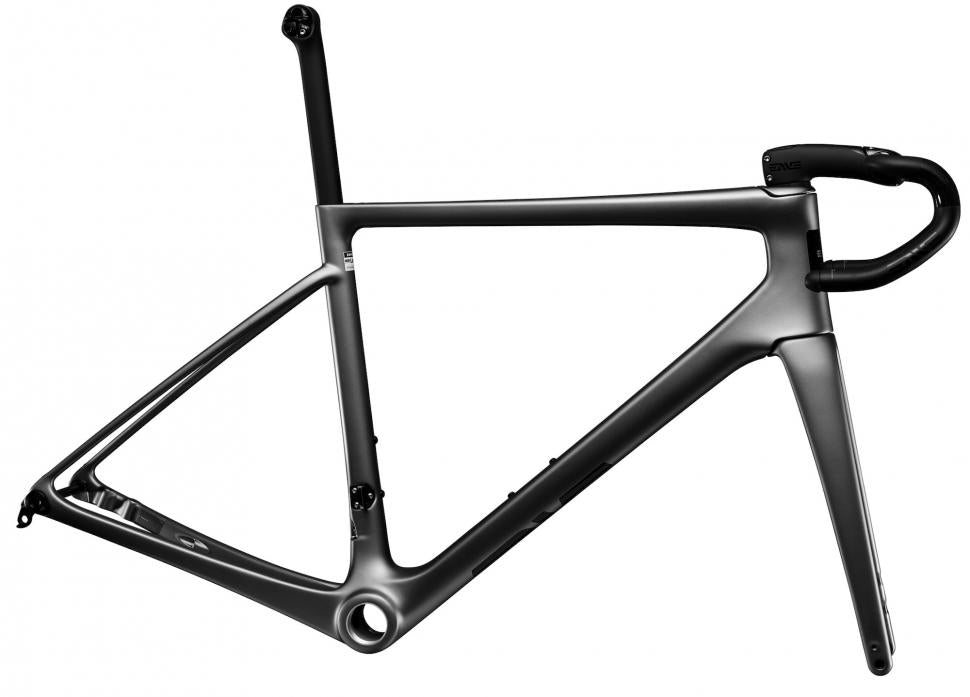

ENVE Melee Damascus 54cm Dura Ace 12 Speed
MIND PREPPED, BODY READY, EQUIPMENT ON POINTThe ENVE MELEE Chassis is the starting point for a road...
Availability:
In stock
- $11,999.00
$9,999.00- $11,999.00
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$11,999.00
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xMIND PREPPED, BODY READY, EQUIPMENT ON POINT
The ENVE MELEE Chassis is the starting point for a road bike build to match confidence in your ability with confidence in your equipment.
The Melee takes design cues from the ENVE Custom Road, but where the Custom Road prioritizes customization, the Melee prioritizes efficiency and speed. With geometry optimized around 27 to 32 mm tires, the Melee dials up the versatility with the ability to fit up to 35 mm tires, allowing you to tune your Melee to meet the needs of the day.
REAL WORLD FAST
Developed in CFD and the wind tunnel, the Melee features refined tube shapes that have been tuned to complement their SES™ rim shapes and deliver aerodynamic performance. Additional features such as the Integrated Front-End add to the Melee's slippery design.
The Integrated Front-End routes wires and hoses through the bar, stem, and headset, where they're secured using ENVE's anti-rattle finishing kit, allowing them to remain silent, out of sight, and out of the wind.
FIT & GEOMETRY
At the foundation of performance are bike fit and geometry. Offered in seven sizes with five fork rakes, the Melee has your ideal fit in mind — like no other race bike on the market.
ENVE have added two extra fork rakes to specifically accommodate the smallest and largest of riders. This ensures that the Melee, regardless of size, will deliver the same level of responsive, confidence-inspiring handling required of a race bike.
BUILT IT YOUR WAY
The Melee chassis is the canvas upon which you can create your dream bike. Choose your SES AR Handlebar width, Integrated Aero Stem length, and Aero Seatpost setback to achieve your perfect setup.
FEATURES
- Balanced for aero efficiency and weight savings
- Tube shapes complement SES rim shapes
- Integrated Front-End hides wires and brake hoses
- Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph
- Optimized for tires 27-32mm, fits up to 35mm
- ENVE Factory Limited Warranty
- ENVE Incidental Damage Protection
Specification
xFRAME SPECS
|
Frame Material |
ENVE M.O.D Carbon |
|
Fork Material |
ENVE M.O.D Carbon |
|
Target Application |
Road Race/Performance |
|
Sizes (cm) |
47, 50, 52, 54, 56, 58, 60 |
|
Fork Rake |
55, 51, 47, 43, 39 |
|
Frame Size/Fork Rake |
47cm/55, 50cm/51, 52cm/47, 54cm/47, |
|
Frame Weight |
850g +/- 2% (Size 56, Painted, No Hardware) |
|
Headset |
ENVE Integrated IS52/IS52 Internal Drop-In |
|
Headset Bearing |
1.5″ IS52 Upper and Lower |
|
Seat Post Diameter |
ENVE Aero |
|
BB Type |
T47 Inboard Bearing |
|
Brake Mount |
Flat Mount |
|
Front Axle |
12×100 (Total Length: 122, TP:1.5, TL:15) |
|
Rear Axle |
12×142 (Total Length: 168, TP:1.0, TL:14) |
|
Minimum Tire Size |
25c |
|
Optimal Tire Size |
27c-32c |
|
Maximum Listed Tire Clearance |
35c |
|
Frame Routing |
Internal |
COMPONENT COMPATIBILITY
|
Handlebars |
SES AR (38, 40, 42, 44, 46) |
|
Stem |
ENVE Integrated (80, 90, 100, 110, 120, 130) |
|
Seat Posts |
Aero 275mm x 0 Offset |
DRIVETRAIN COMPATIBILITY
|
Shimano Mechanical 1x |
Yes |
|
Shimano Mechanical 2x |
Yes |
|
Shimano Electronic Di2 (1x/2x) |
Yes |
|
SRAM Mechanical 1x |
Yes |
|
SRAM Mechanical 2x |
No (Melee requires continuous housing for FD) |
|
SRAM AXS (1x/2x) |
Yes |
|
Campy Mechanical 1x |
Yes |
|
Campy Mechanical 2x |
No (Melee requires continuous housing for FD) |
|
Campy Electronic EPS |
Not Compatible |

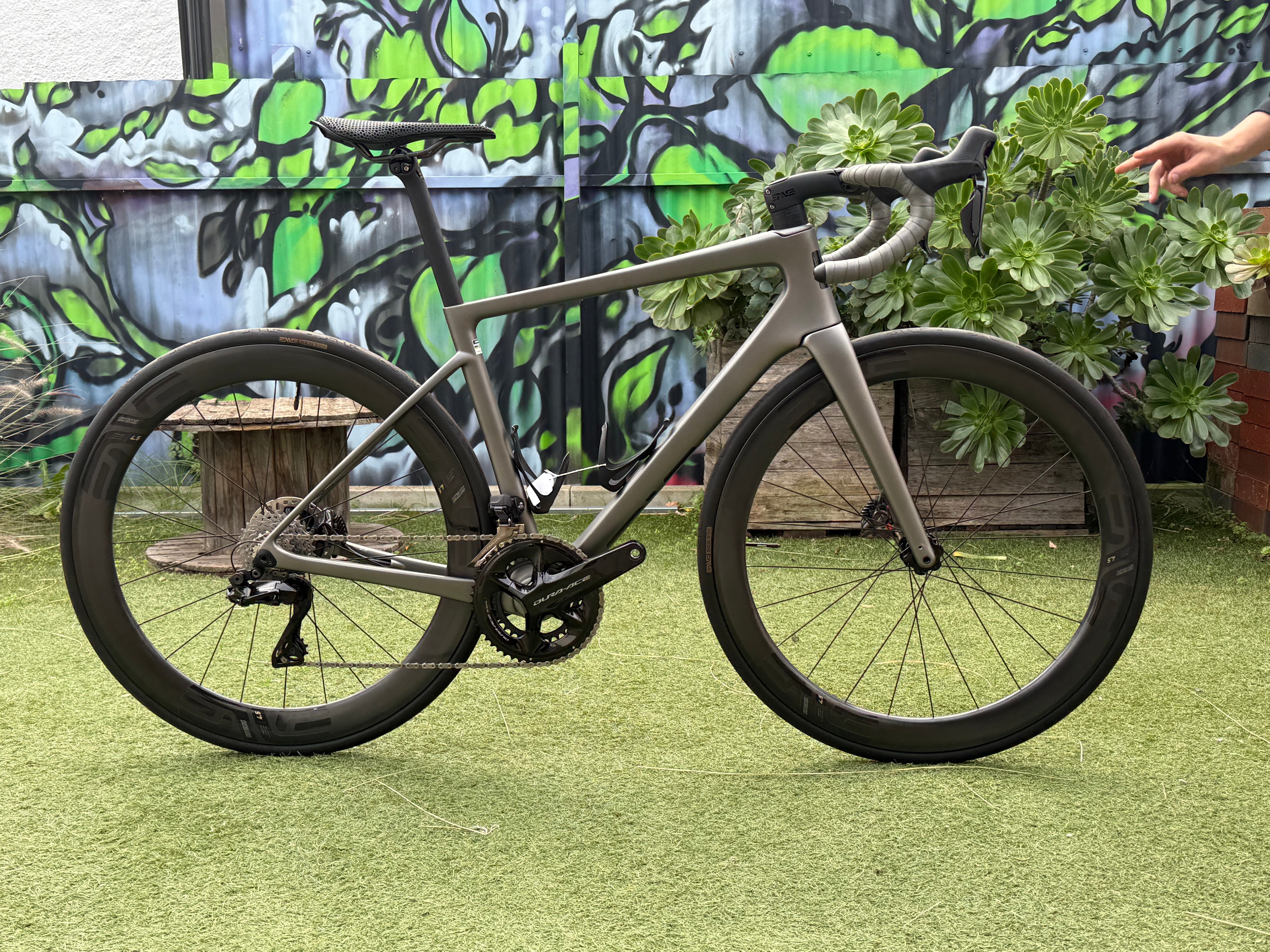

| Component | Specification |
|---|---|

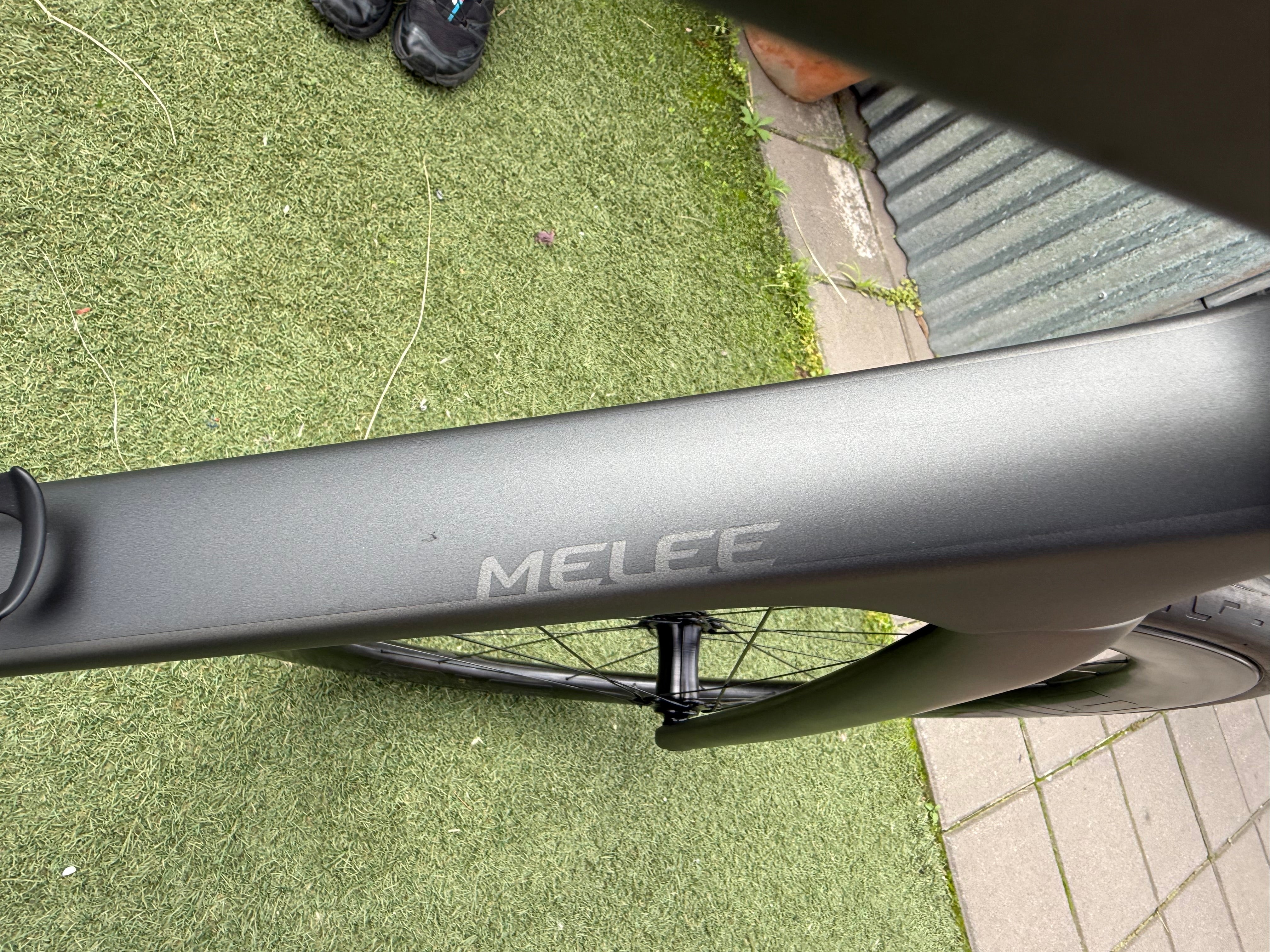

| Frame | ENVE Melee Damascus 54cm |
| Fork | ENVE M.O.D Carbon |
| Color | Matte Silver |
| Material | ENVE M.O.D Carbon |
| Bottom Bracket | T47 Inboard Bearing |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |

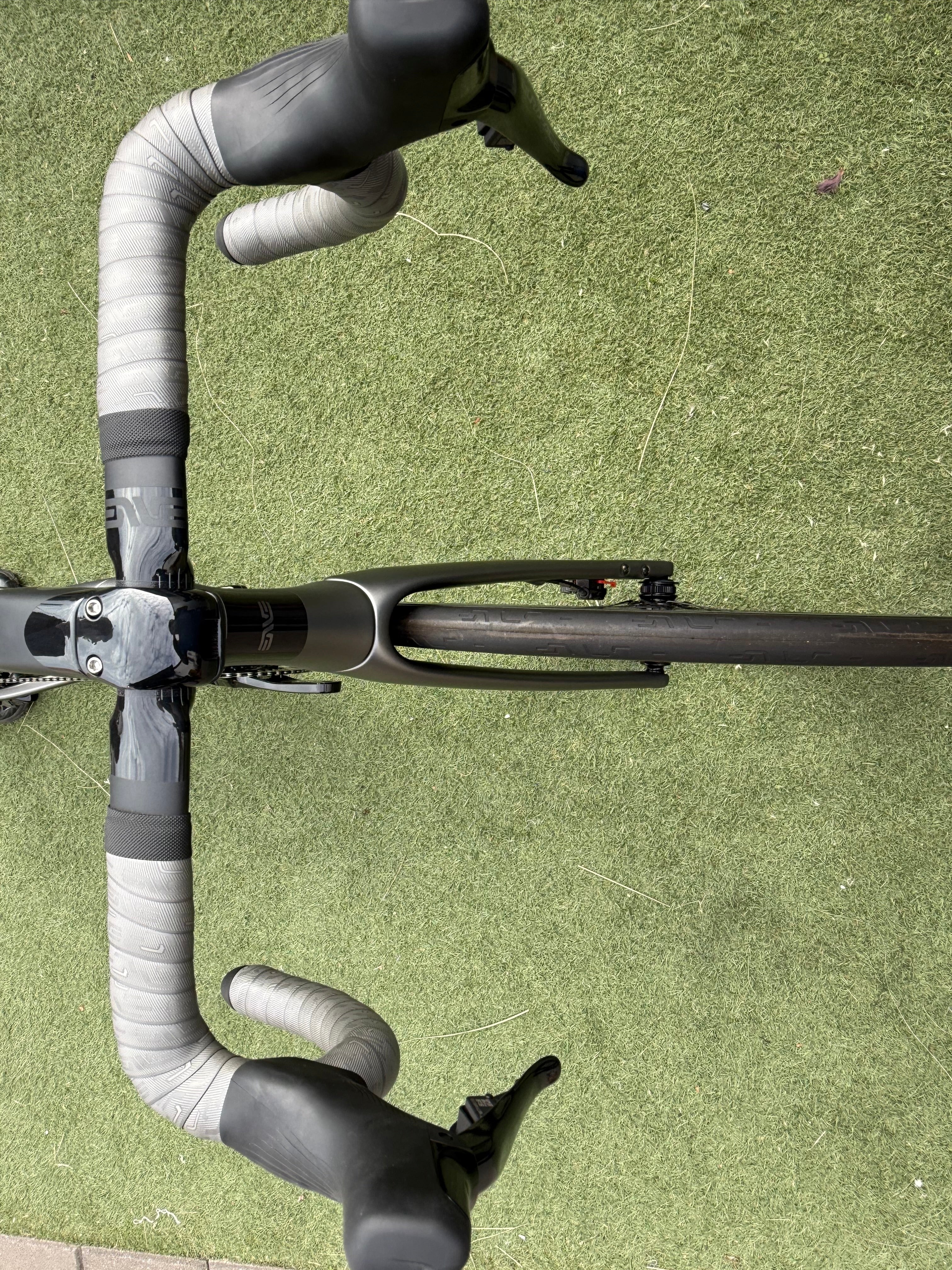

| Handlebar/Stem Unit | ENVE Integrated (80, 90, 100, 110, 120, 130) |
| Handlebar Tape | ENVE |
| Seatpost | ENVE Aero 275mm x 0 Offset |

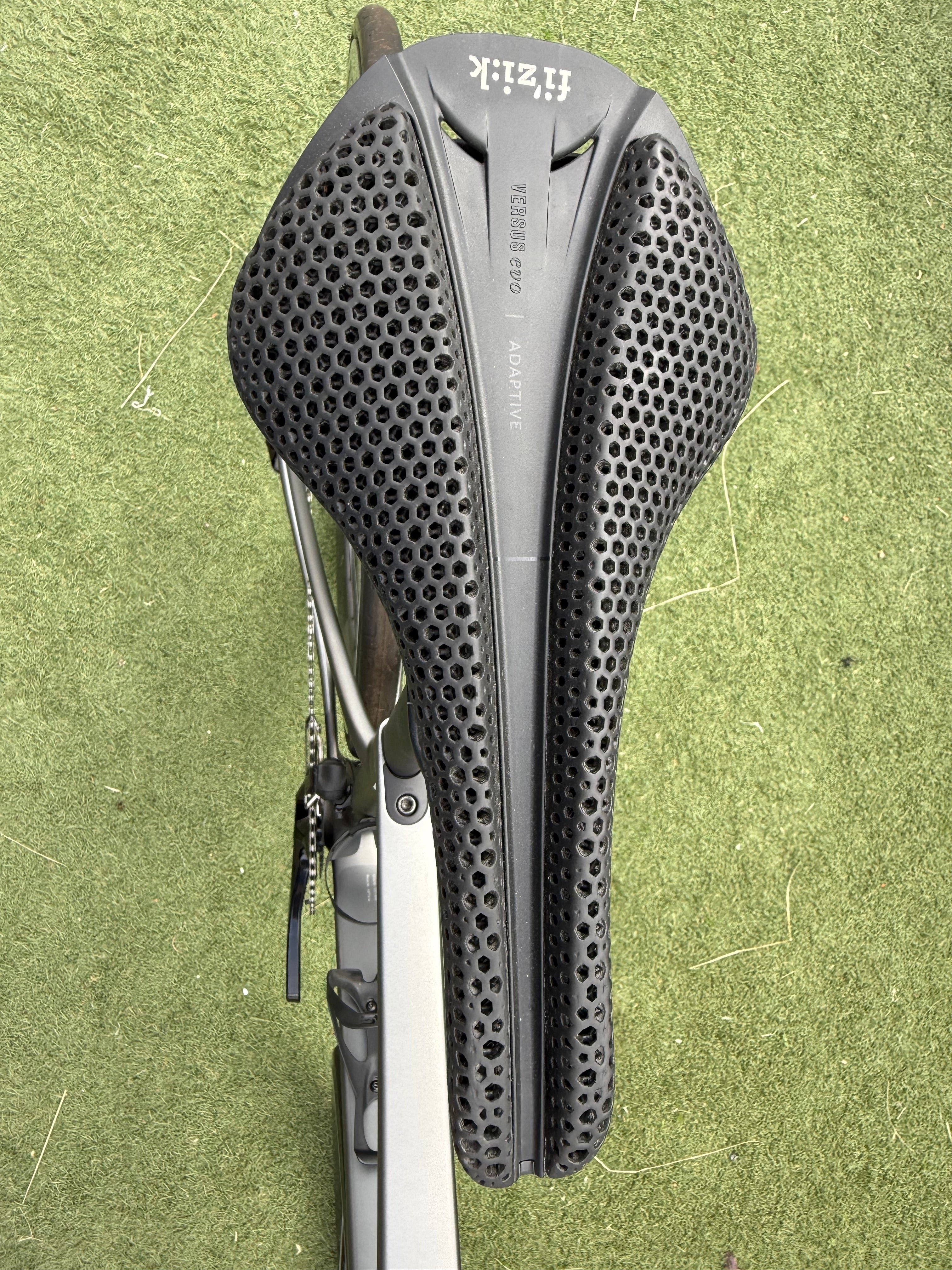

| Saddle | Fizik Antares Versus Evo Adaptive 00 R Black 149 |
| Wheels | ENVE SES 3.4C TLR DB, ENVE Alloy Hub, 12TA CL, SRAM std, Black |
| Tires | ENVE SES Road TR 700×31C Black |
| Axles | 12/100 mm (front), 12/142 mm (rear) |

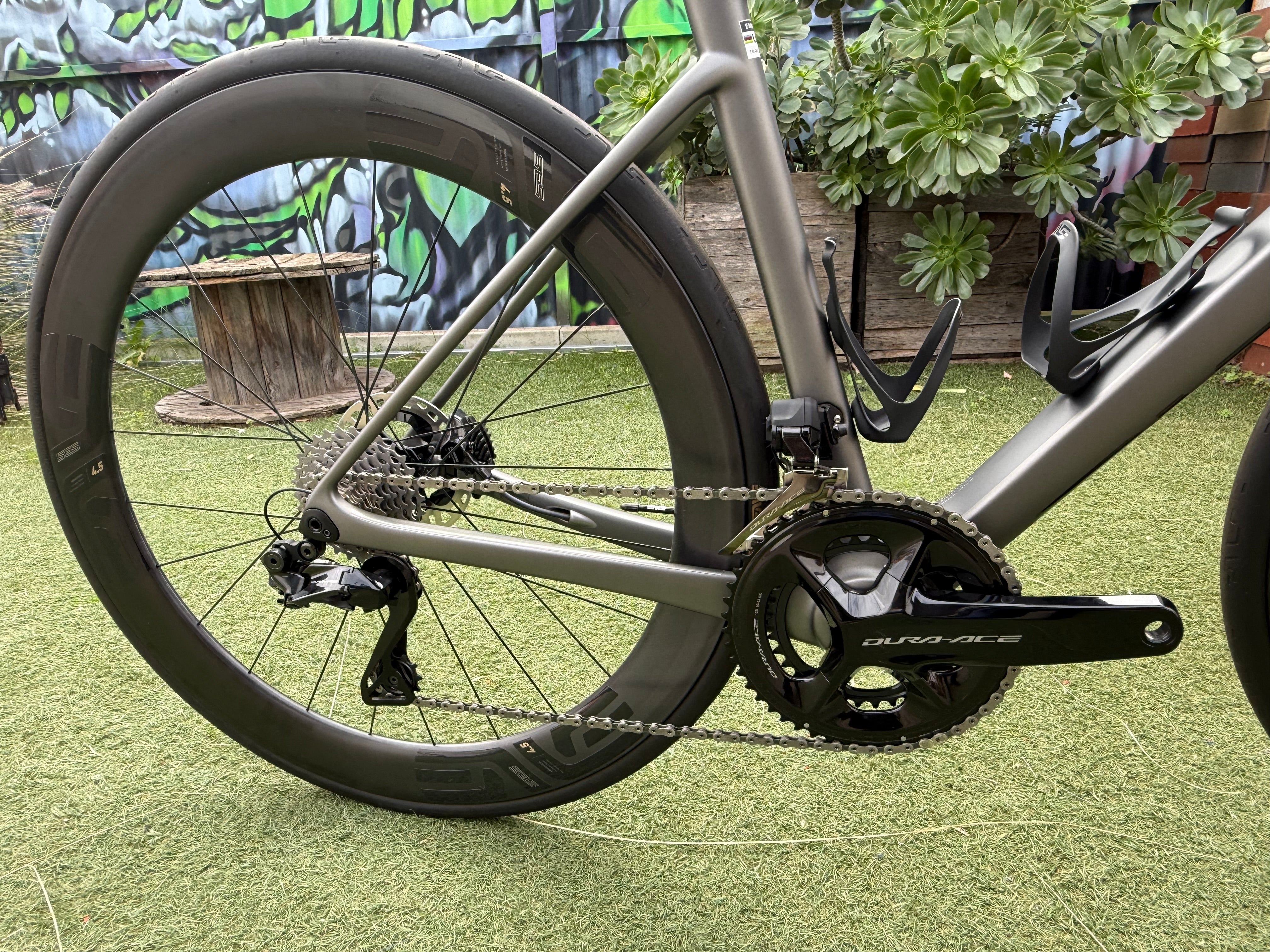

| Rear Derailleur | Shimano Dura‑Ace Di2 R9250 |
| Front Derailleur | Shimano Dura‑Ace Di2 9250 |
| Brakes/Shifters | Shimano Dura‑Ace Di2 Disc 2×12 |
| Brakes | Shimano Dura‑Ace 160/160 mm |
| Crankset | Shimano Dura‑Ace 52/36 |
| Chain | Shimano Dura‑Ace 12‑speed |
| Cassette | Shimano Dura‑Ace 12‑speed, 11–30 |
