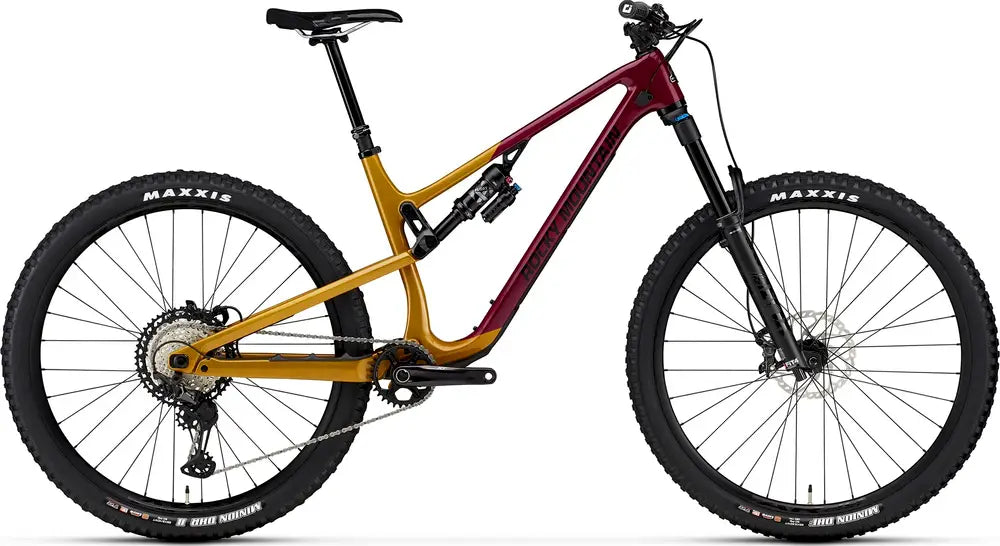

Instinct C70 29" Rocky Mountain Gold/Red
Black Friday Free Shipping
Availability:
In stock
- $5,599.00
$10,999.00- $5,599.00
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$5,599.00
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xTotal trail precision
Razor sharp handling and a buttery but efficient suspension setup means satisfying small bump compliance and addictive flickability. Hitting the sweet spot between big hit confidence and surgical levels of precision, it rewards the rider ready to ride more of everything, faster.
An Instinct for every rider
Embiggening or shrinking a frame isn’t enough. That’s why the Instinct comes in six distinctly sized frames with specific suspension kinematics and two wheel-size options. It’s the only way to ensure every element of the Instinct’s character gets fully realized for every rider.
The right setup for any trail
Total precision is yours on any trail with our RIDE-9 adjustment system and 2-position rear axle that allows for chainstay length adjustment. It’s everything you need to quickly arrive on the best setup for the trail ahead.
Review
"Whether it is a new trail that people keep saying is "so gnarly!" or a distant point on the map that makes for an ambitious objective for a ride, the Instinct handles it beautifully and makes it all just so fun!" - FELIX BURKE
Specification
xSpecs
Build
Frame
- SMOOTHWALL™ Carbon
- Full Sealed Cartridge Bearings
- Press Fit BB
- Internal Cable Routing
- 2-Bolt ISCG05 Tabs
- RIDE-9™ Adjustable Geometry
- 2 Position Axle
- 140mm Travel
- SMOOTHWALL™ Carbon Rear Triangle
BB Standard
- BB86/BB92, Press Fit
Colors
- Gold / Red
- Blue / Green
Fork
- Fox 36 Float EVOL FIT4 Performance Elite Series 150mm
- 27.5 = 37mm Offset
- 29 = 44mm Offset
- Travel: 150mm
- Spring Type: Air
Shock
- Fox Float X Performance Elite
- Sealed Bearing Eyelet
- 25x8mm F Hardware
- XS - SM = 190x45mm
- MD - LG - XL = 210x52.5mm
- Size-Specific tune in FAQ
- Travel: 140mm
Bottom Bracket
- FSA BB92 24mm
Headset
- FSA Orbit NO.57E
- Sealed Stainless 36°x45° Bearings
- 30.2mm x 41mm x 7.1mm Upper
- 40mm x 51.8mm x 7.5mm Lower
- 1.5" Crown Race
Stem
- Rocky Mountain 35 AM
- 5° Rise
- All Sizes = 40mm
Handlebar
- Rocky Mountain AM
- 780mm Width
- 25mm Rise
- 9° Backsweep
- 5° Upsweep
- 35 Clamp
Saddle
- WTB Volt Race 142
Seatpost
- Race Face Turbine R (by Fox) Dropper
- 30.9mm
- XS - SM = 125mm
- MD = 150mm
- LG = 175mm
- XL = 200mm
- Type: Dropper
Grips
- ODI Elite Pro Lock On
Groupset
Rear Derailleur
- Shimano XT
Crank
- Shimano XT
- 32T
- 24mm Spindle
- Crankarm Length:
- XS = 165mm
- SM - XL = 170mm
Shifters
- Shimano XT
Cassette
- Shimano XT 10-51T
Chain
- Shimano M8100
Brakes
- Shimano XT Trail 4 Piston
- Metal Pads
- F: Shimano RT66 180mm
- R: Shimano RT66 180mm
- Type: Shimano XT Hydraulic Disc
Geometry
xThe geometry of the Rocky Mountain Instinct C70 in position 1 and longest chainstay position
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 380 mm | 420 mm | 445 mm | 480 mm |
| Top tube | 583 mm | 609 mm | 638 mm | 671 mm |
| Head tube | 90 mm | 95 mm | 110 mm | 125 mm |
| Head angle | 65° | 65.1° | 65.1° | 65.1° |
| Seat angle | 76.0° | 77.1° | 77.1° | 77.1° |
| Chainstays | 449 mm | 449 mm | 449 mm | 449 mm |
| BB Drop | 45 mm | 43 mm | 43 mm | 43 mm |
| Wheelbase | 1,182 mm | 1,210 mm | 1,241 mm | 1,277 mm |
| Reach | 430 mm | 456 mm | 481 mm | 511 mm |
| Stack | 615 mm | 619 mm | 633 mm | 646 mm |
