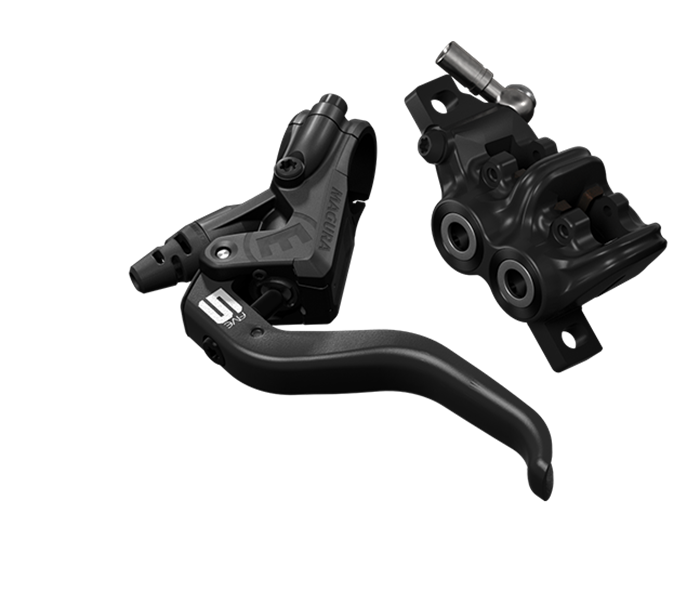

Magura Disc Bake Assembly MT5

MT5 – Award-winning introduction to the Gravity segment

The price-performance wonder in the gravity segment:

The MT5 offers excellent braking performance at an unbeatable price.

Whether in bike parks, in enduro use or on the home trail – the MT5 is up to all challenges.

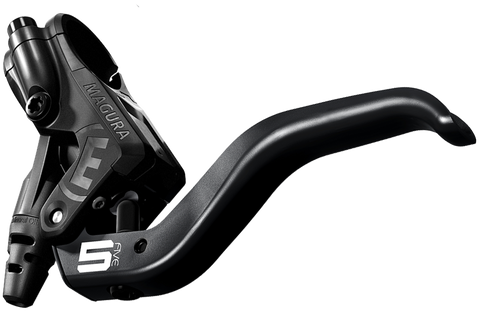

RADIAL DESIGN

The radial design of the brake master ensures low friction, reducing transmission losses.

It also enables the conversion of (small/large) transmission ratios, which improves modulation and control.

Braking performance doesn’t have to be expensive:

With the MT5 you save money and still get the performance you need.

The 4-piston brake calliper forged in one piece has a high degree of rigidity, resulting in

• outstanding braking force and
• the best possible modulation.

SPECIFICATIONS

• Application: Gravity, Downhill, Enduro, Trail, eMTB, eMobility, Trekking, Tour, Cargo Bike, E-Cargo Bike
• Color: Black, Silver
• Weight: 255 g
• Pistons brake caliper: 4 pistons
• Material Master: Carbotecture®
• Lever blade type: 2-finger lever blade
• Brake pad: 9.P, Performance
• Tubing connection brakecaliper: Rotatable tube connection
• Reach Adjust: T25 tool
• Gearshift compatibility: Shimano I-Spec I+II, SRAM Matchmaker®, Shimano I-Spec EV
• PU: 1
