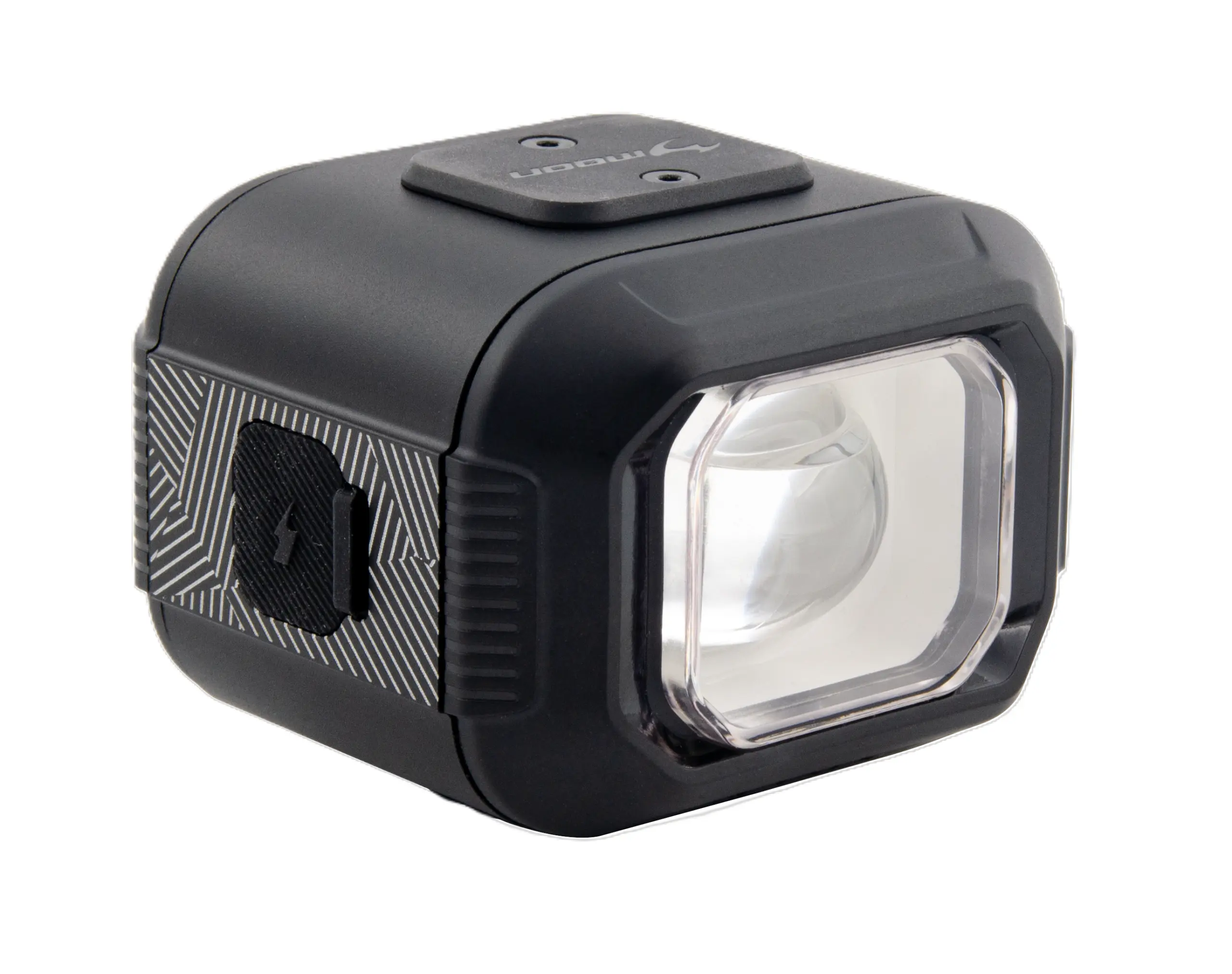

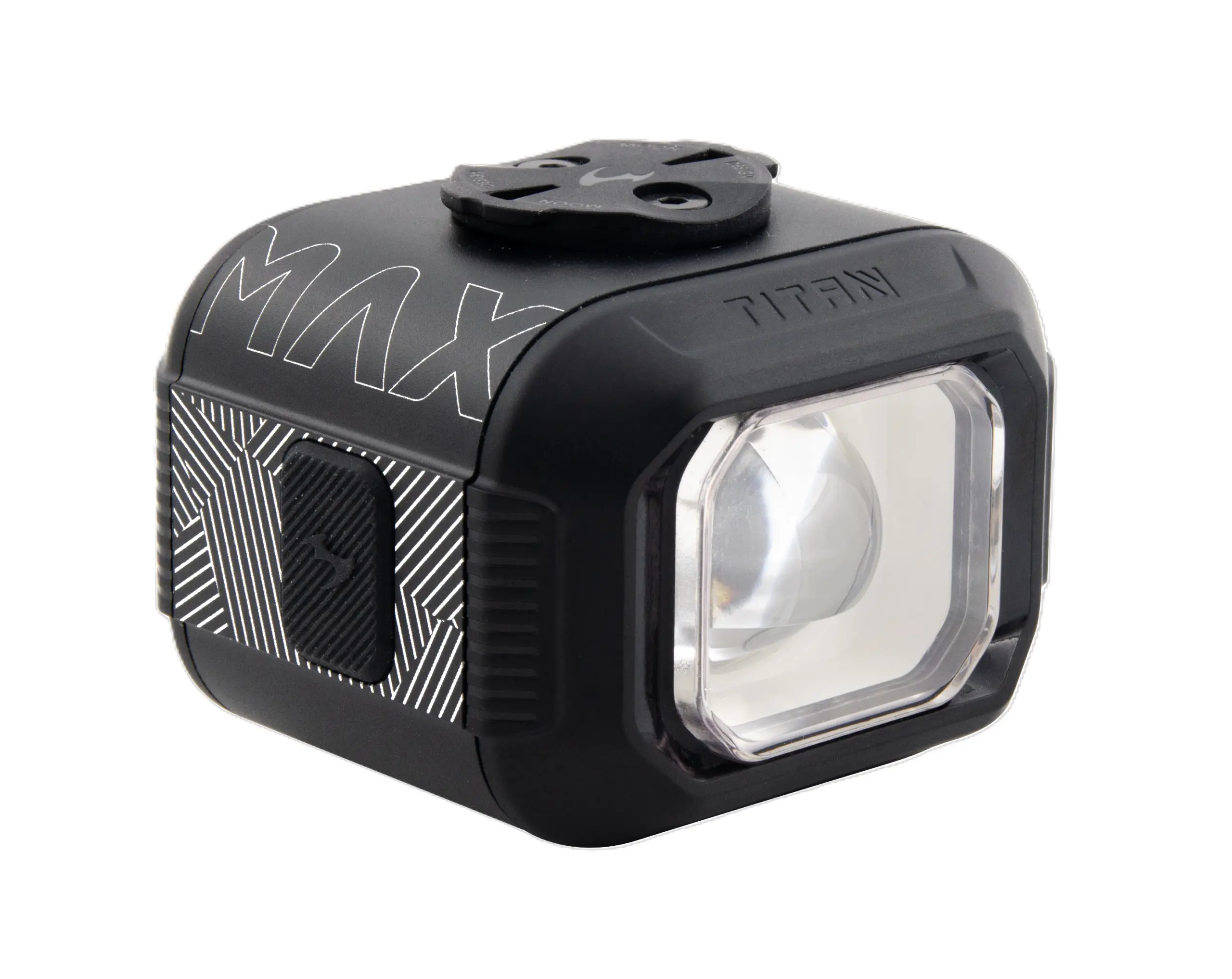

Moon Titan Max RMS Front Light – 1700 Lumens of High-Performance Illumination

The Moon Titan Max RMS delivers unmatched visibility with up to 1700 lumens in a robust, bottom-mounted design. Ideal for road and trail, its dual-range beam modes, wireless charging, and GoPro mount compatibility make it the ultimate lighting solution for serious cyclists.

Key Features

• Brightness: 1700 lumens maximum
• Beam Modes:
  • Highway Beam (1700 lm): Wide, powerful coverage for dark roads
  • City Beam (800 lm): Balanced illumination with minimal glare
• Variable Lumen System (VLS): Fine-tune output to suit any condition
• Intelligent Motion Sensing: Auto-standby when stationary
• Step-Dimming: Incremental brightness adjustment
• Wireless Two-Way USB-C Charging: Charge the light or power external devices
• Lock Control: Prevents accidental activation
• IPX7 Waterproof: Durable in all weather conditions
• CNC Aluminum Casing: Multi-color, heat-dissipating design
• Mounting: Bottom-mounted for superior visibility and protection; includes GoPro adapter

Technical Specifications

• Beam Angles: Total 46°, Spot 30°
• Estimated Runtime:
  • Highway Beam: 1700 lm – 2 h; 1000 lm – 3 h
  • City Beam: 800 lm – 7 h; 400 lm – 4 h
  • Daytime Flash (800 lm): Up to 42 h
• Battery & Charging:
  • Input: USB-C 5V/2.4A
  • Output: USB-C 5V/2.0A
  • Battery Indicator: 100%, 50%, 25%, 10%
• Power Controls:
  • On: Short press (0.5 s)
  • Off: Long press (1 s)
  • Lock/Unlock: Press 6 s when off
• Dimensions: 48 mm (W) × 55.5 mm (H) × 62 mm (D)
• Weight: –

In the Box

• Titan Max RMS Front Light
• Titan Max Handlebar Mount (M-07)
• Moon Light GoPro Adapter (RB-42)

First-Use Unlock

All Moon lights ship locked for transport. To unlock:

1. Press and hold the power button for 6–10 seconds.
2. Wait for the power button to flash blue and for the light to flash twice.
3. The light is now unlocked and ready for use or charging.

If your Titan Max does not power on immediately, complete this unlock procedure.
