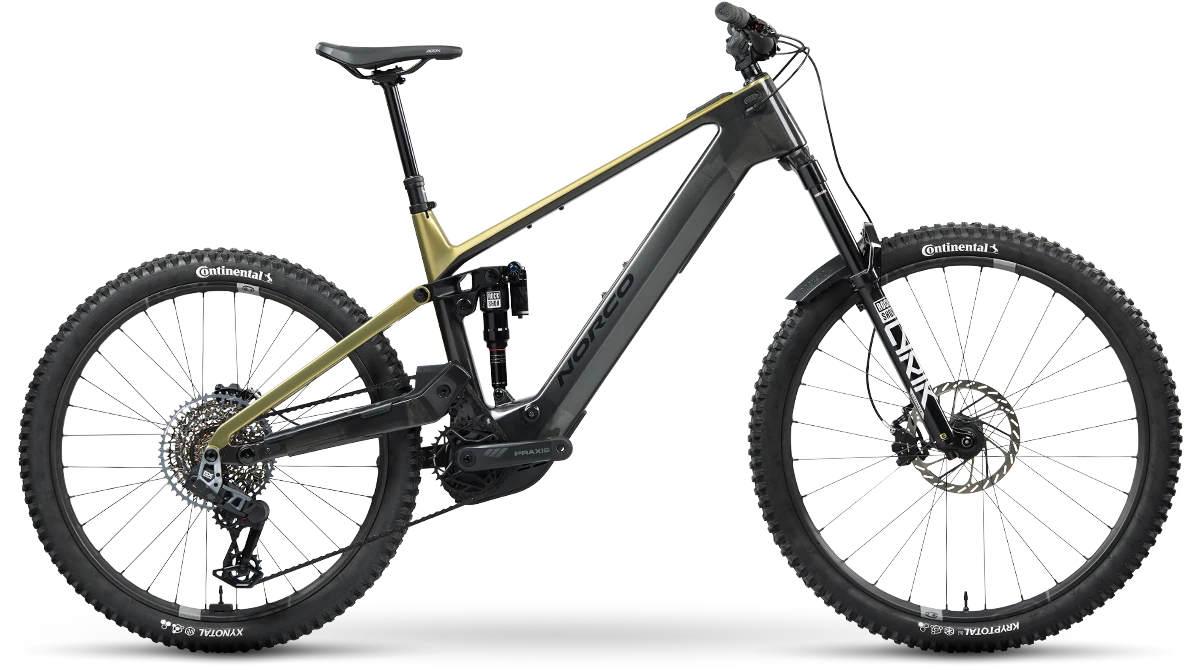

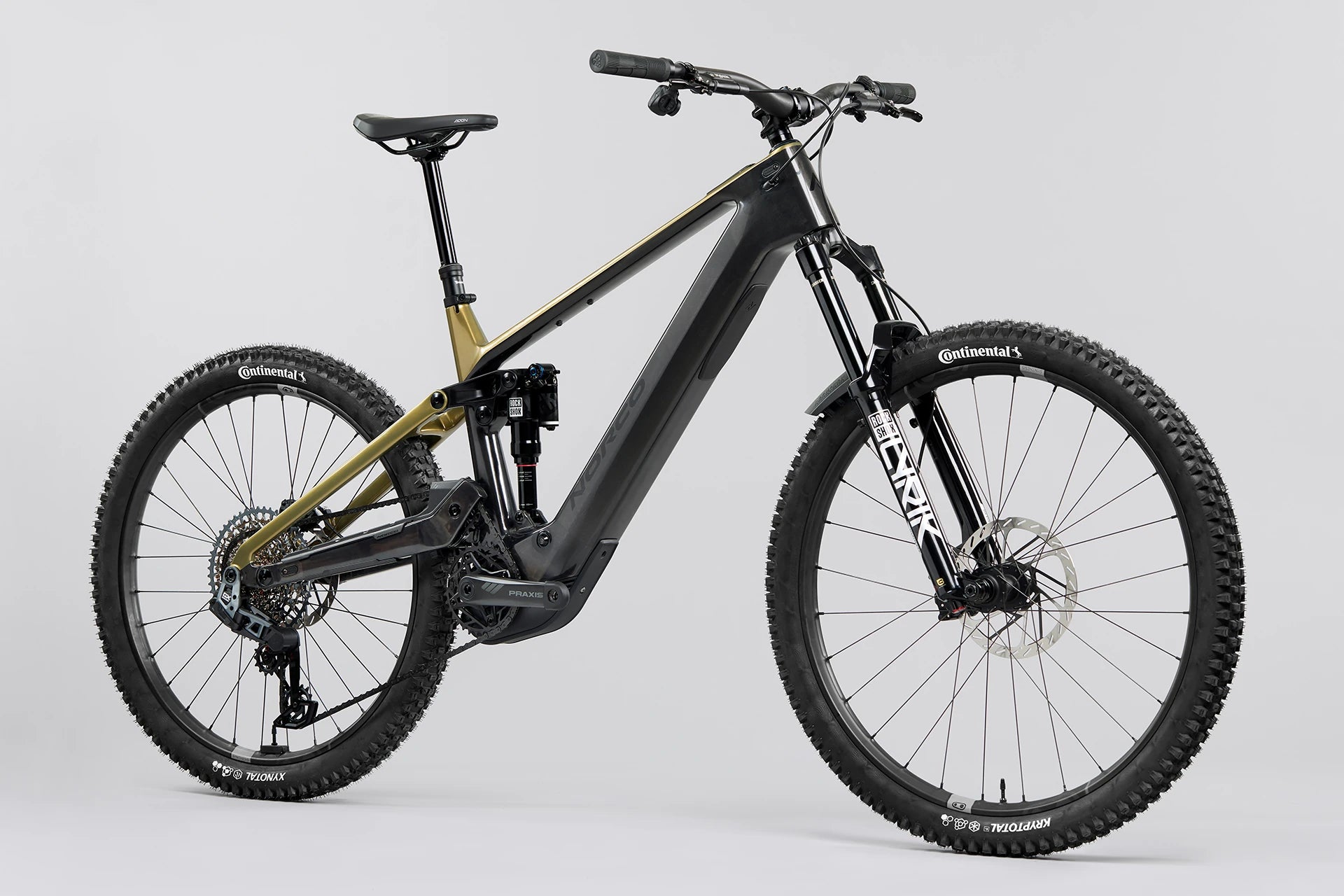

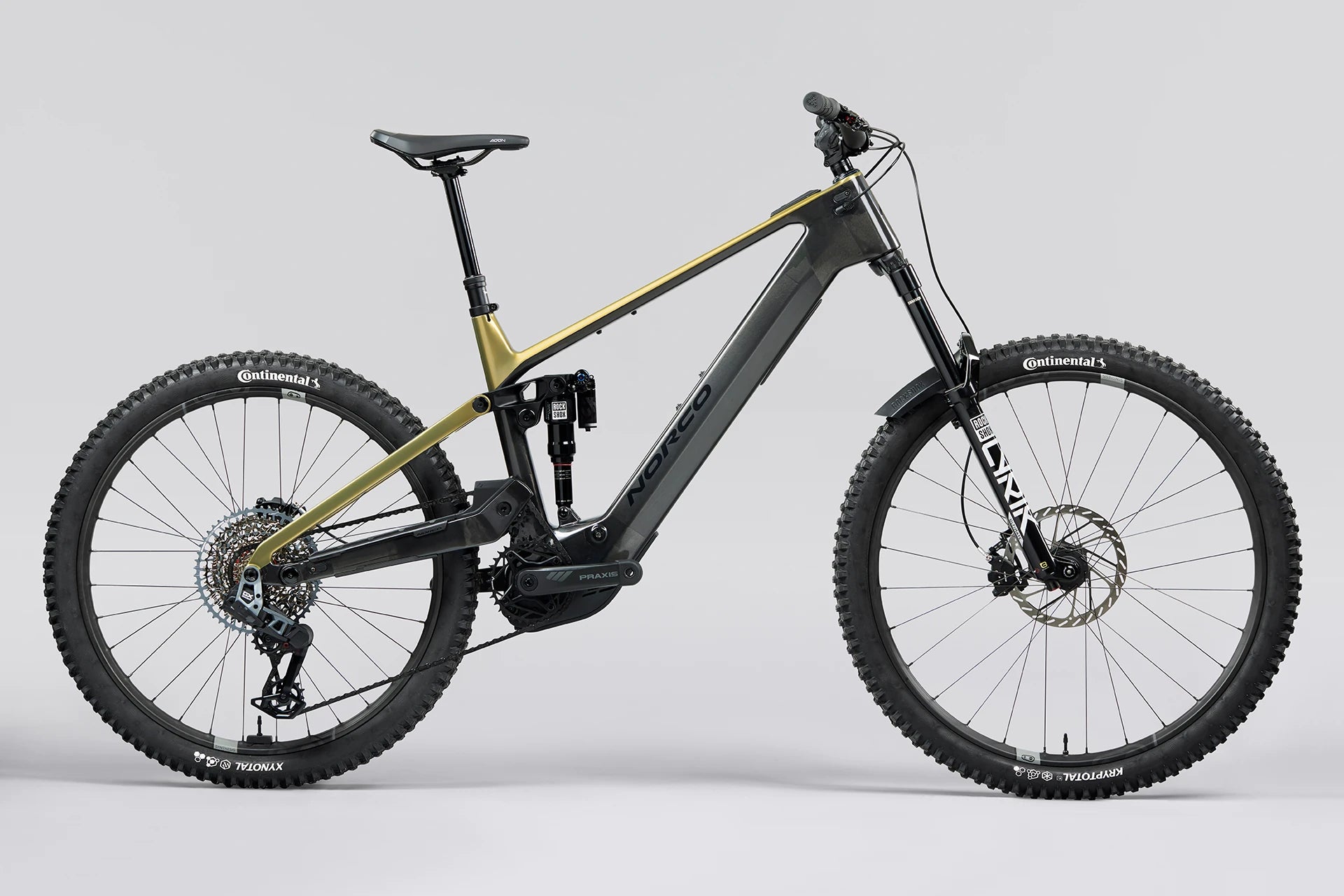

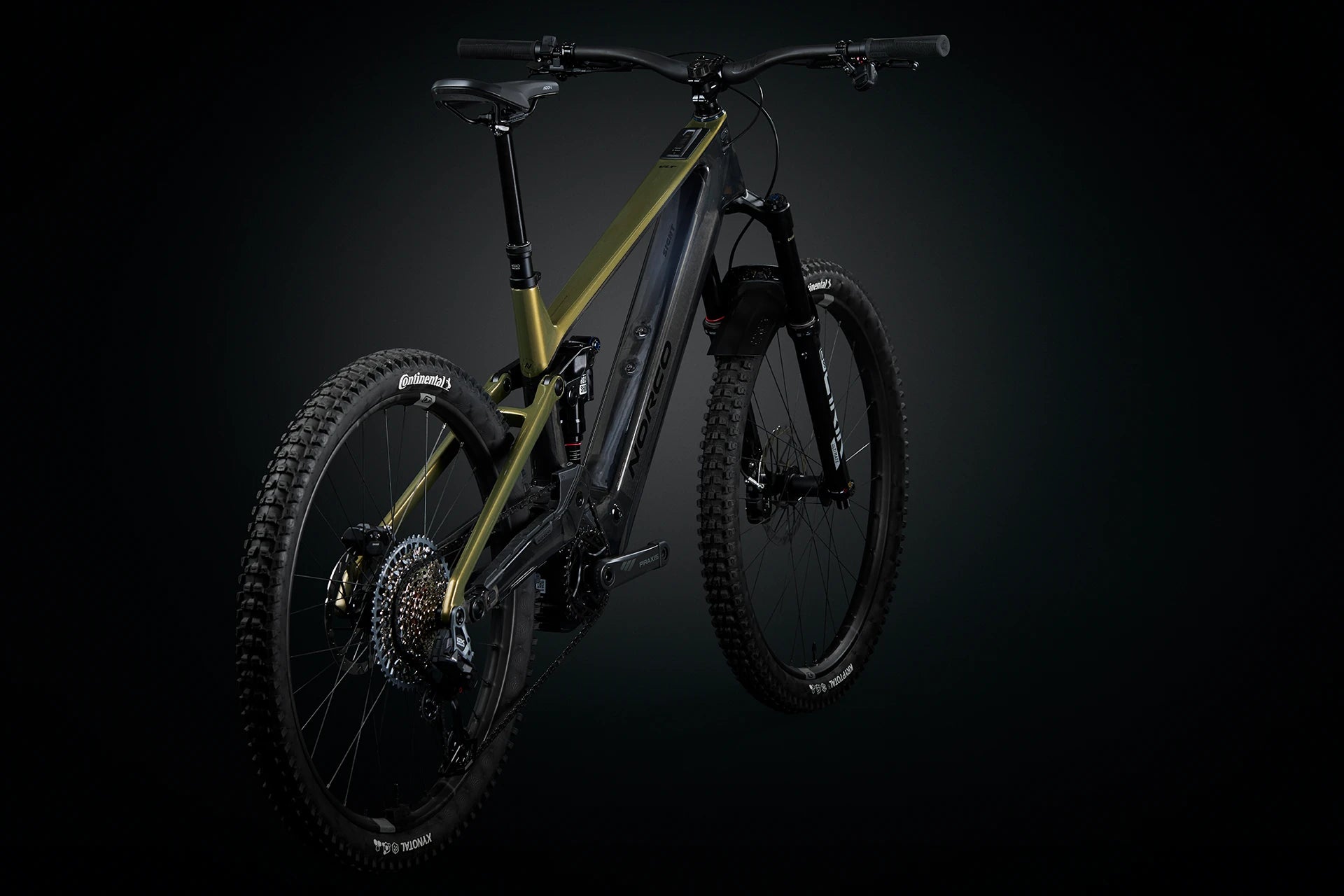

Norco Sight VLT CX C5 150 – Premium Carbon eMTB Spec

Elevate your off‑road performance with the Norco Sight VLT CX C5 150, featuring a full‐carbon high‑pivot Horst suspension frame and top‐tier components for the ultimate eMTB experience. Built around Bosch’s Performance Line CX motor and PowerTube 800 Wh battery, this bike delivers 85 Nm of torque in a lightweight, agile package.

Frame & Suspension

• Frame: Carbon, High Pivot Horst suspension, 150 mm travel, UDH dropout, Eagle Transmission compatible, Ride Aligned™ geometry

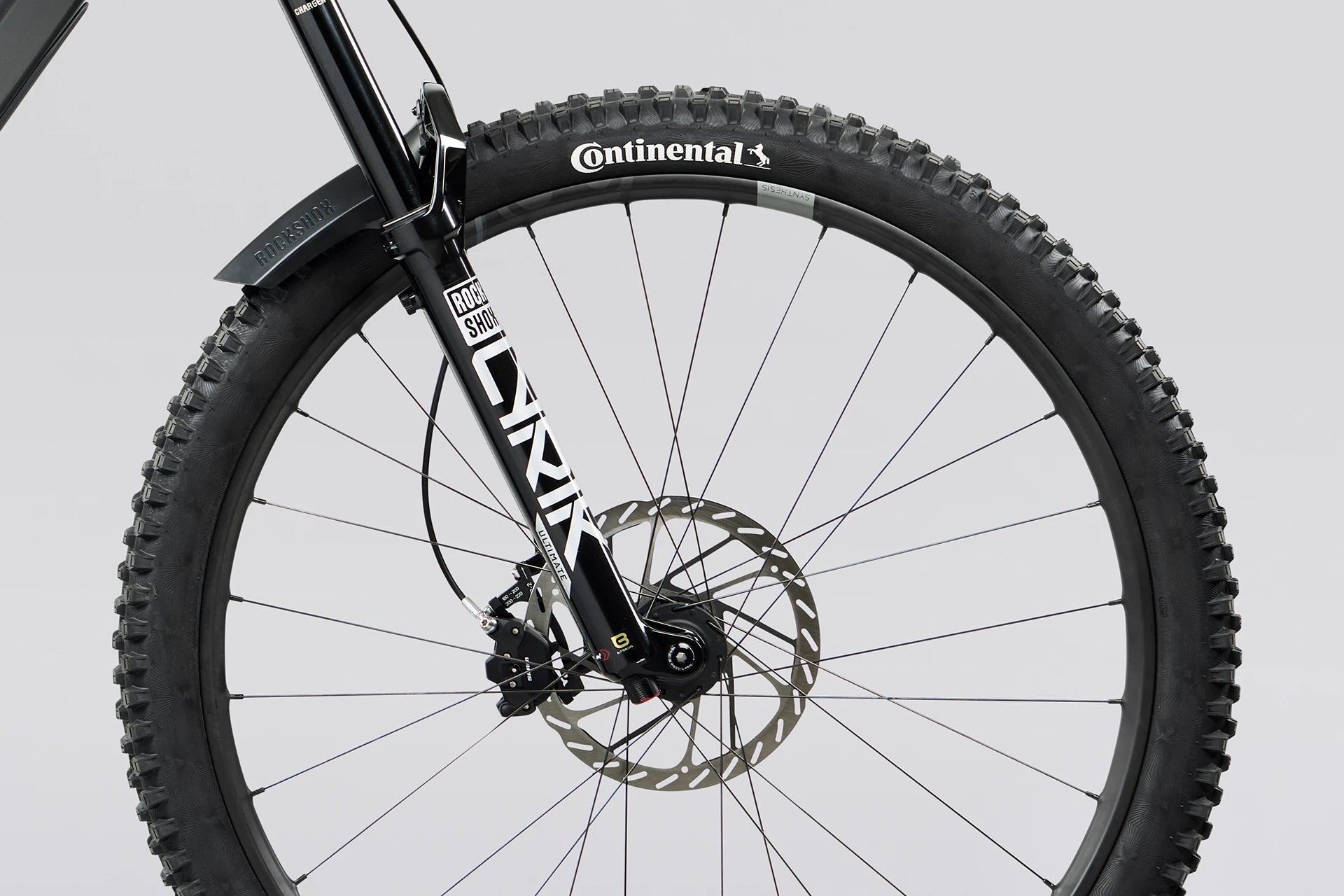

• Fork: RockShox Lyrik Ultimate RC2, 160 mm travel, 44 mm offset, E‑MTB rated, integrated fender

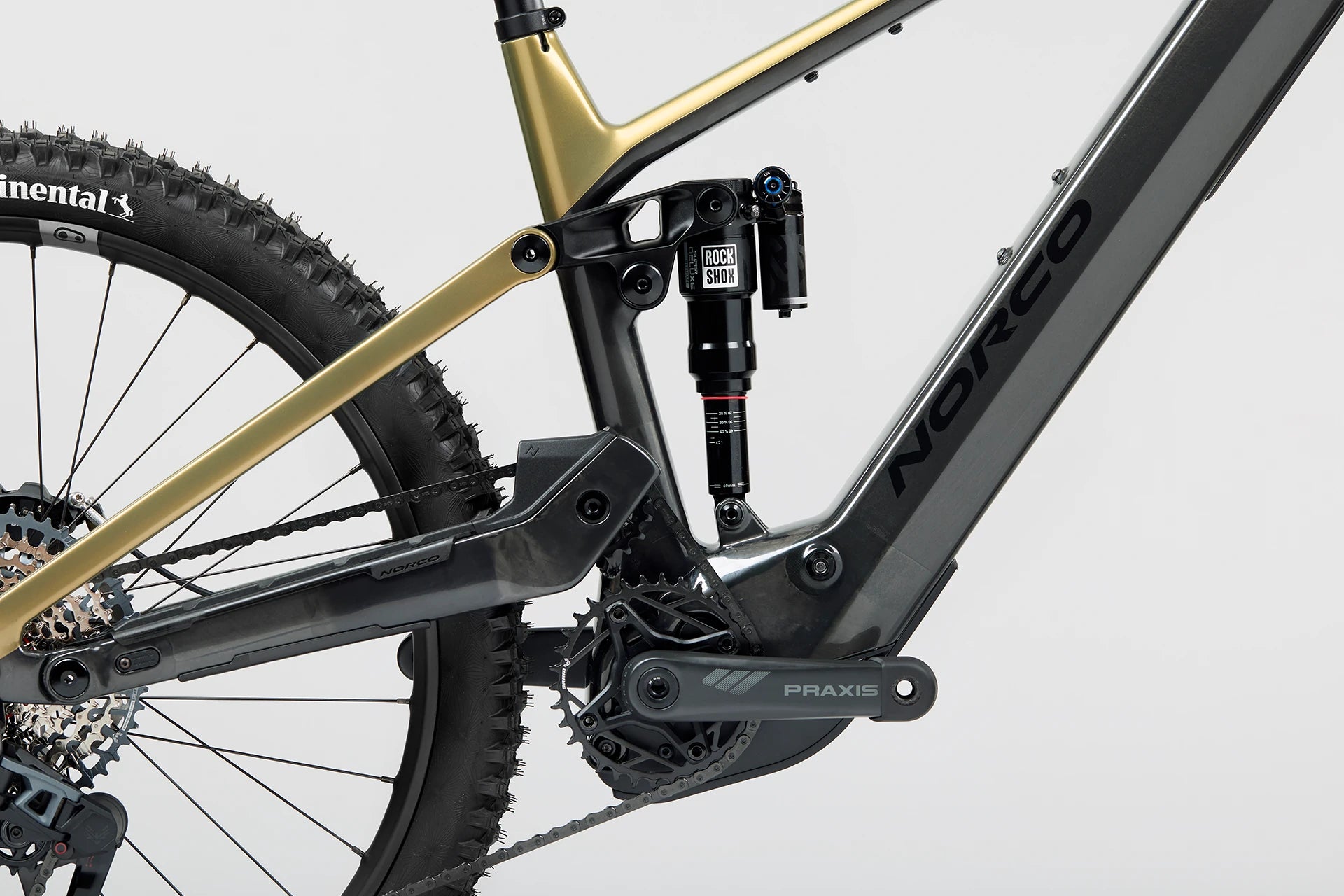

• Rear Shock: RockShox Super Deluxe Ultimate, 205×60 mm trunnion mount

Wheelset & Tires

• Wheels: Crank Bros Synthesis Carbon Enduro – 31.5 mm front / 29.5 mm rear internal width
• Hubs: Crank Bros Synthesis Carbon Enduro, 15×110 Boost front, 12×148 Boost XD rear
• Spokes: Sapim D‑Light (front), Sapim Race (rear)
• Front Tire: Continental Kryptotal‑F, 29×2.4″, Trail Endurance, foldable
• Rear Tire: Continental Xynotal, 27.5×2.4″, Enduro Soft, foldable

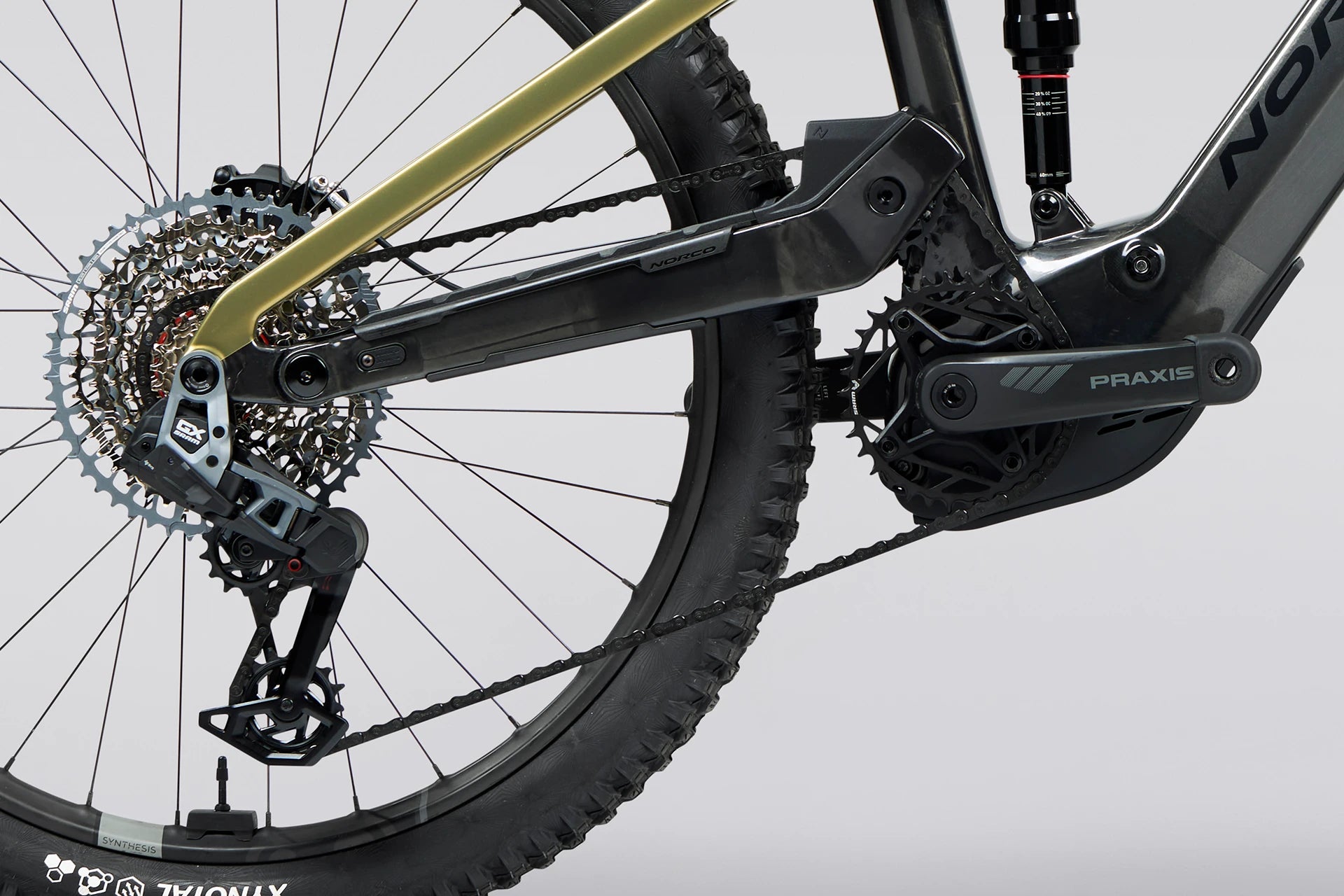

Drivetrain & Crankset

• Shifter: SRAM AXS POD Controller, discrete clamp
• Derailleur: SRAM GX Eagle AXS T‑Type, 12‑speed
• Cassette: SRAM 1275 Eagle T‑Type, 10‑52 T
• Chain: SRAM GX Eagle T‑Type, 12‑speed
• Crankset: Praxis Carbon Bosch cranks, 34 T, 165 mm
• Bottom Bracket: Bosch BES3 DU

Brakes & Controls

• Brakes: SRAM Maven Silver hydraulic with organic pads
• Rotors: SRAM HS2 – 200 mm front, 180 mm rear (2 mm thickness, 6‑bolt)
• Levers: SRAM Maven Silver

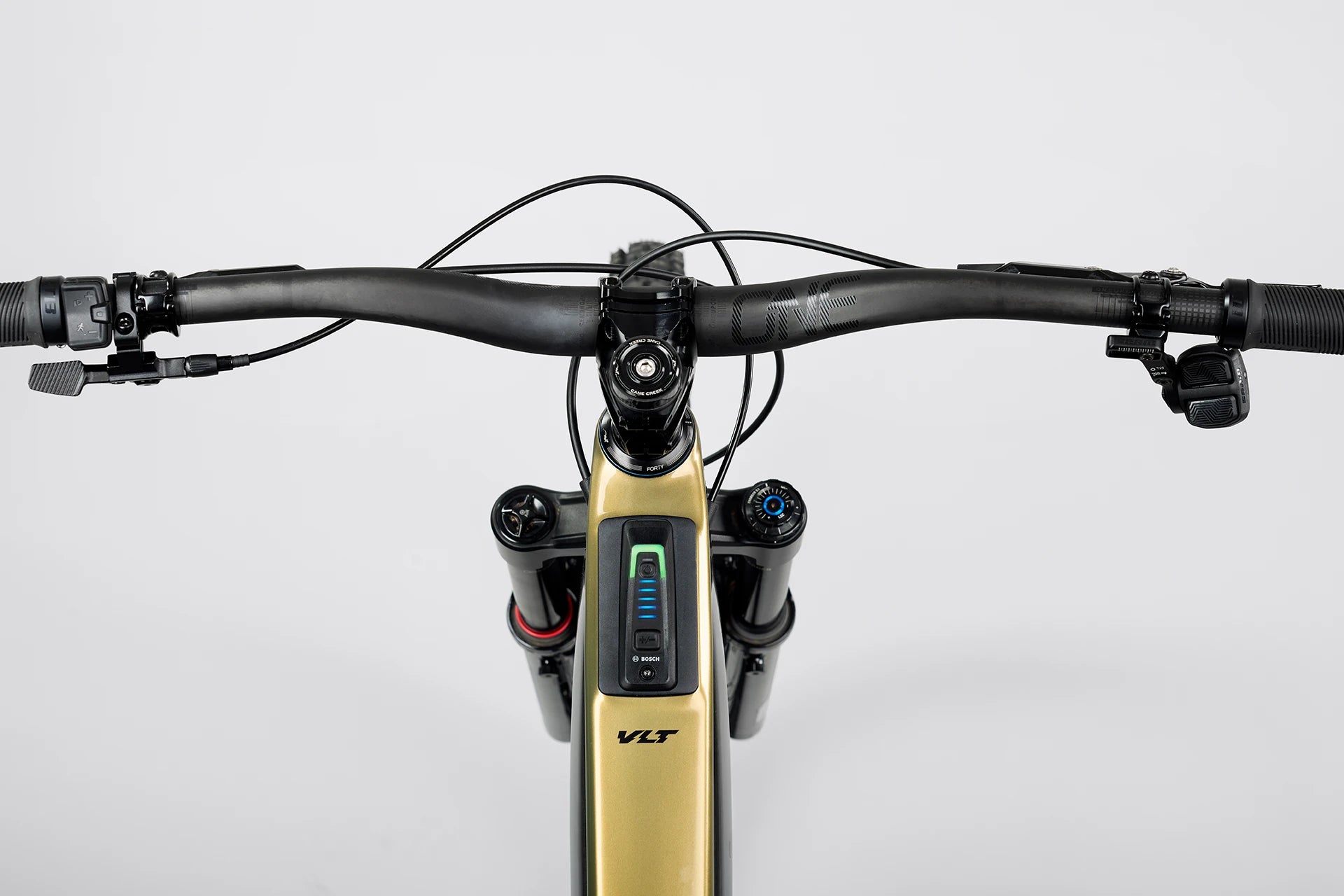

• Handlebar: OneUp Carbon, 800 mm width, 35 mm rise
• Stem: 6061 alloy, 40 mm length, 35 mm clamp
• Grips: WTB Wavelength, 130 mm
• Saddle: Fizik Terra Aidon X5

eBike System

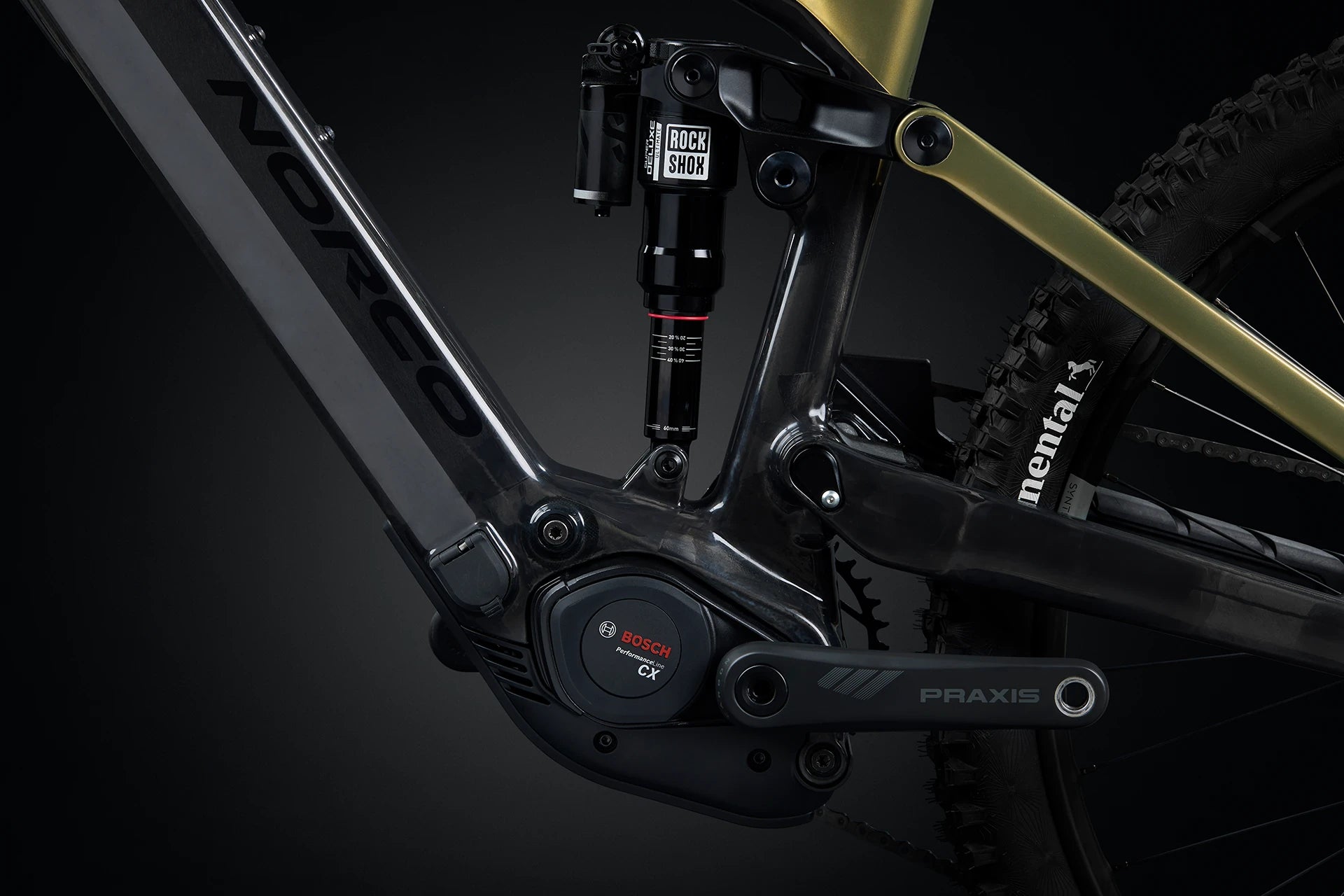

• Drive Unit: Bosch Performance Line CX, 85 Nm torque
• Battery: Bosch PowerTube 800 Wh
• Controller: Bosch BRC 3100 power button & BRC 3300 mini remote
• Sensor: Rim magnet speed sensor
