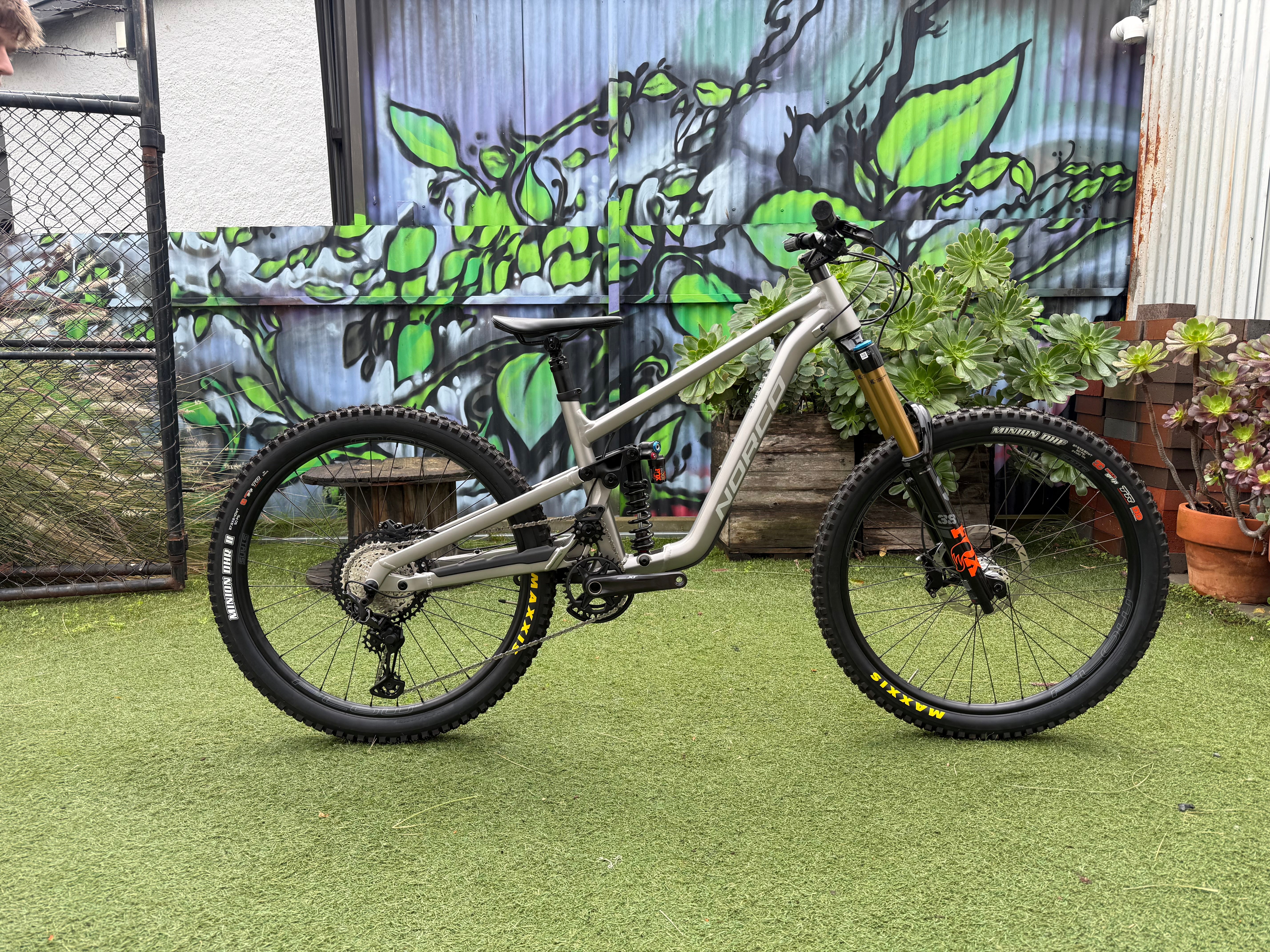

Norco A Shore 27.5 Raw/Polished Silver Custom
Build to rock and keeps on rollin’
Availability:
In stock
- $4,813.95
- $4,813.95
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$4,813.95
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xFrame design, hardware and component decisions have been made specifically to keep the Shore on the trail for longer - and when maintenance is necessary, it's easy and quick.
Specification
x| Category | Specification |
|---|---|
| Frameset | |
| Frame | Aluminum Freeride, 180mm Travel, Ride Aligned™ |

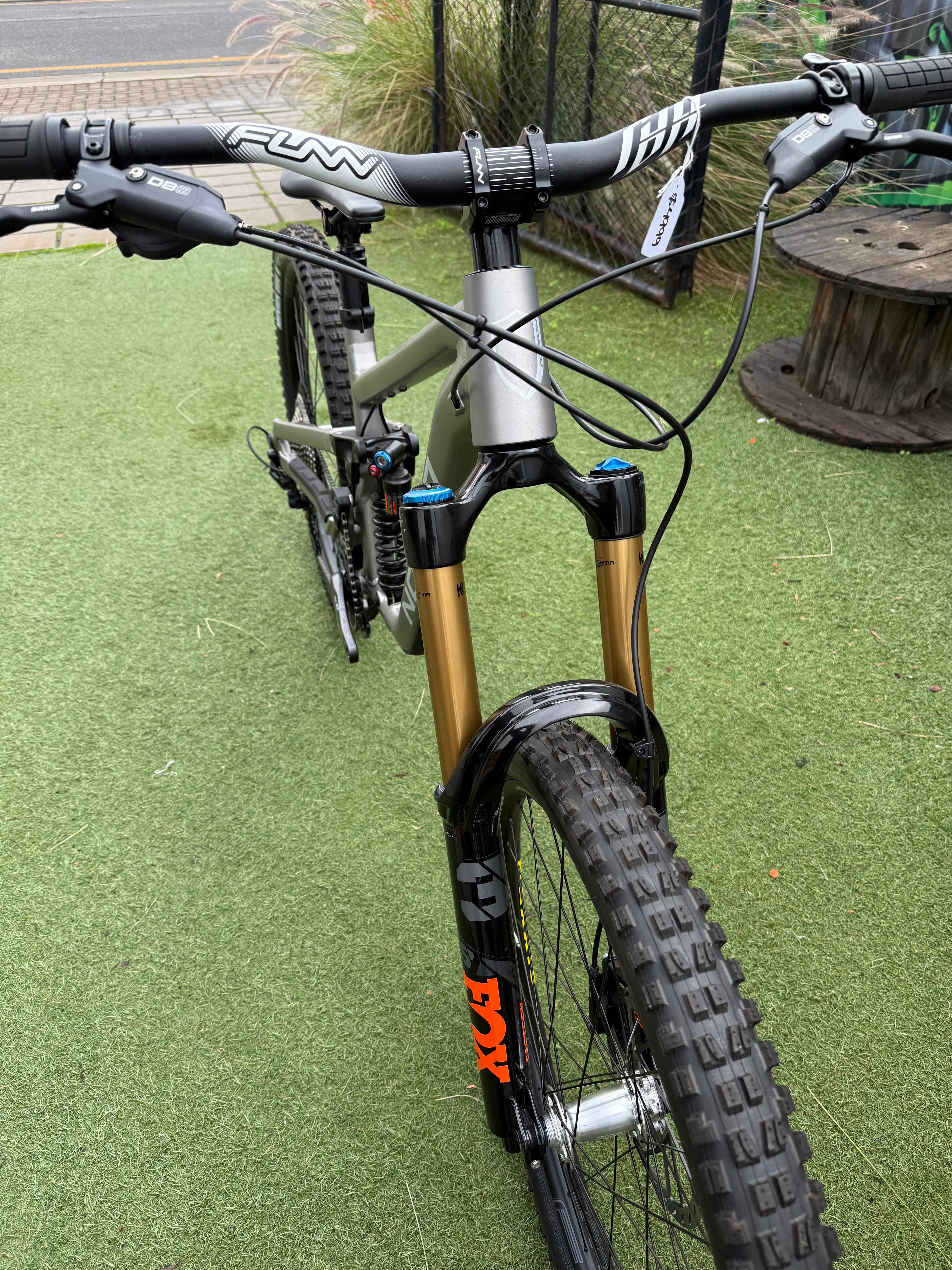

| Fork | Fox 38 Factory Grip 2 Kashima |

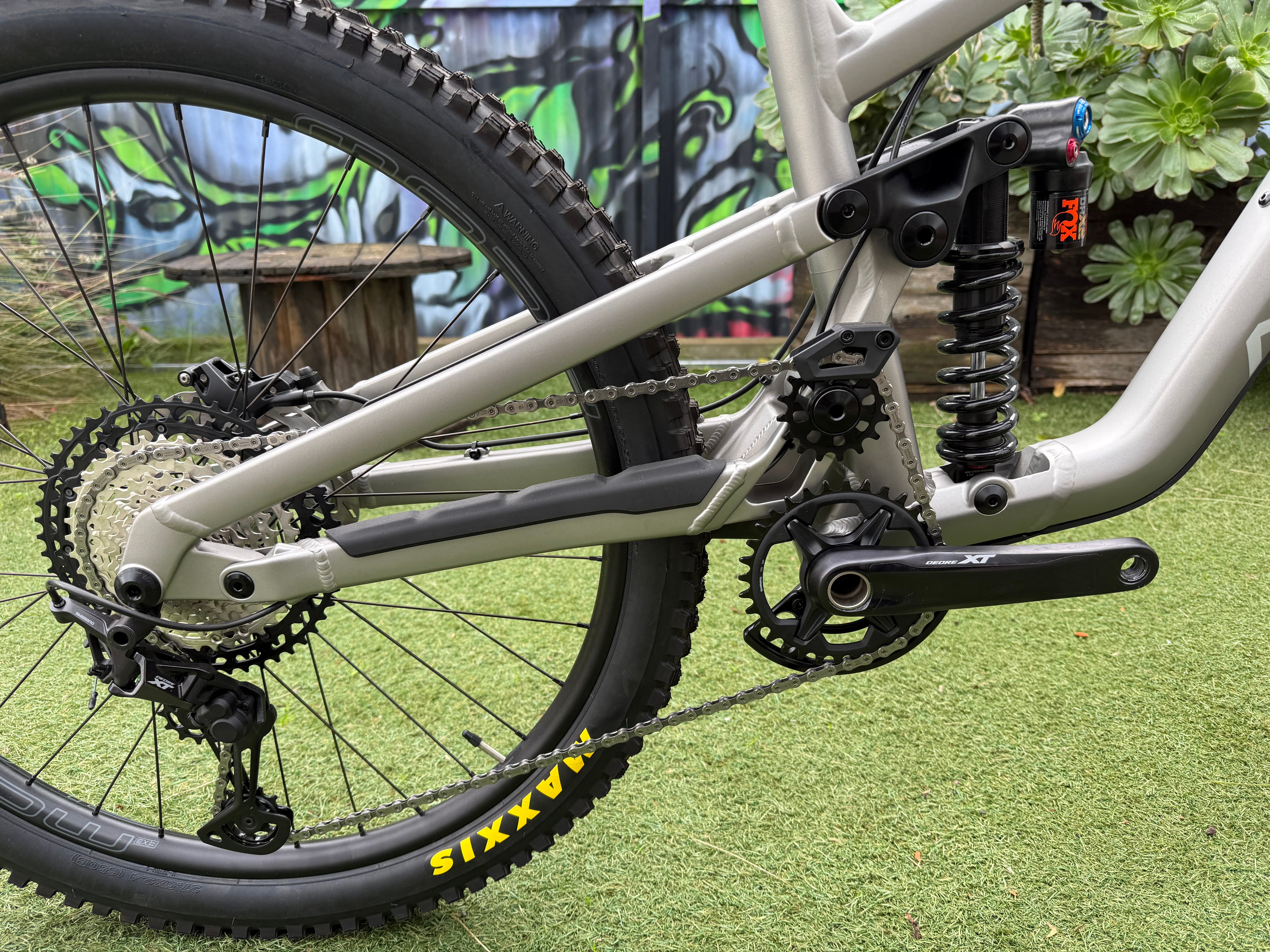

| Rear Shock | Fox Factory DHX2, Coil Spring, 225x70mm, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL) |
| Drivetrain | |
| Rear Shifter | Shimano XT |
| Rear Derailleur | Shimano XT 12s |
| Crankset | Shimano XT 170mm |
| Bottom Bracket | Praxis M30 BSA Threaded, 83mm |
| Cassette | Shimano XT 10-51T |
| Chain | Shimano XT |
| Brakes | |
| Front Brake | SRAM DB8 |
| Front Brake Rotor | SRAM HS2 200mm |
| Rear Brake | SRAM DB8 |
| Rear Brake Rotor | SRAM HS2 200mm |
| Components | |
| Handlebar | Funn Handlebar Kingpin |
| Stem | Funn Equalizer |
| Dropper | Pro Dropper Post Koryak |
| Headset | FSA No. 55/57-1 ZS, Sealed Bearing, Straight 1-1/8" (ZS56/28.6 | ZS56/40) |
| Saddle | Fizik |
| Grips | Supacaz |
| Wheels | |
| Front Hub | Novatech Sealed Bearing, 20x110mm Boost, 6-Bolt |
| Rear Hub | Novatech Sealed Bearing Silver |
| Rims | Stans Ex3 |
| Front Tire | Maxxis Minion DHF |
| Rear Tire | Maxxis Minion DHR II, 3C Maxx Grip DH, 27.5x2.4", Folding |
| Weight | |
| Weight | — |
| Weight Size | — |
Geometry
x
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" | |
| Travel (mm front/mm rear) |
180/180
|
||||
| Reach | 420 | 450 | 480 | 510 | |
| Stack | 598 | 611 | 625 | 638 | |
| HTA | Head Tube Angle |
63.0
|
|||
| OS | Fork Offset |
44
|
|||
| ST | Seat Tube Length | 365 | 395 | 410 | 455 |
| STA | Effective Seat Tube Angle | 77.0 | 77.3 | 77.7 | 78.0 |
| RC | Rear Centre Length | 435 | 440 | 445 | 450 |
| BB | Bottom Bracket Drop |
11
|
|||
| BBH | Bottom Bracket Height |
346
|
|||
| HTT | Horizontal Top Tube | 558 | 588 | 617 | 646 |
| WB | Wheelbase | 1203 | 1245 | 1286 | 1328 |
| SOH | Standover | 683 | 680 | 682 | 693 |
| HT | Head Tube Length | 100 | 115 | 130 | 145 |
| Trail |
131
|
||||
| Recommended Seatpost Drop | 150 | 170 |
200
|
||
| Maximum Post Insertion | 225 | 250 |
270
|
||
| Stem Length |
40
|
||||
| Crank Length |
170
|
||||
| Tire Size |
2.35" - 2.6"
|
||||
| Water Bottle Compatible | 1 x 620ml |
1 x 750ml
|
|||
