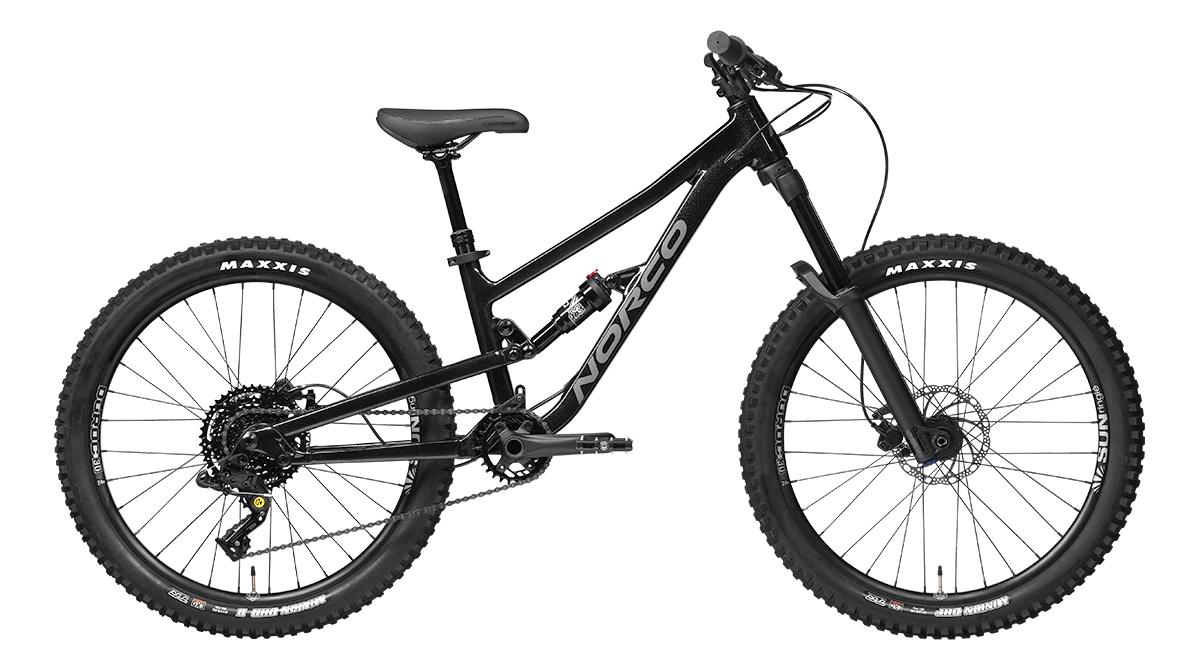

NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL
NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL

NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL

Fluid 2 FS 24 The Fluid 2 FS 24 features progressive handling, low standover, youth-tuned suspension and...
Availability: Out Of Stock
$2,347.95
$1,799.00
$2,347.95
Please hurry! Only 0 left in stock
Subtotal: $2,347.95
Order within the next hours minutes to receive it. Estimated delivery is between and .

Shipping

Free Delivery on orders over $100 excluding large and bulky items

NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL

NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL

$1,799.00 $2,347.95
NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL
NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL

NORCO FLUID FS 4.2 SINGLE - BLACK/CHARCOAL

$1,799.00 $2,347.95
Description
Description
x

Fluid 2 FS 24

The Fluid 2 FS 24 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 9-12-year-old riders below 90 pounds.



The Fluid FS 2 24 is an aggressive trail bike designed to tackle demanding trails.

The quality and build reflect everything we put into our full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.

Specification
Specification
x
Bike Specifications

Bike Specifications

Frameset

ComponentDescription
Frame6061 Alloy Frame, 120mm Travel, Tapered Head Tube, ISCG05 Mount
ForkManitou Machete JUNIT Comp 24", 145mm, 42mm Offset
Rear ShockX-Fusion 02 Pro R, 170x35mm

Drivetrain

ComponentDescription
Rear ShifterBox Four Multi
Rear DerailleurBox Four Wide
CranksetAlloy Two Piece, 28T Narrow Wide, 140mm
Bottom BracketBSA Threaded
CassetteBox Four, 11-42T, 8 Speed
ChainBox Four 8 Spd Chain

Brakes

ComponentDescription
Front BrakeTektro HD-J285 Hydraulic, Organic Pads
Front Brake RotorTektro 160mm
Rear BrakeTektro HD-J285 Hydraulic, Organic Pads
Rear Brake RotorTektro 160mm
Brake LeversTektro 2-Finger Jr.

Components

ComponentDescription
Handlebar6061 Aluminum, 660mm, 15mm Rise
Stem6061 Alloy, 35mm Length, 31.8mm Clamp
SeatpostTranzX YSP18B, 31.6mm, 100mm, Kid's Tune
HeadsetSealed Cartridge Bearing, Tapered
SaddleNorco Youth
GripsJr. Lock-On
PedalsVP-225 Jr. Flat

Wheels

ComponentDescription
Front HubBear Pawls 15x110mm Boost, 32H, 6 Bolt
Rear HubBear Pawls 12x148 Boost, 32H, HG, 6 Bolt
RimsStan's Flow K 24", 32H
Front TireMaxxis Minion DHF EXO/TR 2.4"
Rear TireMaxxis Minion DHR II EXO/TR 2.3"
Rear Hub Skewer-
Spokes/NipplesStainless, Black
Geometry
Geometry
x
Bike Geometry & Sizing

Bike Geometry & Sizing

SpecificationValue
Wheel Size24"
Travel (mm front/rear)145/120
Reach350
Stack531
Head Tube Angle (HTA)64.5°
Fork Offset (OS)40
Seat Tube Length (ST)305
Effective Seat Tube Angle (STA)75.0°
Rear Centre Length (RC)407
Bottom Bracket Rise/Drop (BB)-5
Bottom Bracket Height (BBH)305
Horizontal Top Tube (HTT)492
Wheelbase (WB)1052
Standover Height (SOH)569
Head Tube Length (HT)100
Trail106
Recommended Seatpost Drop100
Maximum Post Insertion160
Stem Length35
Crank Length152
Tire Size2.35" - 2.6"
