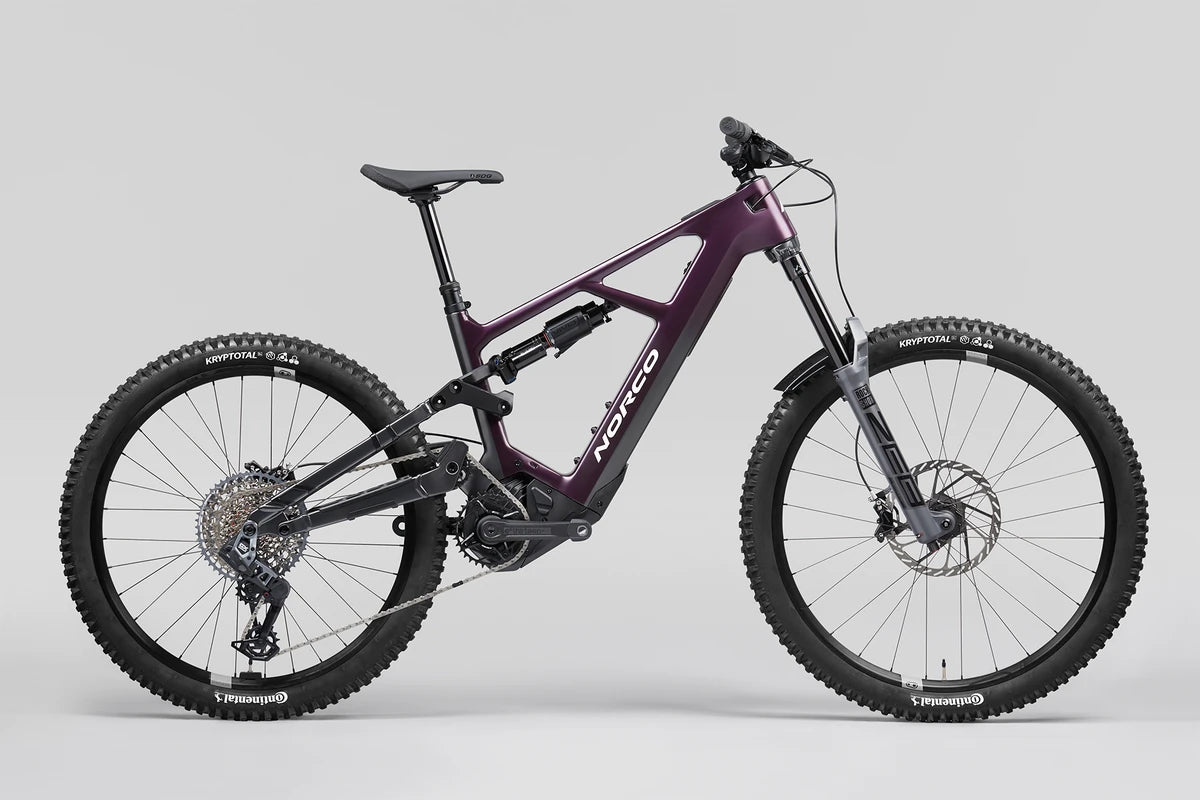

Norco Range 2024 VLT C1 Electric Mountain Bike Dual Suspension Purple
Meet the Range VLT C1 – Conquer Every Trail in Beast Mode The Range VLT C1 is...
Availability:
In stock
- $10,998.99
$13,999.00- $10,998.99
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$10,998.99
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xMeet the Range VLT C1 – Conquer Every Trail in Beast Mode
The Range VLT C1 is built for riders who take on rowdy terrain and push into absolute beast mode. With 180/170 mm of travel and an all-day battery, you can ride any trail—uphill or downhill—with unwavering confidence.
Engineered with Norco’s advanced VPS HP (Virtual Pivot Suspension | High Pivot) system, the Range VLT C1 delivers an increased rearward axle path for superior suspension performance in technical terrain. Paired with the Bosch Performance Line CX Smart System motor offering 85Nm of torque and a 750Wh long-distance battery, this e‑MTB sets a new benchmark in performance and reliability.
Key Details:
- Latest integrated Bosch e‑MTB technology
- Balanced, agile ride with maximum performance
- Size-specific geometry available in carbon and aluminum
- VPS HP Suspension Platform for enhanced control
- Bosch Performance Line CX motor with Smart System and 750Wh battery
- Control assist and range via the Bosch eBike Flow App
- Pro-level setup with the Ride Aligned™ Setup Guide
- No Other Way Limited Lifetime Warranty
The Loam Wolf Award
The Range VLT has been recognized as the Best EMTB For Downhill by The Loam Wolf in their 2024 EMTB review lineup. This long-travel, Bosch-powered e-bike sets a new standard in downhill performance, combining innovative design with proven technical prowess.
“It’s less of a departure (from the previous Range VLT), but more of a giant evolution.”
“The Norco Range VLT was a stand out performer on the descents in this year’s eMTB Shootout.”
Specification
xFrameset
- Frame: Carbon Front Triangle, Aluminum CS & SS, High Pivot Horst Suspension, 170mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
- Fork: RockShox Zeb Ultimate, 180mm Travel, E-MTB Rated, Fender Included
- Rear Shock: RockShox Vivid Select+, 230x65mm
Drivetrain
- Rear Shifter: SRAM AXS POD Controller, Discrete Clamp
- Rear Derailleur: SRAM GX Eagle AXS T-Type
- Crankset: e*Thirteen e*Plus 165mm
- Bottom Bracket: Bosch BES3 DU
- Cassette: SRAM 1275 T-Type 10-52T
- Chain: SRAM GX Eagle T-Type
Brakes
- Front Brake: SRAM Code RSC 4 Piston, Sintered Pads
- Front Brake Rotor: SRAM HS2 220mm
- Rear Brake: SRAM Code RSC 4 Piston, Sintered Pads
- Rear Brake Rotor: SRAM HS2 200mm
- Brake Levers: SRAM Code RSC
Components
- Handlebar: Butted 6061 Alloy, 800mm, 25mm Rise
- Stem: 6061 Alloy, 40mm Length, 35mm Clamp
- Seatpost: TranzX YSI08FL RAD+ Travel Adjust Dropper, 34.9mm, 125mm (S1), 150mm (S2),170mm (S3), 200mm (S4, S5)
- Headset: FSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
- Headset Spacer: 2 x 10mm, 1x 5mm
- Saddle: SDG Bel Air V3 Lux Alloy
- Grips: WTB Wavelength
- Seatpost Clamp: Norco Alloy Nutted Clamp, 38.5mm
Wheels
- Front Hub: Crank Brothers Synthesis E-Bike, 15x110mm Boost, 6 Bolt
- Rear Hub: Crank Brothers Synthesis E-Bike, 12x148mm, XD, 6 Bolt
- Rims: Crank Brothers Synthesis E-Bike, 32H, 27.5"/29"
- Front Tire: Continental Kryptotal-F Enduro 29" x 2.4", Foldable
- Rear Tire: Continental Kryptotal Enduro 27.5" x 2.4", Foldable
- Rear Hub Skewer: Axle Assembly. L174, TL13, M12x1.0
- Front Hub Skewer: RockShox Maxle Stealth 110x15
- Spokes/Nipples: Crank Brothers Synthesis
Electric Components
- Drive Unit: Bosch Performance Line CX, 85Nm
- Battery: Bosch PowerTube 750Wh
Additional Info
- Feature 1: Bosch Smart System Rim Magnet
- Feature 2: Bosch PowerMore 250 Range Extender* (Not Included) * Compatible with S3-5
Geometry
x| Specification | Size 5 | Size 4 | Size 3 | Size 2 | Size 1 |
|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (Front/Rear) (mm) | 180/170 | ||||
| Reach (mm) | 517.5 | 492.5 | 467.5 | 442.5 | 417.5 |
| Stack (mm) | 657 | 648 | 639 | 630 | 621 |
| Head Tube Angle (°) | 63 | ||||
| Fork Offset (mm) | 44 | ||||
| Seat Tube Length (mm) | 475 | 445 | 415 | 395 | 385 |
| Effective Seat Tube Angle (°) | 77.5 | 77.25 | 77 | 76.75 | 76.5 |
| Rear Centre Length (mm) | 444 | 440 | 436 | 432 | 428 |
| Bottom Bracket Drop (Front/Rear) (mm) | 19/2 | ||||
| Bottom Bracket Height (mm) | 359 | ||||
| Horizontal Top Tube (mm) | 663 | 639 | 615 | 591 | 557 |
| Wheelbase (mm) | 1336 | 1302 | 1269 | 1235 | 1202 |
| Standover Height (mm) | 756 | 745 | 734 | 726 | 720 |
| Head Tube Length (mm) | 140 | 130 | 120 | 110 | 100 |
| Trail (mm) | 143 | ||||
| Recommended Seatpost Drop (mm) | 200 | 170 | 150 | 125 | 125 |
| Maximum Post Insertion (mm) | 325 | 300 | 275 | 250 | 250 |
| Stem Length (mm) | 40 | ||||
| Crank Length (mm) | 165 | ||||
| Tire Size | 2.35" – 2.6" | ||||
| Water Bottle Compatible | 1 x 750 mL | ||||
