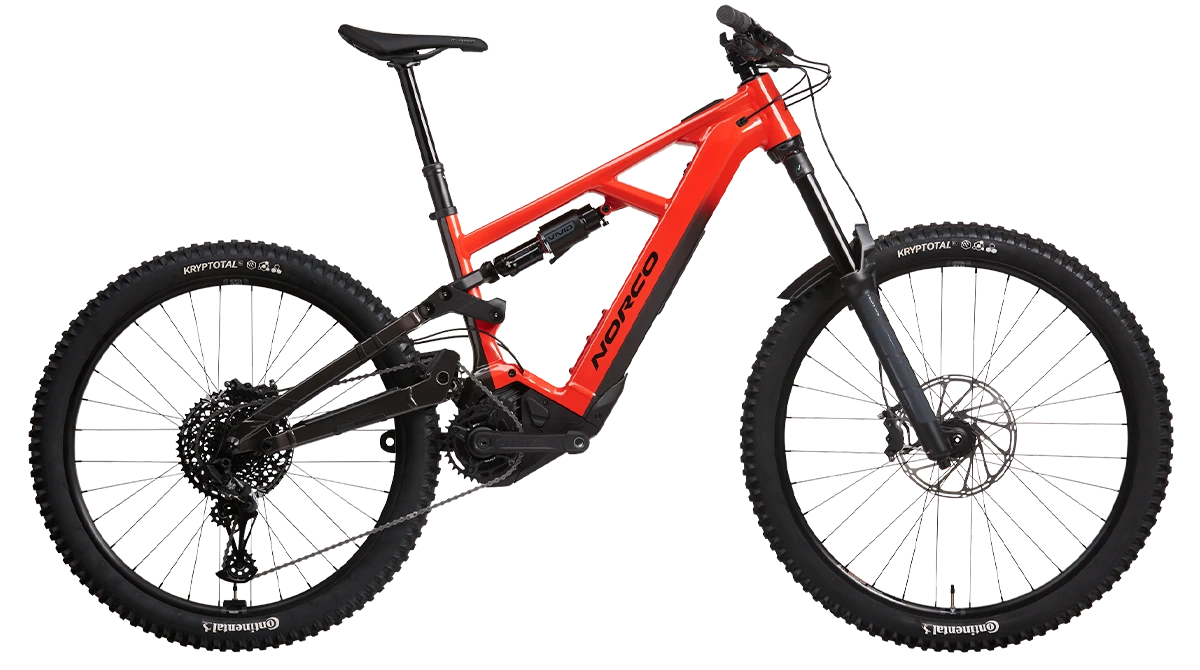

Norco Range 2024 VLT A1 Electric Mountain Bike Dual Suspension Red Size 3
Range VLT A1 – Unleash Beast Mode on Every Trail Meet the Range VLT A1, designed for...
Availability:
Out Of Stock
- $6,999.00
$11,999.00- $6,999.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$6,999.00
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xRange VLT A1 – Unleash Beast Mode on Every Trail
Meet the Range VLT A1, designed for riders who tackle rowdy terrain and push their limits. With 180/170 mm of travel and an all-day battery, you can ride every trail—uphill or downhill—with unwavering confidence.
Advanced e‑MTB Technology
Built on Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) platform, the Range VLT A1 delivers an enhanced rearward axle path for improved suspension performance on technical terrain. Powered by the Bosch Performance Line CX Smart System motor with 85Nm of torque and a 750Wh long-distance battery, this e‑MTB is engineered to go the distance and descend with absolute confidence.
Key Features:
- Integrated Bosch e‑MTB technology for maximum ride performance
- Balanced, agile ride with size-specific geometry available in carbon and aluminum
- VPSHP Suspension Platform for superior control on technical trails
- Bosch Performance Line CX motor with 85Nm torque paired with a 750Wh battery
- Control assist and range via the Bosch eBike Flow App
- Professional setup with the Ride Aligned™ Setup Guide
- No Other Way Limited Lifetime Warranty for peace of mind
Embrace the future of e‑MTB performance with the Range VLT A1—engineered to elevate your ride, no matter where adventure takes you.
The Loam Wolf Award
The Range VLT has been recognized as the Best EMTB For Downhill by The Loam Wolf in their 2024 EMTB review lineup. This long-travel, Bosch-powered e-bike sets a new standard in downhill performance, combining innovative design with proven technical prowess.
“It’s less of a departure (from the previous Range VLT), but more of a giant evolution.”
“The Norco Range VLT was a stand out performer on the descents in this year’s eMTB Shootout.”
Specification
xFrameset
- Frame: Butted Aluminum, High Pivot Horst Suspension, 170mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
- Fork: RockShox Zeb Select, 180mm Travel, E-MTB Rated, Fender Included
- Rear Shock: RockShox Vivid Base, 230x65mm
Drivetrain
- Rear Shifter: SRAM NX Eagle MMX
- Rear Derailleur: SRAM NX Eagle
- Crankset: e*Thirteen e*Plus 165mm
- Bottom Bracket: Bosch BES3 DU
- Cassette: SRAM PG1210 Eagle 11-50T
- Chain: SRAM SX Eagle
Brakes
- Front Brake: SRAM DB8 4 Piston, Sintered Pads
- Front Brake Rotor: SRAM Centerline 220mm
- Rear Brake: SRAM DB8 4 Piston, Sintered Pads
- Rear Brake Rotor: SRAM Centerline 200mm
- Brake Levers: SRAM DB8
Components
- Handlebar: Butted 6061 Alloy, 800mm, 25mm Rise
- Stem: 6061 Alloy, 40mm Length, 35mm Clamp
- Seatpost: TranzX YS134 Dropper, 34.9mm 150mm (S1), 170mm (S2, S3), 200mm (S4, S5)
- Headset: FSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
- Headset Spacer: 2 x 10mm, 1x 5mm
- Saddle: SDG Bel Air V3 Lux Alloy
- Grips: WTB Wavelength
- Seatpost Clamp: Norco Alloy Nutted Clamp, 38.5mm
Wheels
- Front Hub: Bear Pawls BMB-013, 15x110mm Boost, 6 Bolt
- Rear Hub: Bear Pawls BMB-008, 12x148mm Boost, HG, 6 Bolt
- Rims: WTB HTZ Trail 32H, 27.5"/29"
- Front Tire: Continental Kryptotal-F Enduro 29" x 2.4", Foldable
- Rear Tire: Continental Kryptotal Enduro 27.5" x 2.4", Foldable
- Rear Hub Skewer: Axle Assembly, L174, TL13 M12x1.0
- Front Hub Skewer: RockShox Maxle Stealth 110x15
- Spokes/Nipples: Sapim Sprint Butted Stainless Black
Electric Components
- Drive Unit: Bosch Performance Line CX, 85Nm
- Battery: Bosch PowerTube 750Wh
Additional Info
- Feature 1: Bosch Smart System Rim Magnet
- Feature 2: Bosch PowerMore 250 Range Extender* (Not Included) * Compatible with S3-5
Geometry
x| Specification | Size 5 | Size 4 | Size 3 | Size 2 | Size 1 |
|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (Front/Rear) (mm) | 180/170 | ||||
| Reach (mm) | 517.5 | 492.5 | 467.5 | 442.5 | 417.5 |
| Stack (mm) | 657 | 648 | 639 | 630 | 621 |
| Head Tube Angle (°) | 63 | ||||
| Fork Offset (mm) | 44 | ||||
| Seat Tube Length (mm) | 475 | 445 | 415 | 395 | 385 |
| Effective Seat Tube Angle (°) | 77.5 | 77.25 | 77 | 76.75 | 76.5 |
| Rear Centre Length (mm) | 444 | 440 | 436 | 432 | 428 |
| Bottom Bracket Drop (Front/Rear) (mm) | 19/2 | ||||
| Bottom Bracket Height (mm) | 359 | ||||
| Horizontal Top Tube (mm) | 663 | 639 | 615 | 591 | 557 |
| Wheelbase (mm) | 1336 | 1302 | 1269 | 1235 | 1202 |
| Standover Height (mm) | 756 | 745 | 734 | 726 | 720 |
| Head Tube Length (mm) | 140 | 130 | 120 | 110 | 100 |
| Trail (mm) | 143 | ||||
| Recommended Seatpost Drop (mm) | 200 | 170 | 150 | 125 | 125 |
| Maximum Post Insertion (mm) | 325 | 300 | 275 | 250 | 250 |
| Stem Length (mm) | 40 | ||||
| Crank Length (mm) | 165 | ||||
| Tire Size | 2.35" – 2.6" | ||||
| Water Bottle Compatible | 1 x 750 mL | ||||
