Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing?...
Availability: In stock
$1,599.00
$2,199.00
$1,599.00
Please hurry! Only 1 left in stock
Size: Size 3
Subtotal: $1,599.00
Order within the next hours minutes to receive it. Estimated delivery is between and .

Shipping

Free Delivery on orders over $100 excluding large and bulky items

Norco Search Cues

Norco Search Cues

$2,199.00 $1,599.00
Norco Search Cues
Norco Search Cues
Norco Search Cues
Norco Search Cues
Norco Search Cues

Norco Search Cues

$2,199.00 $1,599.00
Size: Size 3
Description
Description
x
    • Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A CUES is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 2x10 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.
Specification
Specification
x

Frameset

Frame Search Butted Aluminum w/Smooth Welds

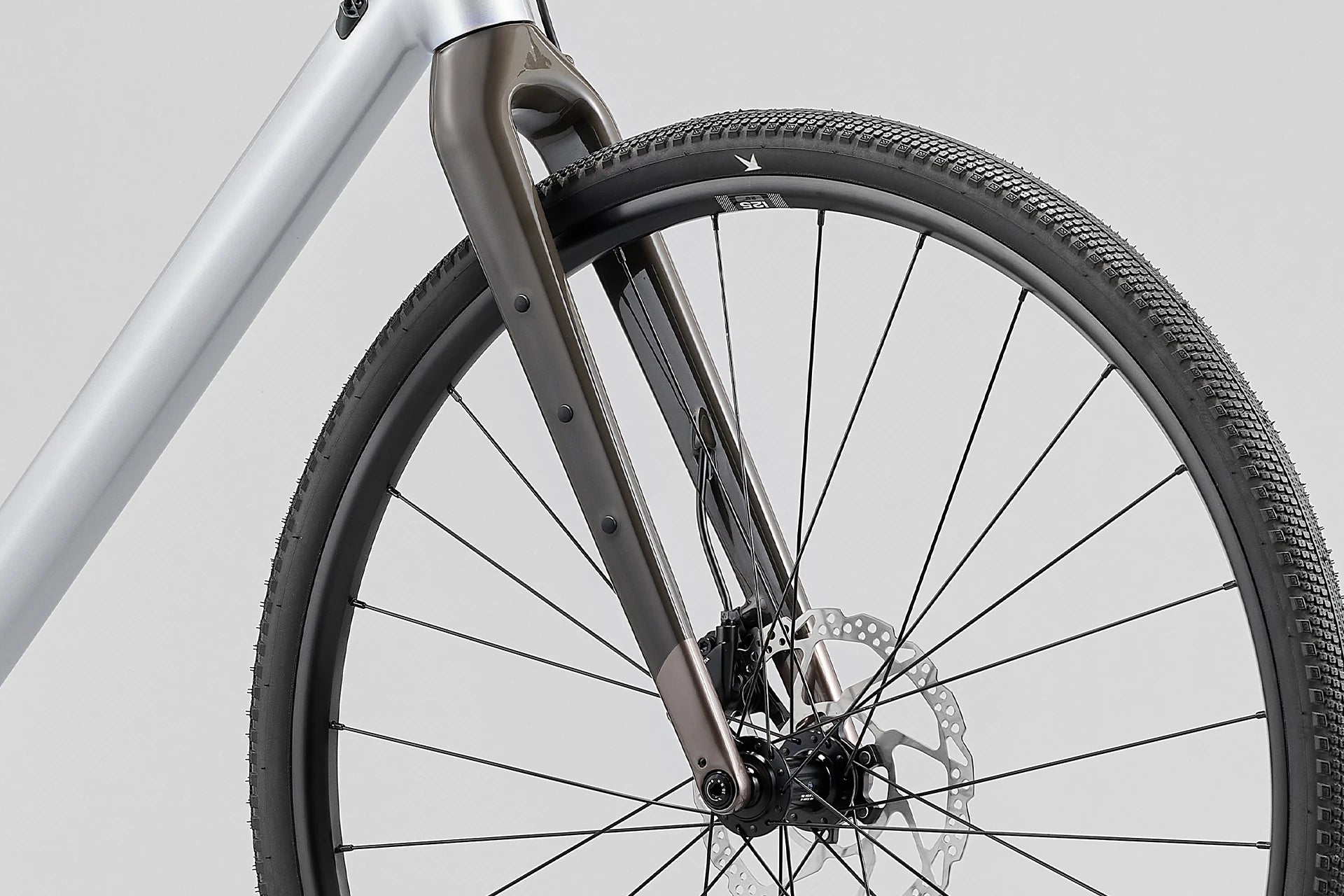

Fork Search Carbon, 51mm Offset, 12x100mm TA

Drivetrain

Component Specification
Rear ShifterShimano CUES ST-U6030, 11sp
Rear DerailleurShimano CUES RD-U6020, Shadow, 10sp
Front ShifterShimano CUES ST-U6030, 2sp
Front DerailleurShimano CUES FD-U6030, 9/10sp, Down Swing
CranksetShimano CUES FC-U6030, 46-32T, 170mm
Bottom BracketShimano Cartridge Bearing, 68mm BSA
CassetteShimano LG-400, 11-39T, 10sp
ChainKMC XGlide

Brakes

Component Specification
Front BrakeShimano CUES BR-U6030, Resin Pads
Front Brake RotorShimano SM-RT54 - 160mm, C-lock
Rear BrakeShimano CUES BR-U6030, Resin Pads
Rear Brake RotorShimano SM-RT54 - 160mm, C-lock
Brake LeversShimano CUES ST-U6030

Components

Component Specification
Handlebar Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
Stem Norco SL Alloy 70mm Length, 31.8mm Clamp
Seatpost Norco Alloy, 27.2mm, 12Deg Offset, 300mm length
Headset FSA Integrated Sealed Bearings No. 42; Tapered 1-1/8" - 1.5" (IS42/28.6 | IS52/40)
Saddle Selle Royale SRX Gravel, 148mm
Grips Griptacular Shockproof Tape 3mm
Seatpost Clamp Norco Aluminum, 31.8mm ID

Wheels

Component Specification
Front Hub Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
Rear Hub Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H
Rims WTB ST i25 2.0, 28h, 25mm ID
Front Tire Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Rear Tire Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Spokes/Nipples Sapim Leader 2.0mm - Black w/Black Brass Nipples
Valves WTB TCS Tubeless Valve, Brass
Sealant WTB TCS Tubeless Tire Sealant, 8oz/236ml
Rim Tape WTB TCS 2.0 Solid Strip
Geometry
Geometry
x
Geometry - Search Aluminum

Geometry

Search Aluminum

Frame Geometry (in mm unless noted)
Size 5 4 3 2 1
Wheel Size700c
Reach445430415400385
Stack634611587564554
Head Tube Angle (HTA)69.5°
Fork Offset (OS)51
Seat Tube Length (ST)580545510475440
Effective Seat Tube Angle (STA)73.5°73.75°74°74.25°74.5°
Rear Centre Length (RC)430427.5425
Bottom Bracket Drop (BB)75
Bottom Bracket Height (BBH)285
Horizontal Top Tube (HTT)633608583559539
Wheelbase (WB)11321108108210561037
Standover Height (SOH)814781748715682
Head Tube Length (HT)185160135110100
Trail80
Maximum Post Insertion345310240 / 210
Stem Length70
Crank Length172.5170 / 165
Tire Size40c – 50c
Water Bottle Compatible3 × 750 mL
