Norco Search XR A1 Gravel Bike Orange/Grey
Norco Search XR A1 Gravel Bike – Built for Adventure & Speed The Norco Search XR A1...
Availability:
In stock
- $2,238.99
$2,799.00- $2,238.99
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$2,238.99
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xNorco Search XR A1 Gravel Bike – Built for Adventure & Speed
The Norco Search XR A1 Gravel Bike in Orange/Grey is engineered for off-road exploration and high-speed performance. Designed with drop bars and a geometry that perfectly balances off-road capability with comfort, this bike is ready for adventure.
Key Features
- Frame & Geometry: X6 aluminium frame with internal cable routing, featuring a longer, slacker geometry for enhanced off-road performance and comfort.
- Optimized Ride: Thinned seat tube and top tube, bent chain stays, and an optimized fork reduce fatigue and maximize comfort.
- Stiff & Responsive: Oversize downtube and chainstays, mid-modulus carbon fork, and front & rear thru-axles provide lateral stiffness for maximum power transfer and control on rough terrain.
- Drivetrain & Brakes: Gravel-specific 2x11 speed Shimano GRX drivetrain offers crisp, reliable shifting, while Shimano GRX 400 Hydraulic Disc Brakes deliver confidence-inspiring control in all conditions.
- Wheels & Saddle: Light and durable WTB ST i23 2.0 rims and the comfortable, high-performance Selle Royal Vivo saddle complete the package.
Every component of the Norco Search XR A1 is meticulously chosen to create a versatile ride that excels on gravel, delivering high-quality performance from top to bottom. Get ready to push your limits and explore new horizons with a bike built to perform.
Size Medium 53
Specification
xHigh-Performance MTB Build – Complete Component Specifications
Experience the ultimate in performance and reliability with this meticulously engineered gravel bike. Every component is chosen to deliver unmatched power, control, and durability across all terrains.
Frame & Fork
- Frame: Butted Aluminum with Smooth Welds
- Fork: Full Carbon, Through Axle
Headset & Handlebars
- Headset: Sealed Cartridge Bearing
- Headset Spacer: 3x10mm Aluminum
- Grips: Griptacular Shockproof Tape

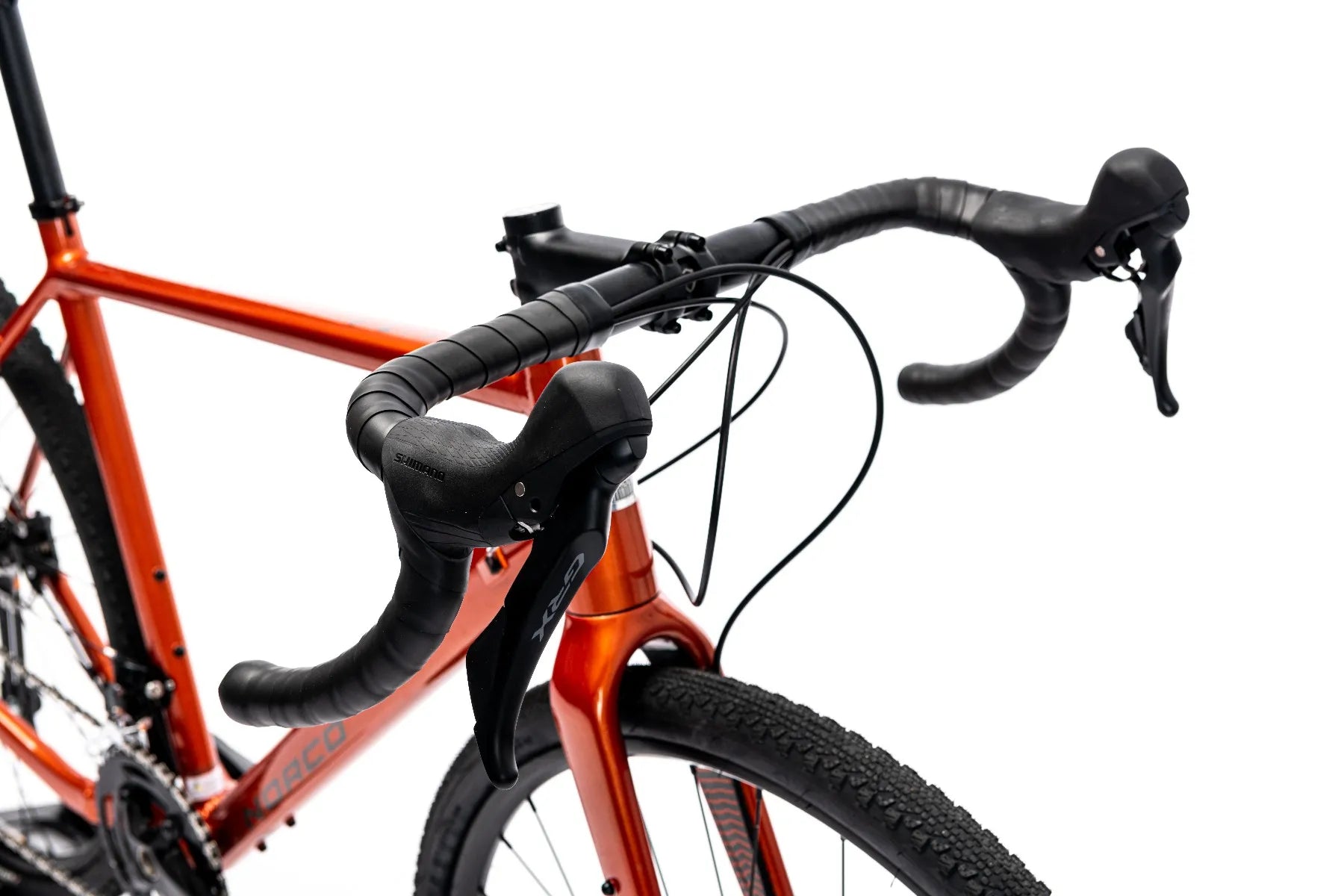

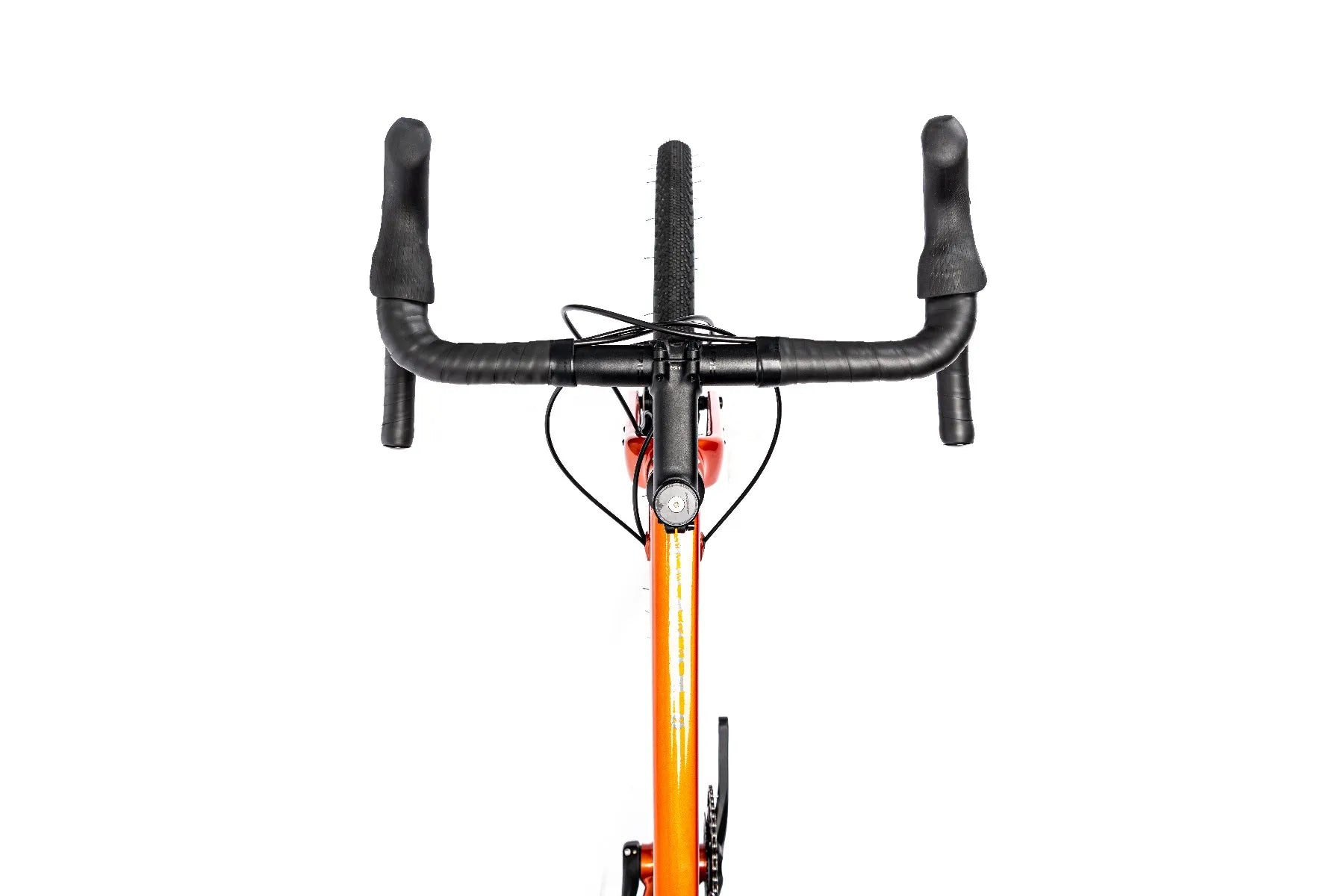

- Handlebar: Norco Super Flare Aluminum, 16° Flare; Available in: 40cm (49), 42cm (52), 44cm (55), 46cm (58, 61)
Stem & Seat
- Stem: Norco SL Aluminum, 31.8mm Clamp; Options: 70mm (49), 80mm (52), 90mm (55), 100mm (58), 110mm (61)
- Seatpost: Aluminum, 27.2mm
- Seatpost Clamp: Aluminum, 31.8mm
- Saddle: Selle Royal Gravel with Cutout
Braking System
- Front Brake: Shimano GRX BR-RX400 with Resin Pads

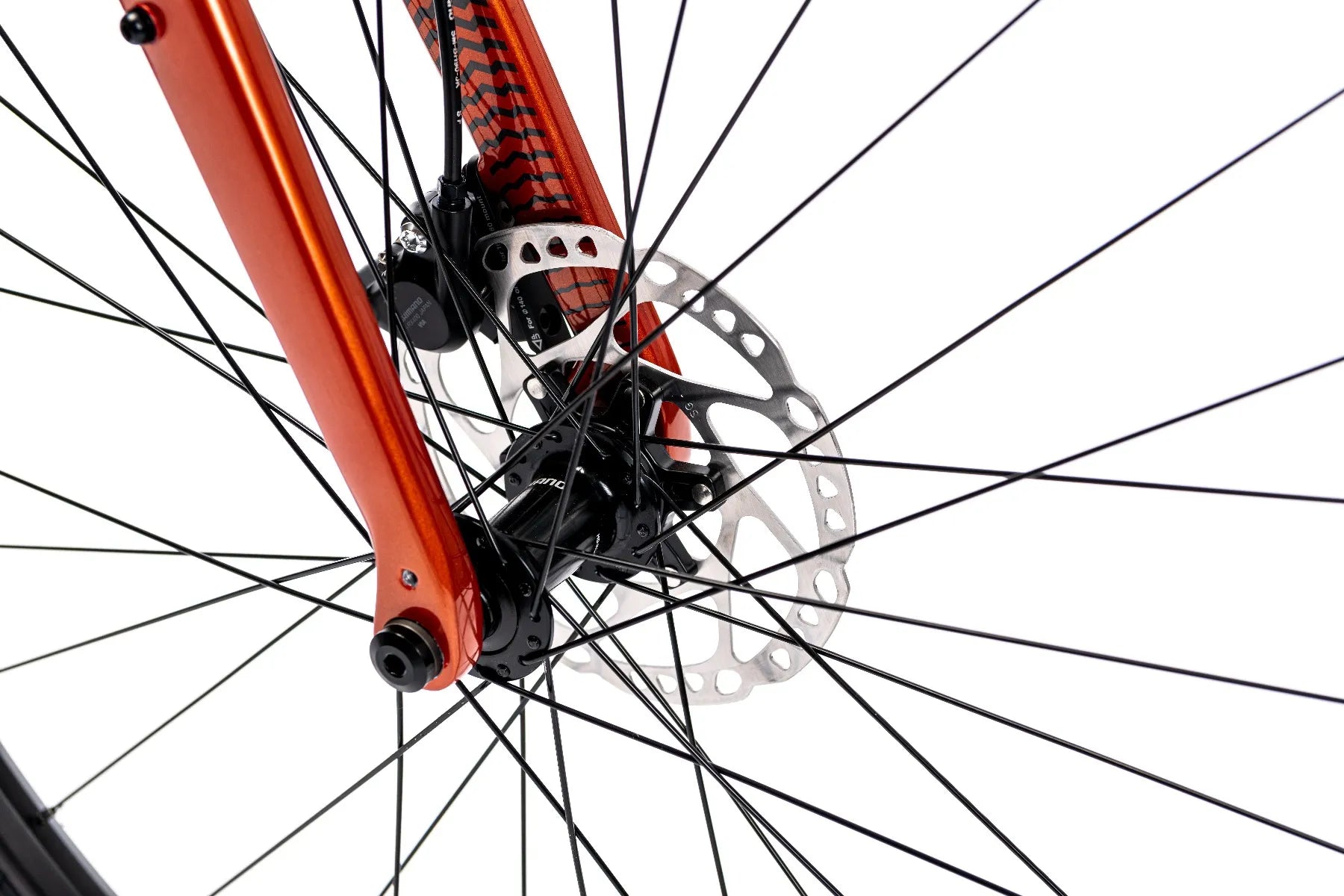

- Front Brake Rotor: Shimano SM-RT66, 160mm
- Rear Brake: Shimano GRX BR-RX400 with Resin Pads
- Rear Brake Rotor: Shimano SM-RT66, 160mm
- Brake Levers: Shimano GRX RX600
Drivetrain
- Front Derailleur: Shimano GRX FD-RX810
- Rear Derailleur: Shimano GRX RD-RX810 Shadow RD+

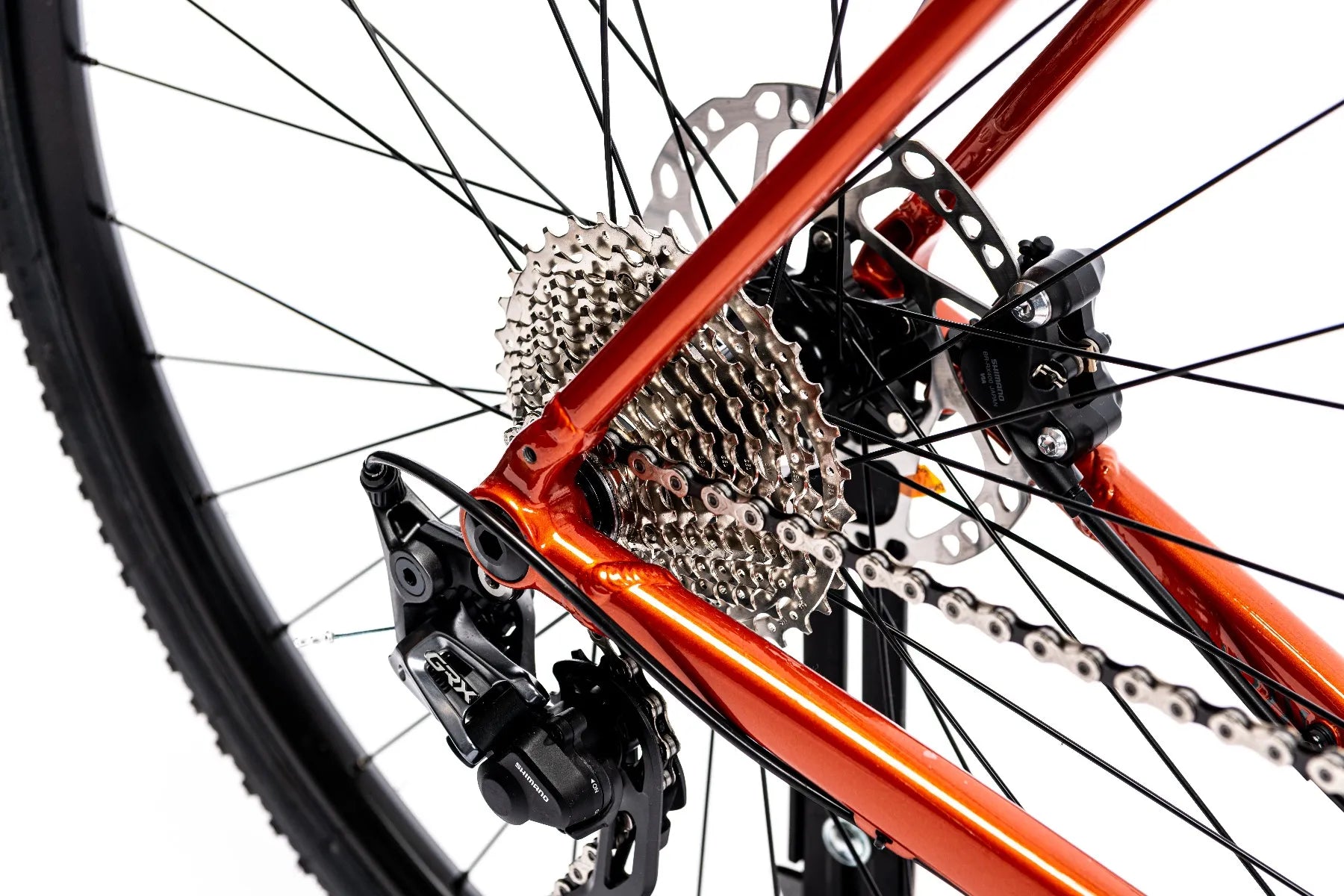

- Cassette: Shimano 105 CS-R7000, 11-34T, 11-Speed
- Chain: KMC X11

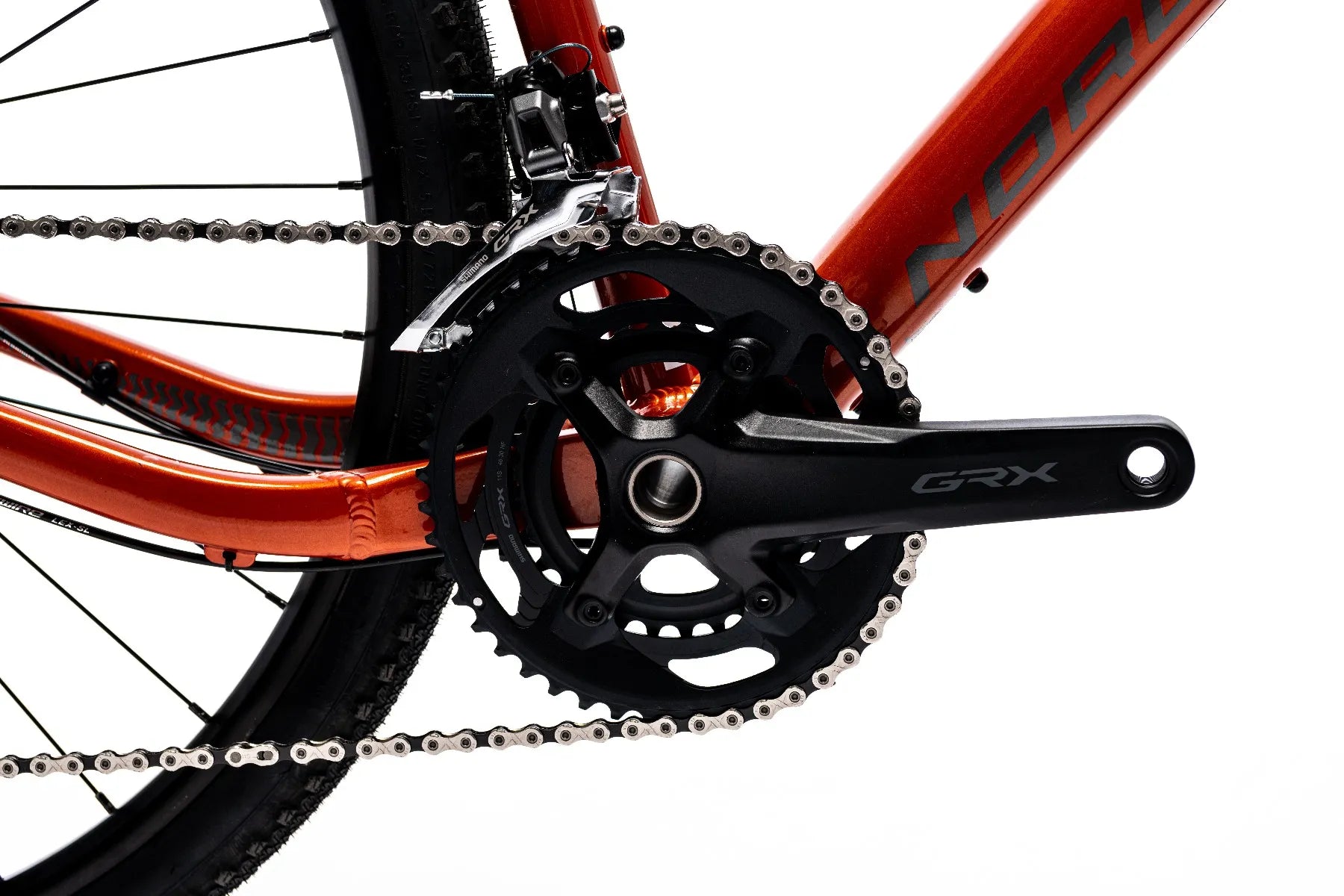

- Crankset: FSA Omega Modular 46/30 AGX+ Options: 170mm (49, 52cm), 172.5mm (55, 58cm), 175mm (61cm)
- Bottom Bracket: FSA BB386EVO for BSA
- Front Shifter: Shimano GRX ST-RX600
- Rear Shifter: Shimano GRX ST-RX600
Wheelset
- Front Hub: Bear Pawls Sealed Bearing, 12x100mm, 6-Bolt
- Front Hub Skewer: Tooled 12x100mm Thru-Axle
- Rear Hub: Bear Pawls Sealed Bearing, 12x142mm, HG, 6-Bolt
- Rear Hub Skewer: Tooled 12x142mm Thru-Axle
- Spokes/Nipples: Sapim Leader, Black
- Rims: Alloy Pinned, 28H, 23mm ID
Tires & Accessories
- Front Tire: Vittoria Terreno Dry 700x40c Graphene 2.0
- Rear Tire: Vittoria Terreno Dry 700x40c Graphene 2.0
- Valves: Standard
- Rim Tape: Nylon
Geometry
x| Parameter | 45.5 | 48 | 50.5 | 53 | 55.5 | 58 | 60.5 |
|---|---|---|---|---|---|---|---|
| Wheel Size | 650b | 650b | 700c | 700c | 700c | 700c | 700c |
| Reach | 355 | 362 | 376 | 383 | 390 | 399 | 407 |
| Stack | 504 | 524 | 547 | 563 | 580 | 600 | 620 |
| HTA (Head Tube Angle) | 70.75 | 71.00 | 71.50 | 71.75 | 72.00 | 72.25 | |
| OS (Fork Offset) | 49 | ||||||
| ST (Seat Tube Length) | 410 | 435 | 460 | 490 | 520 | 550 | 580 |
| STA (Effective Seat Tube Angle) | 74.00 | 73.75 | 74.25 | 73.75 | 73.25 | 73.00 | 72.75 |
| RC (Rear Centre Length) | 410.0 | 422.5 | 425.0 | ||||
| BB (Bottom Bracket Rise/Drop) | -57.0 | -75.0 | -72.5 | -70.0 | |||
| BBH (Bottom Bracket Height) | 275 | 279 | 282 | 284 | |||
| HTT (Horizontal Top Tube) | 500 | 515 | 530 | 548 | 565 | 583 | 600 |
| WB (Wheelbase) | 970 | 981 | 1006 | 1015 | 1028 | 1042 | 1054 |
| SOH (Standover) | 635 | 658 | 687 | 717 | 744 | 775 | 802 |
| HT (Head Tube Length) | 110.0 | 130.0 | 120.0 | 137.5 | 155.0 | 177.5 | 197.5 |
| Trail | 64 | 62 | 70 | 67 | 65 | 63 | 62 |
| Stem Length | 80 | 90 | 100 | 110 | |||
| Crank Length | 165.0 | 170.0 | 172.5 | 175.0 | |||
| Max 700c Tire Size (* w/ Fender) | 40 (*35) | ||||||
| Max 650b Tire Size (* w/ Fender) | 47 (*38) | 51 (*48) | |||||
| Max 26" Tire Size (* w/ Fender) | 2.1" (*2.1") |
