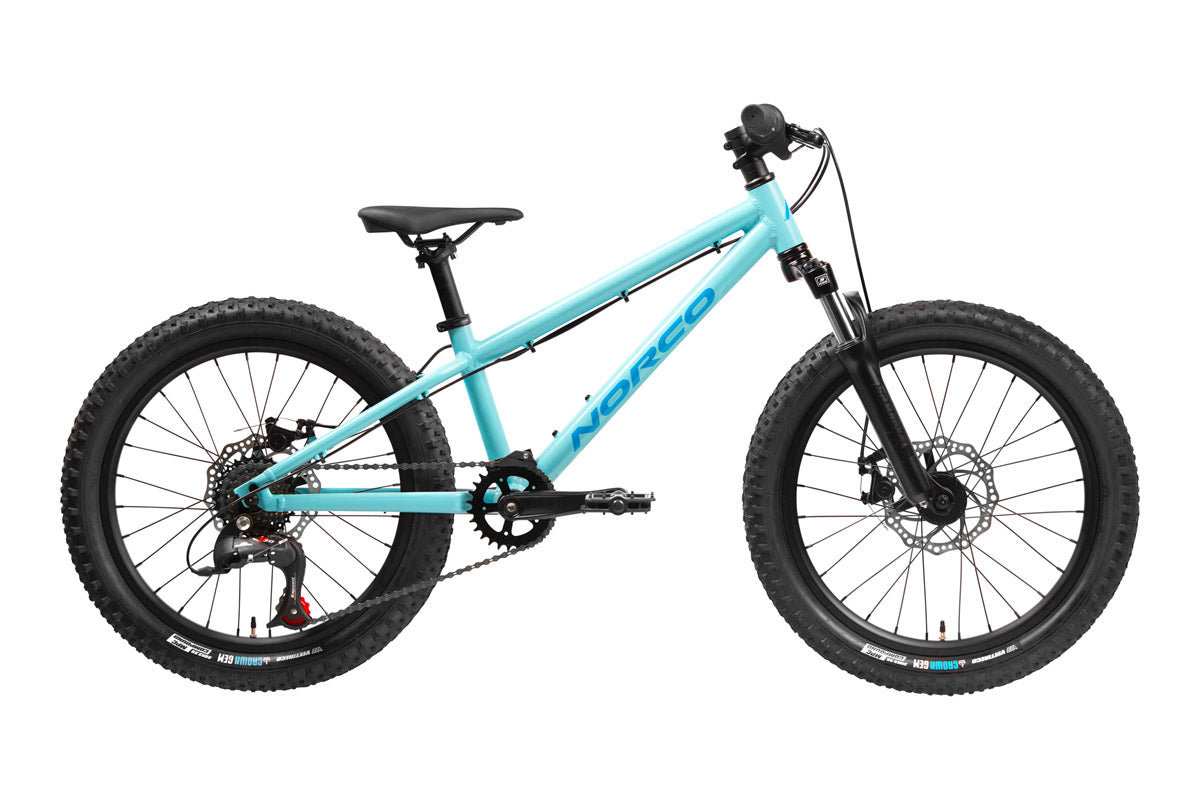

Norco Fluid HT 2022 20.2" Youth Mountain Bike Blue
The Fluid HT 20.2 provides evolved fit, handling and ride quality that’ll elevate every young riders’ Trail...
Availability:
Out Of Stock
- $658.99
$799.00- $658.99
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$658.99
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xThe Fluid HT 20.2 provides evolved fit, handling and ride quality that’ll elevate every young riders’ Trail experience.
FEATURES
- Engineered for real rides and unlimited potential.
- Always find the right gear with quality components.
- Stopping power with minimal effort for maximum control.
- Cable routing balances keeping tidy and maintenance.
- Created to meet the needs of evolving riders.
Specification
xFRAMESET
|
FRAME |
Aluminum HT |
|
FORK |
SR Suntour XCT Coil, 63mm Travel, Soft Spring, Adjustable Preload |
DRIVETRAIN
|
REAR SHIFTER |
SunRace Twist Shift |
|
REAR DERAILLEUR |
SunRace RDM36 |
|
CRANKSET |
Alloy 3 Piece, 28T Narrow Wide, 140mm |
|
BOTTOM BRACKET |
Sealed Bearing Square Taper |
|
CASSETTE |
SunRace MF, 14-28T, 6 Speed |
|
CHAIN |
KMC Z6 |
BRAKES
|
FRONT BRAKE |
Mechanical Disc |
|
FRONT BRAKE ROTOR |
160mm |
|
REAR BRAKE |
Mechanical Disc |
|
REAR BRAKE ROTOR |
160mm |
|
BRAKE LEVERS |
Alloy Jr., Reach Adjust |
COMPONENTS
|
HANDLEBAR |
Alloy Jr. 540mm, 45mm Rise |
|
STEM |
Alloy, 45mm Length 31.8mm Clamp |
|
SEATPOST |
Alloy 27.2mm |
|
HEADSET |
External Cup |
|
SADDLE |
Norco Youth |
|
GRIPS |
Norco Youth |
|
PEDALS |
Jr. MTB Flat, Black |
WHEELS
|
FRONT HUB |
Aluminum, 9x100mm, 6 Bolt |
|
REAR HUB |
Aluminum, 10x135mm, HG, 6 Bolt |
|
RIMS |
Aluminum Double Wall, 28H, 20" |
|
FRONT TIRE |
Vee Crown Gem 2.25" |
|
REAR TIRE |
Vee Crown Gem 2.25" |
|
SPOKES/NIPPLES |
Stainless, Black |
Geometry
x
| Wheel Size | 20" | |
|---|---|---|
| Travel (mm front) | 63 | |
| Reach | 330 | |
| Stack | 418 | |
| HTA | Head Tube Angle | 65 |
| ST | Seat Tube Length | 255 |
| STA | Effective Seat Tube Angle | 73 |
| RC | Rear Centre Length | 338 |
| BB | Bottom Bracket Drop | 7 |
| BBH | Bottom Bracket Height | 253 |
| HTT | Horizontal Top Tube | 458 |
| WB | Wheelbase | 904 |
| HT | Head Tube Length | 90 |
| Crank Length | 140 |
