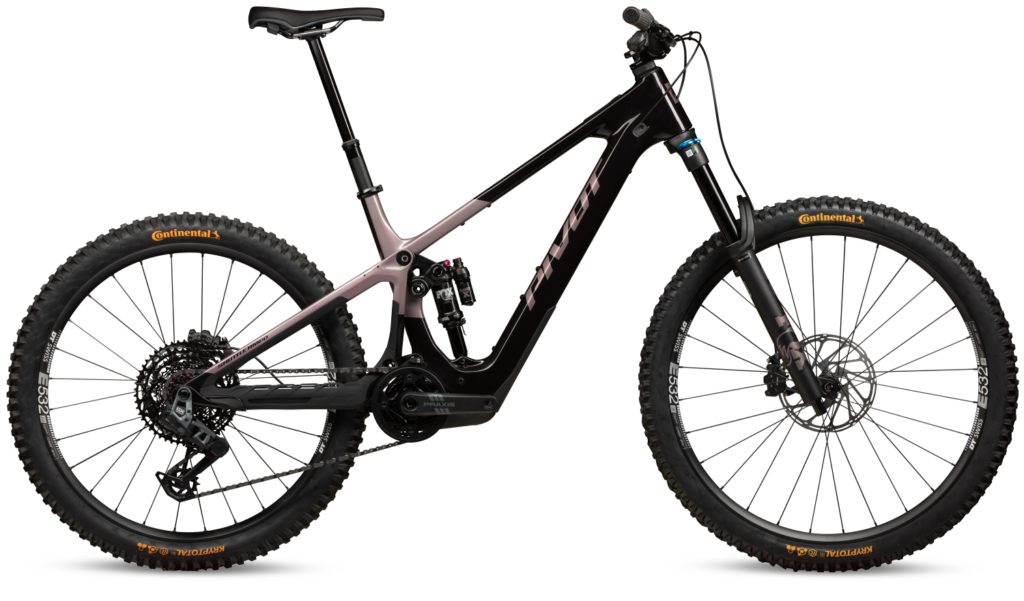

Pivot Cycles introduces the all-new Shuttle AMP’d – a bike that brings a full-volume assault to the...
Availability: In stock
$12,999.00
$13,999.00
$12,999.00
Please hurry! Only 1 left in stock
Size: L
Subtotal: $12,999.00
Order within the next hours minutes to receive it. Estimated delivery is between and .

Shipping

Free Delivery on orders over $100 excluding large and bulky items

Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze

Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze

$13,999.00 $12,999.00
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze
Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze

Pivot Shuttle AMP’d Ride GX Burgandy Berry Freeze

$13,999.00 $12,999.00
Size: L
Description
Description
x
  • Pivot Cycles introduces the all-new Shuttle AMP’d – a bike that brings a full-volume assault to the mountain. Built to shred with sharp reactions, lively handling and a ride that stays settled even when the trail is not. The Shuttle AMP’d stays planted and aggressive through it all.

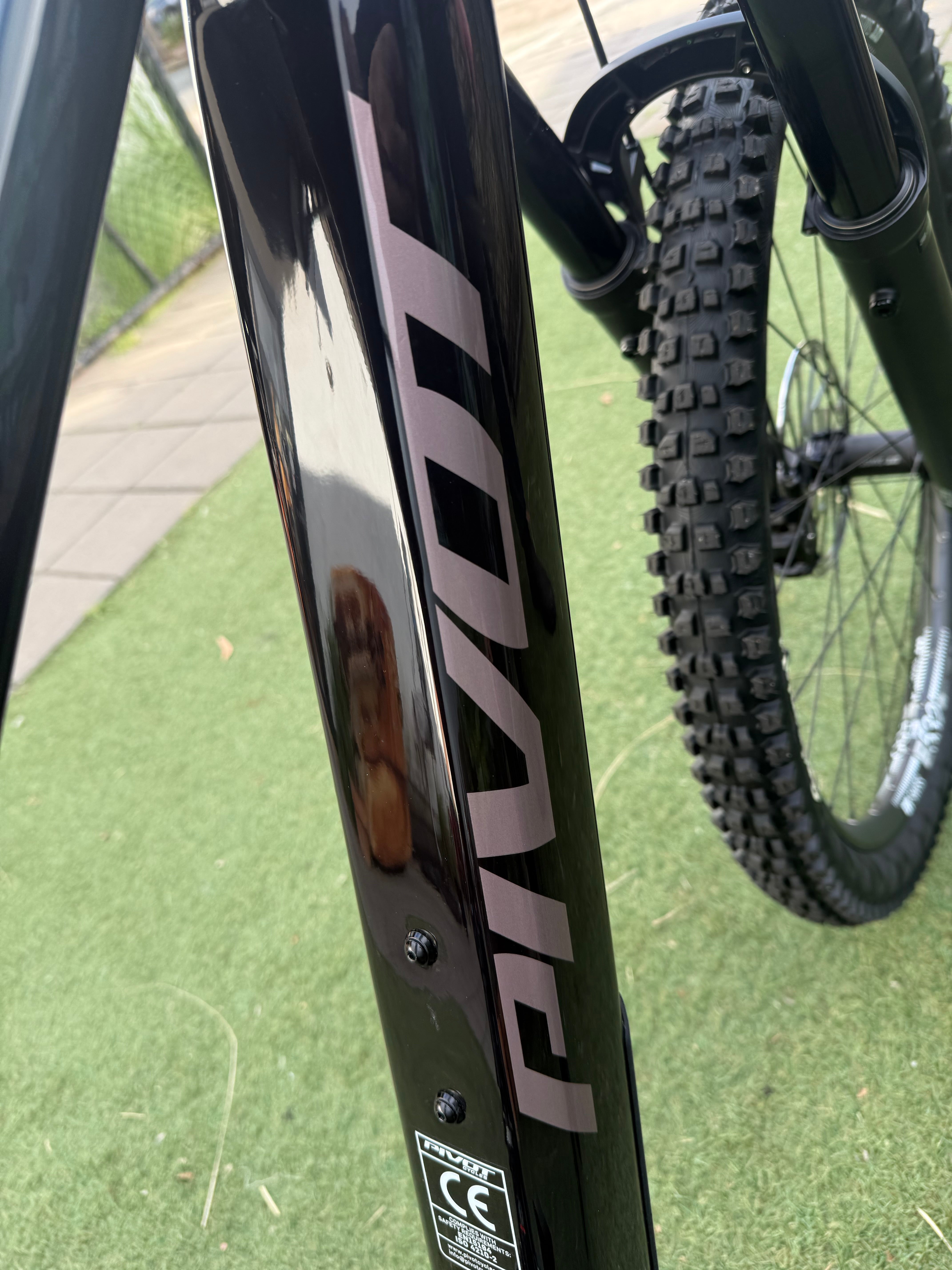

  • Ultra light Hollow Core carbon frame
  • Avinox M2S drive unit and long-range 800Wh battery across all build levels
  • Available in XS to XL frame sizes

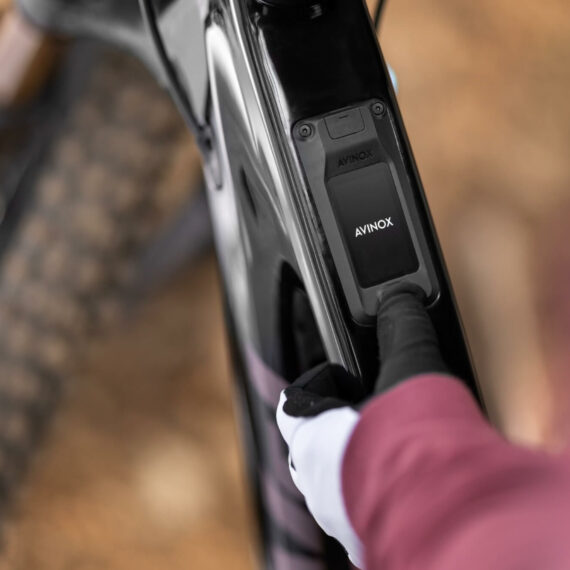

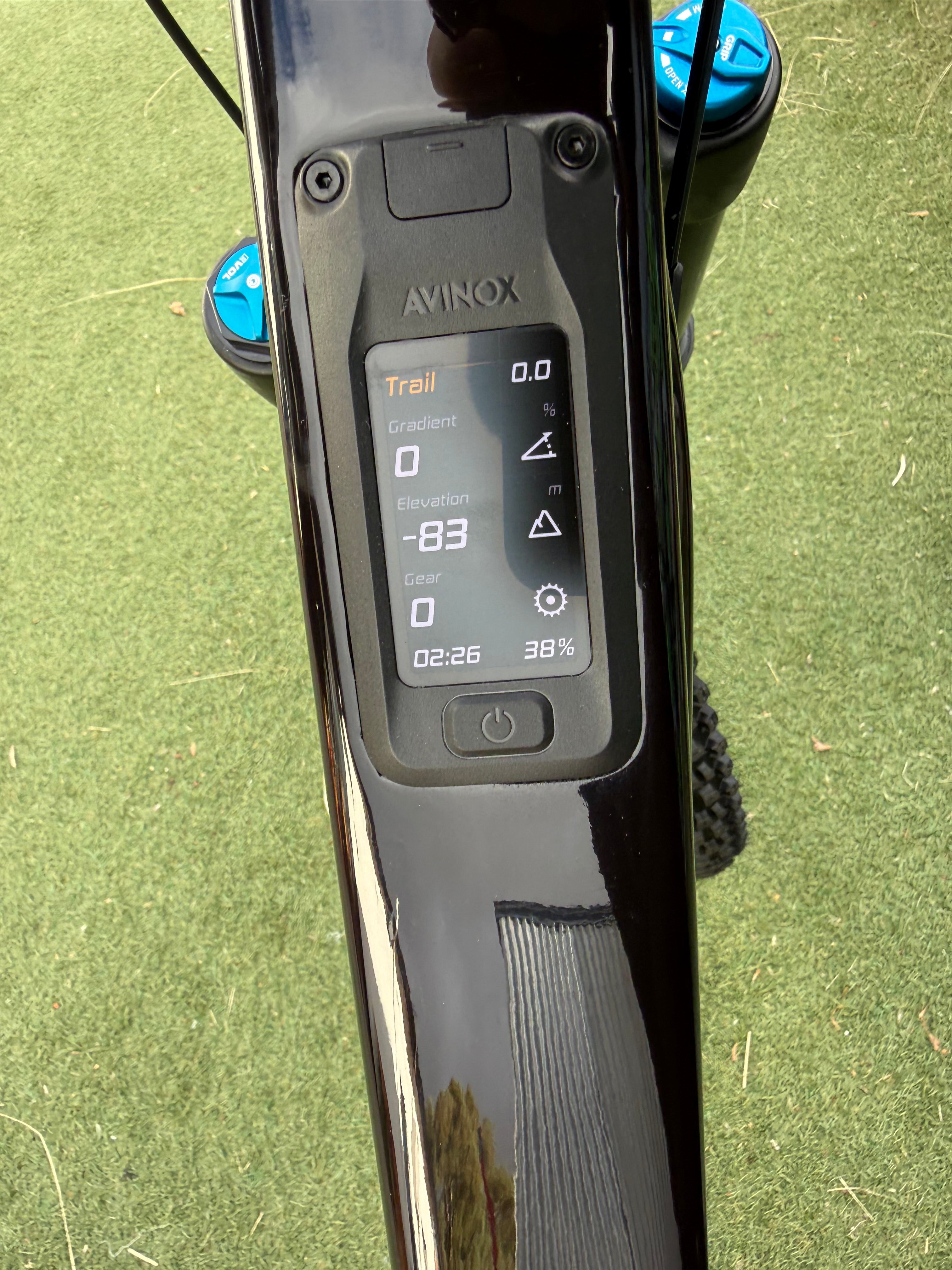

  • Full-color, OLED touchscreen display
  • Wireless Avinox remotes
  • 160mm travel fork
  • 150mm of progressive rear suspension travel
  • Mixed-wheel setup
  • Geo flip chip via upper link mount
  • Full internal routing with Pivot Cable Port System
  • Injection molded rubberized frame protection
  • Pivot dock tool system compatible
  • Water bottle clearance on all sizes
Specification
Specification
x
Kit Ride GX
Starting Price$13,999.00
FrameShuttle AMP’d
MaterialCarbon
Wheel Size29" / 27.5"

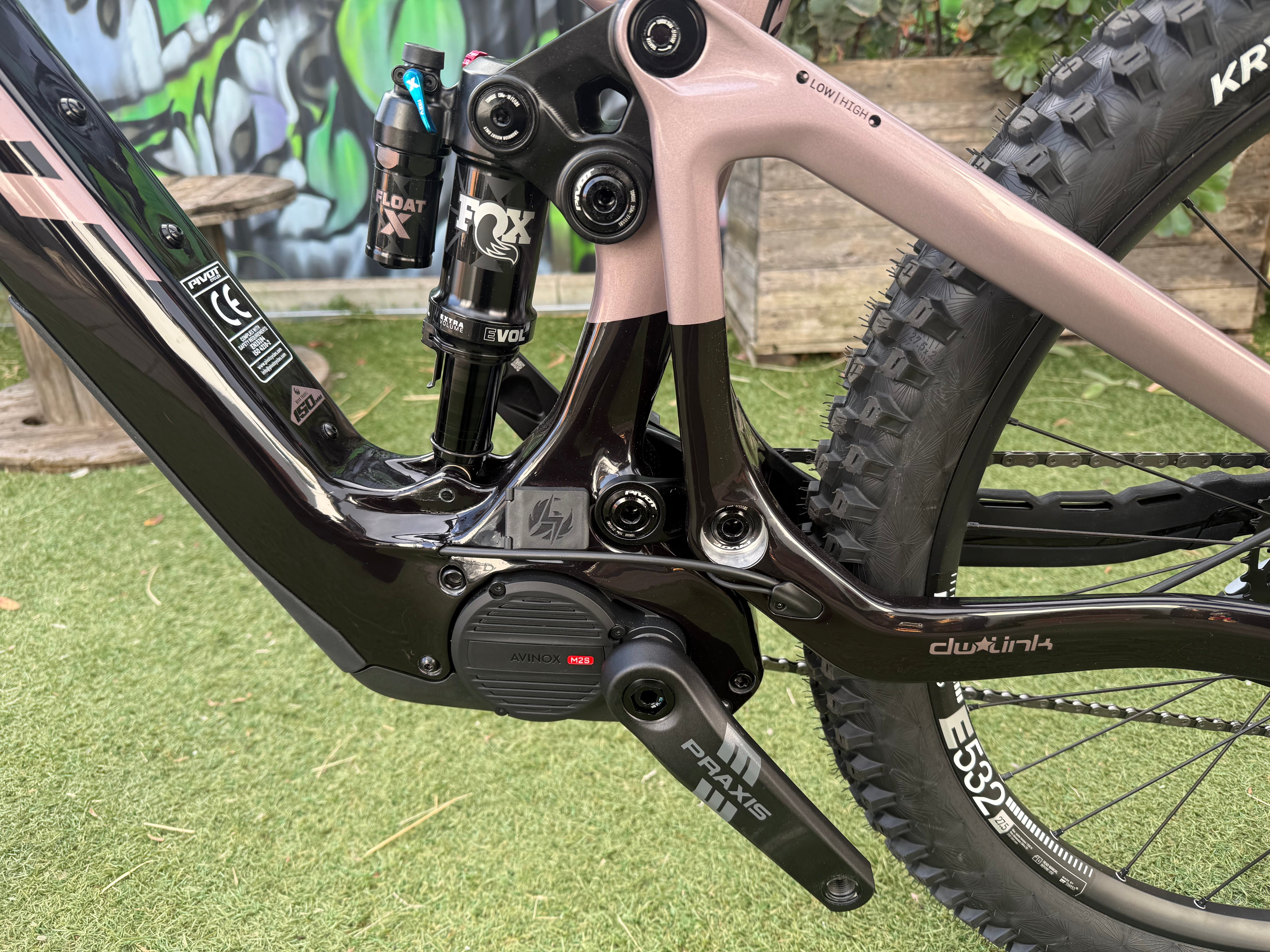

Rear ShockFox Performance Float X

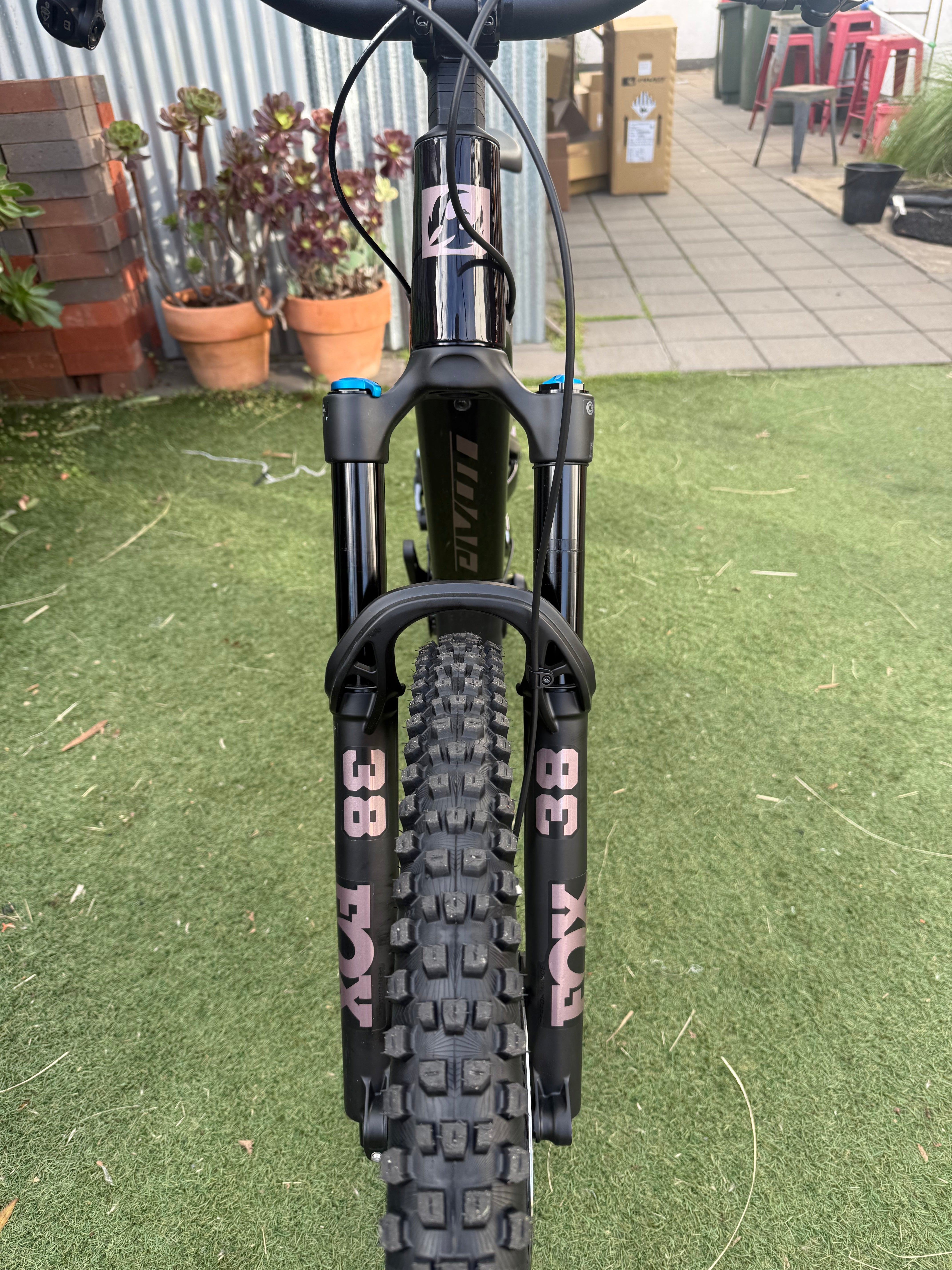

ForkFox Performance 38 29”, 44mm offset, GRIP - 160mm
HeadsetPivot Precision Sealed Cartridge

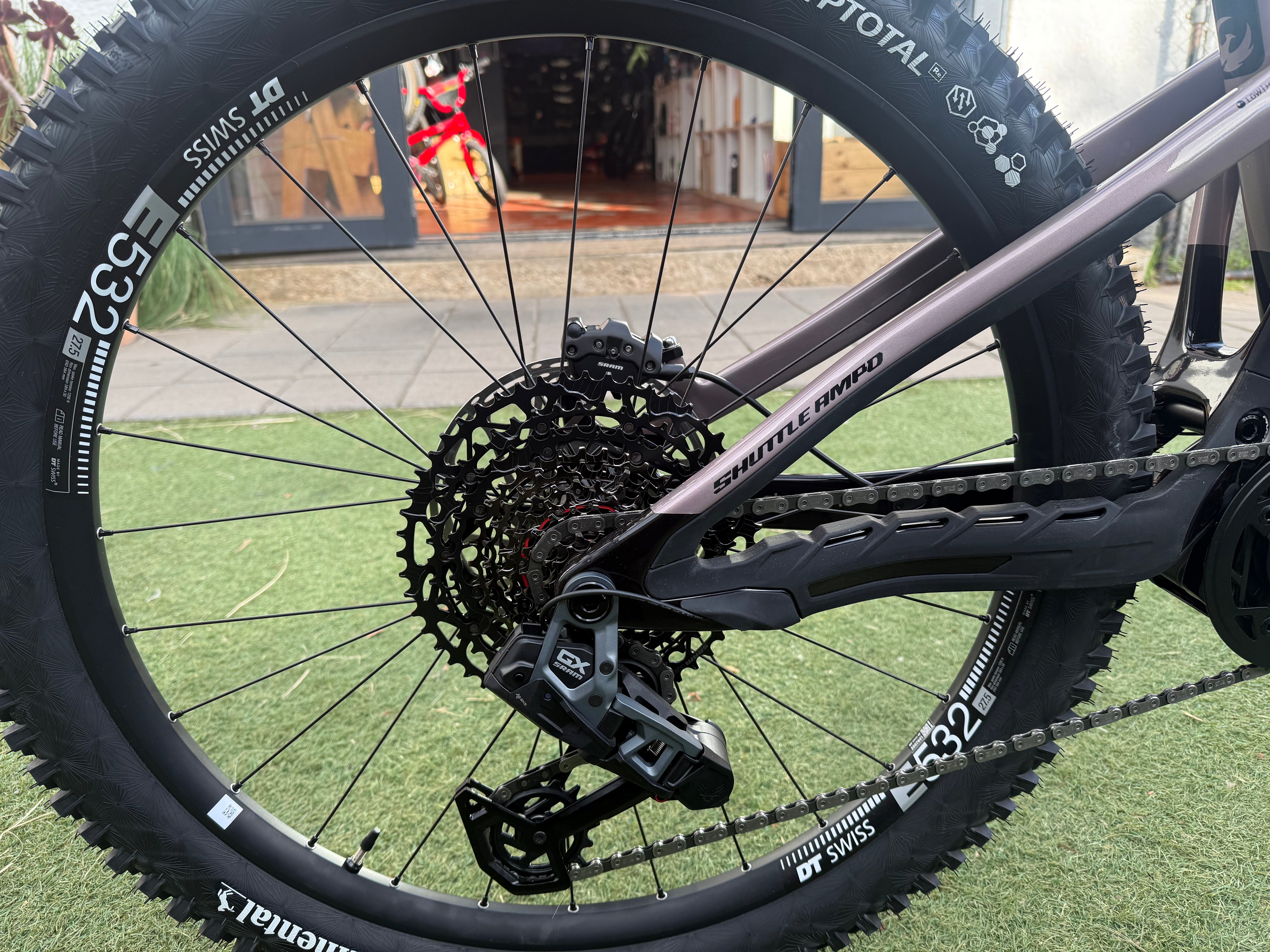

Rear DerailleurSram GX Eagle Transmission 12-Speed
ShifterSram AXS Pod Controller

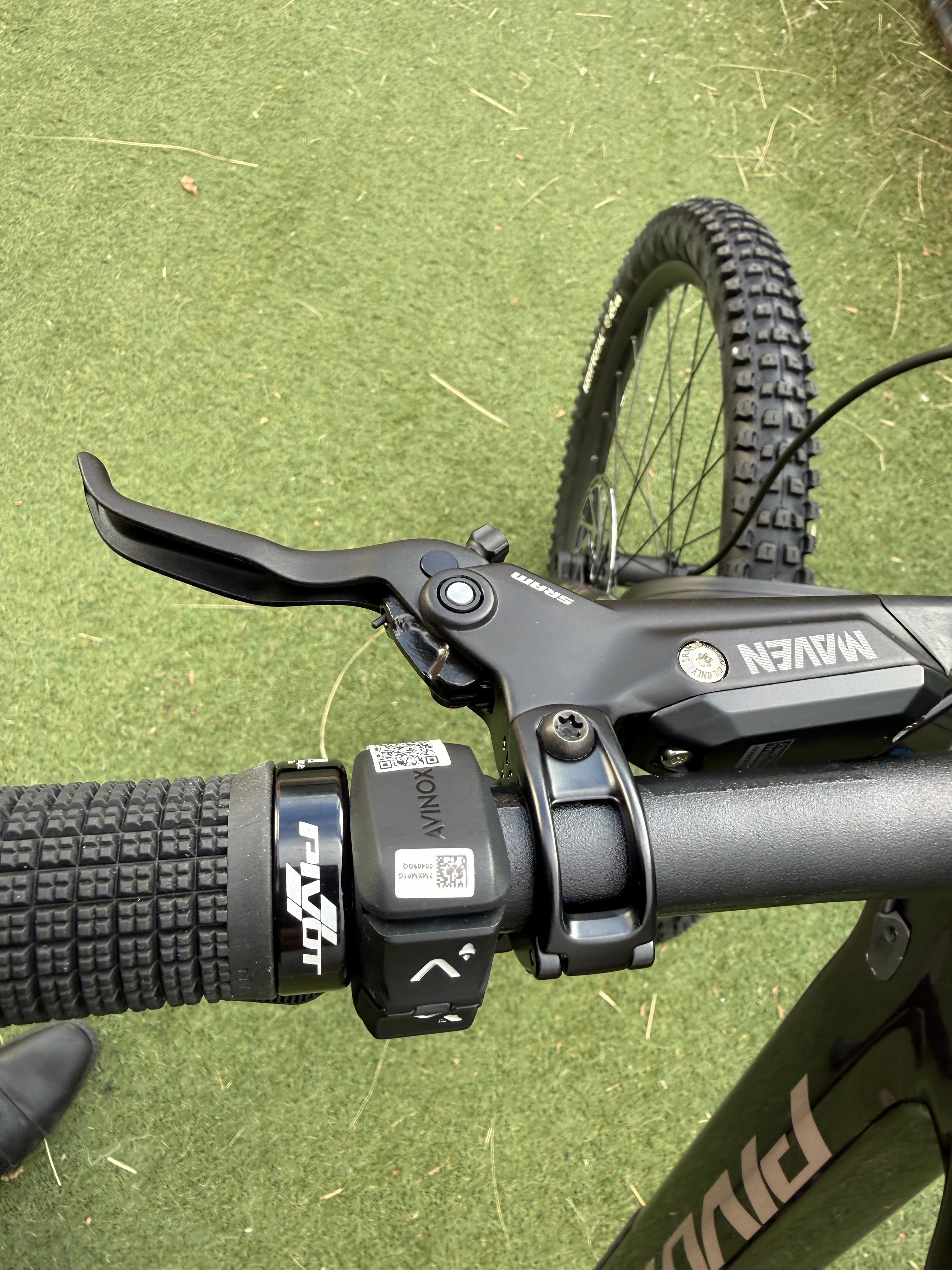

BrakesSram Maven 4-piston
CranksetPraxis Alloy eCranks E-MTB 34t - 155mm

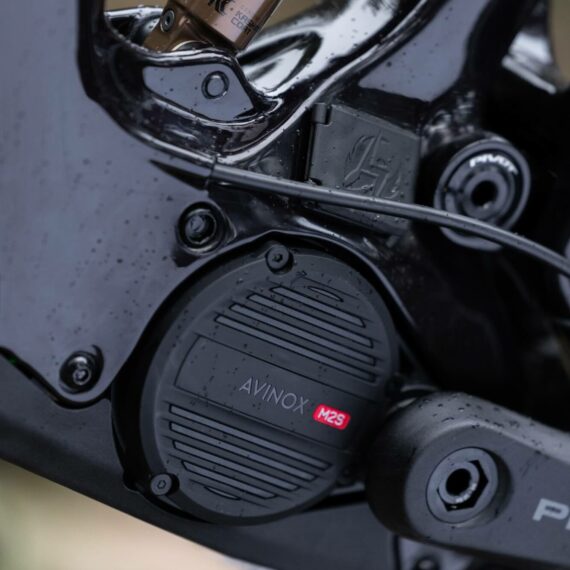

Drive UnitAvinox M2S
Handlebar Phoenix Race Aluminum - 20mm Rise 780mm(XS-SM), 35mm Rise 780mm(MD-XL)
GripsPhoenix Factory Lock-On
Stem Phoenix Team Enduro V2 - 32mm(XS), 40mm(SM-LG), 50mm(XL)
Seatpost OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL)
SaddlePivot Team E-Bike
CassetteSram XS-1270 Eagle Transmission 10-52t

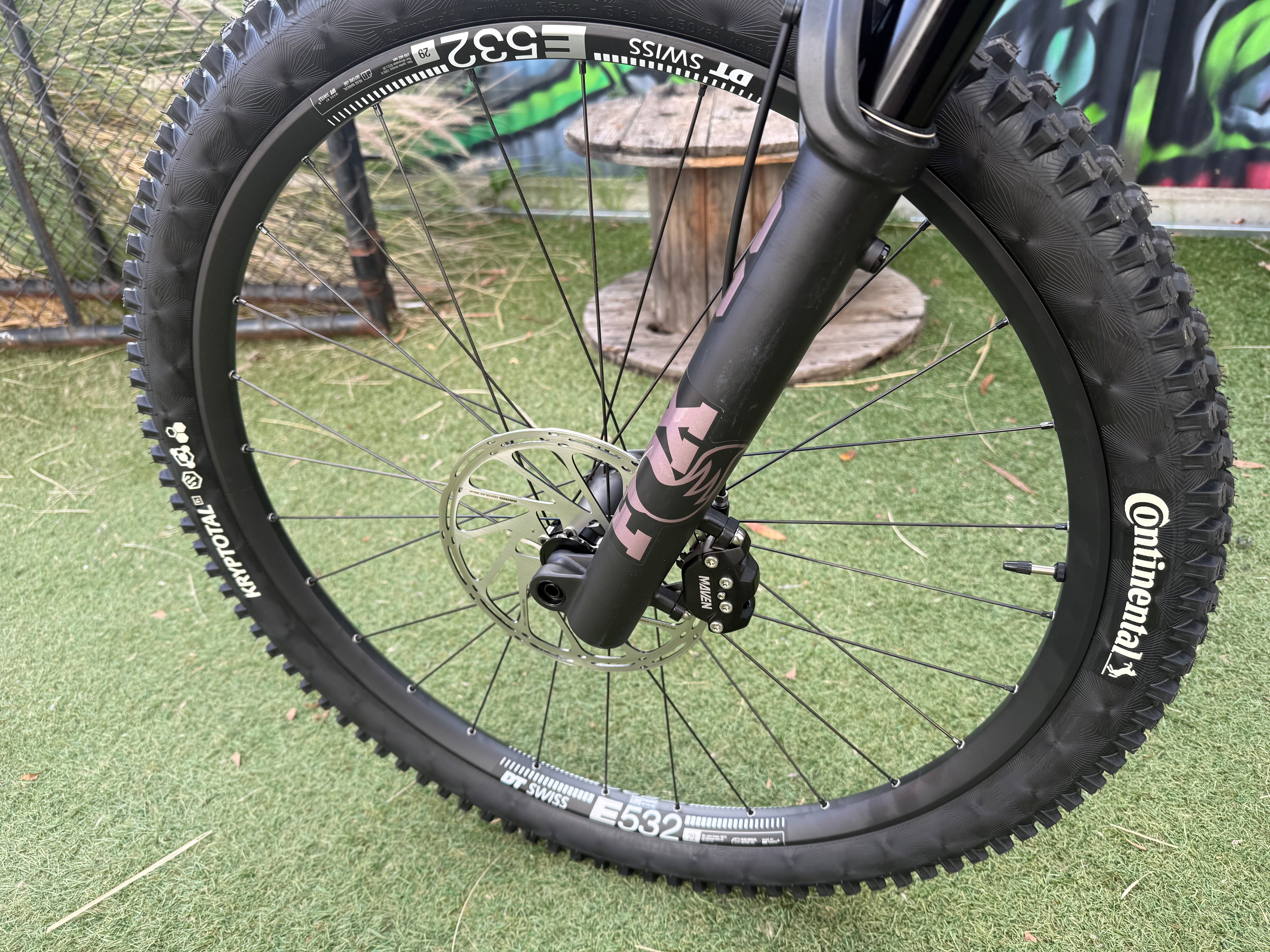

Wheels DT Swiss E532, 30mm - Mixed | F - 15x110 / R - 12x157
Tires Continental Kryptotal Super Soft Compound Enduro Casing - F 29” x 2.4”
Rotors Sram Centerline 2.0 6 Bolt | F - 200mm / R - 200mm
ChainSram Eagle 70 Flattop 12-Speed
Geometry
Geometry
x
Shuttle AMP – Geometry & Sizing (Low Configuration)
Size Extra Small Small Medium Large Extra Large
A Seat Tube Length (C-T) 343.0 378.0 398.7 431.8 470.0
B Top Tube Length 575.7 605.5 632.9 650.3 672.7
C Head Tube Length 95.0 110.0 120.0 130.0 140.0
D Head Tube Angle 63.3 63.3 63.3 63.3 63.4
E Seat Tube Angle 76.1 76.1 76.1 76.1 76.1
F Chain Stay Length 443.0 443.0 443.0 443.0 443.0
G Bottom Bracket Height 335.0 335.0 335.0 335.0 335.0
H Bottom Bracket Drop 23.0 23.0 23.0 23.0 23.0
I Standover Height 640.0 658.0 666.0 666.0 667.0
J Wheelbase 1189.0 1218.6 1247.9 1267.2 1291.5
Stack 616.3 636.0 645.3 654.5 663.8
Reach 416.0 431.0 456.0 471.0 491.0
