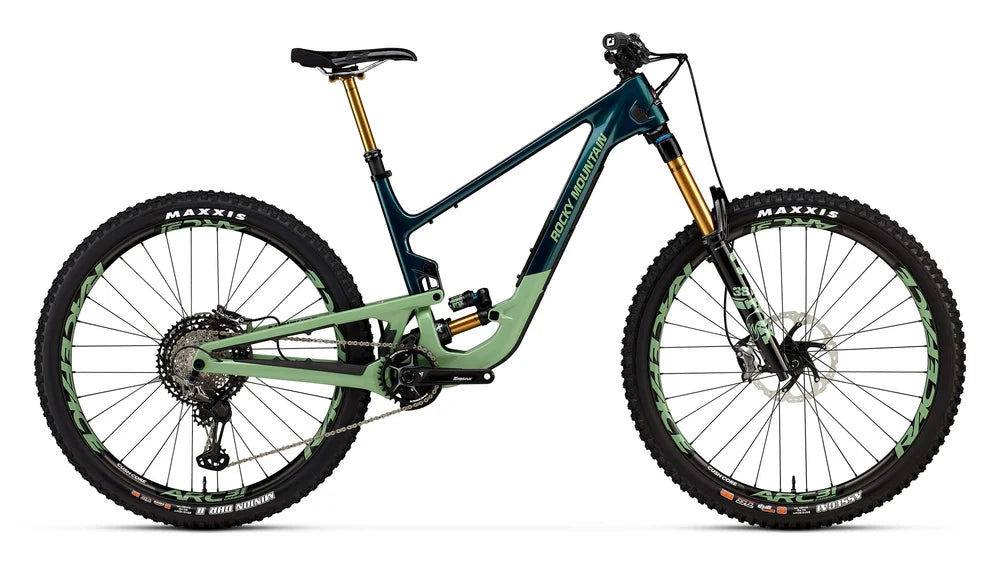

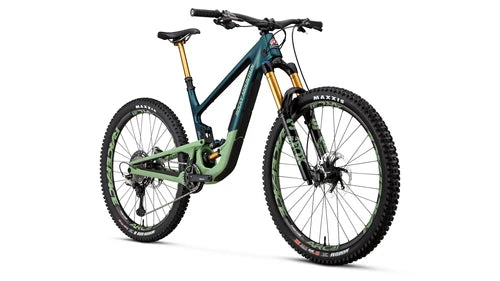

Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon

Rocky Mountain Altitude C90 Rally Edition Carbon

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by...
Availability: Out Of Stock
$9,999.00
$14,799.00
$9,999.00
Please hurry! Only 0 left in stock
Size: M
Subtotal: $9,999.00
Order within the next hours minutes to receive it. Estimated delivery is between and .

Shipping

Free Delivery on orders over $100 excluding large and bulky items

Rocky Mountain Altitude C90 Rally Edition Carbon

Rocky Mountain Altitude C90 Rally Edition Carbon

$14,799.00 $9,999.00
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon
Rocky Mountain Altitude C90 Rally Edition Carbon

Rocky Mountain Altitude C90 Rally Edition Carbon

$14,799.00 $9,999.00
Size: M
Description
Description
x

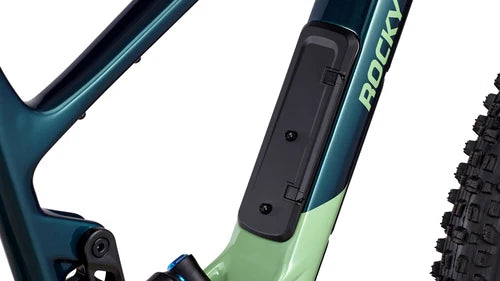

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.

Specification
Specification
x
Bike Specifications
Technical Specifications
Frame SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front Travel 170mm

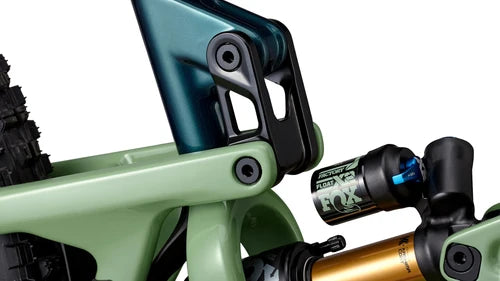

Shock Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
Rear Travel 160mm
Headset FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem Race Face Turbine R | 0° Rise | All Sizes = 40mm
Handlebar Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp
Grips ODI Elite Pro Lock On
Brakes Shimano XTR Trail 4 Piston | IceTec Metal Pads
Shifters Shimano XTR
Rear Derailleur Shimano XTR
Cranks & Chainring Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD - XL = 170mm
Bottom Bracket Race Face BSA 73 30mm
Cassette Shimano XTR 12s 10-51T
Chain Shimano XTR 12s
Front Hub DT Swiss 350 Boost 15mm
Rear Hub DT Swiss 350 Boost 148mm | 36T Star-Ratchet
Spokes DT Swiss Competition 2.0/1.8/2.0
Rims Race Face ARC Carbon 31 | 32H / Tubeless Ready - Tape / Valves Incl

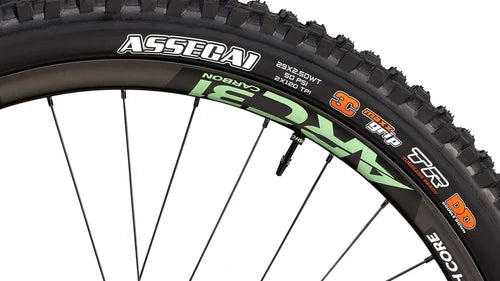

Tires F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
Seatpost Fox Transfer Factory Series 30.9mm | SM = 150mm | MD = 175mm | LG - XL = 200mm
Saddle WTB Volt Race 142
Weight 33.9 LBS | 15.4 KGS
Notes We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
Geometry
Geometry
x
```html

Geometry

Wheel Size

MX (29" Front / 27.5" Rear)

Geometry Setting

RIDE-9/4 Position 1 (Slack)

Measurement MD LG XL
Top Tube Horizontal (mm) 584 610 642
Head Tube Angle (°) 62.9 62.9 62.9
Head Tube Length (mm) 105 115 130
Seat Tube Angle (°) 77 77 77
Seat Tube Length (mm) 410 440 470
Rear Centre (mm) 440 450 450
Bottom Bracket Drop (mm) 29 29 29
Reach (mm) 450 475 505
Stack (mm) 630 639 653
Standover Height (mm) 791 797 808
Wheelbase (mm) 1243 1282 1319
```
