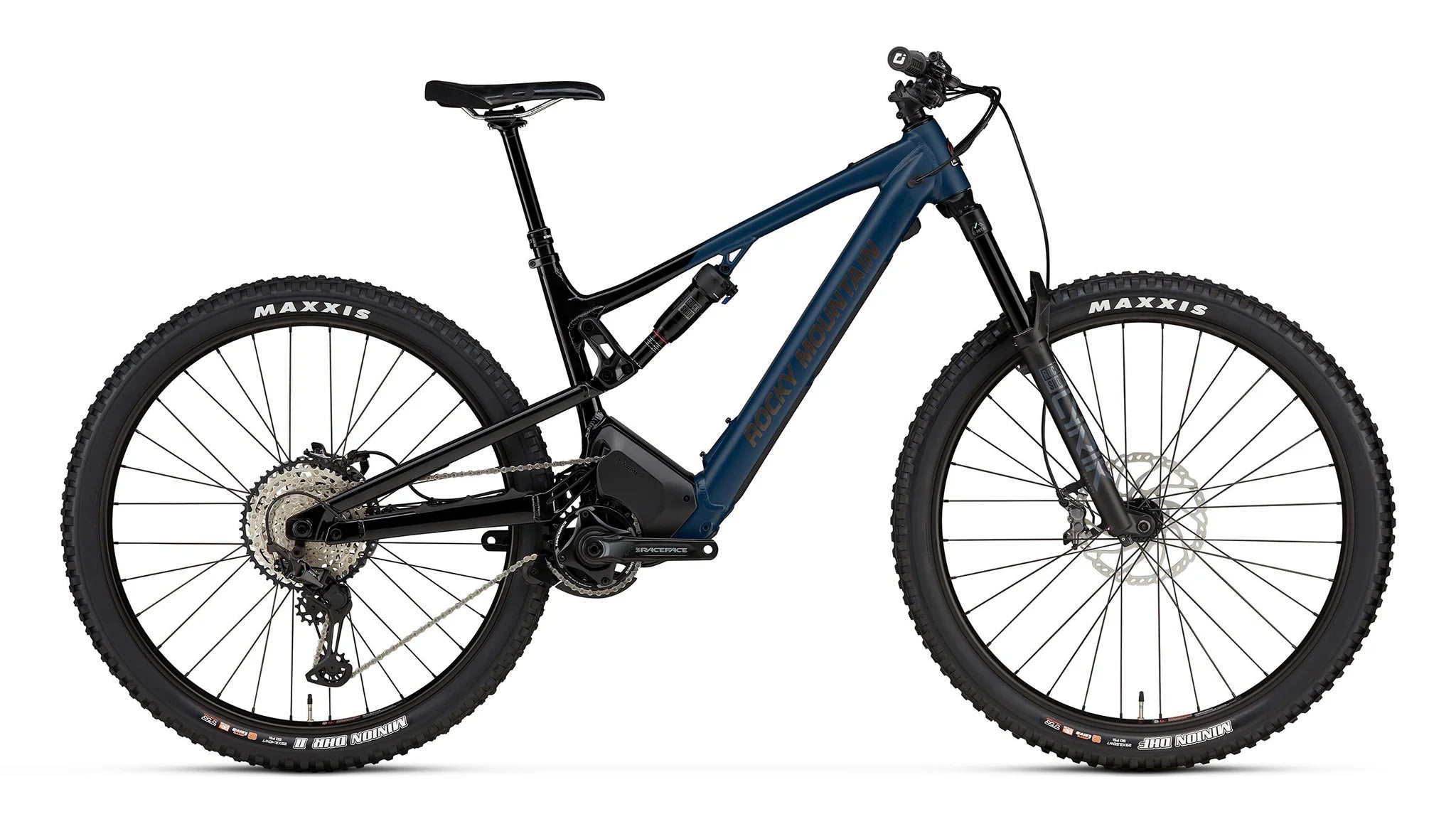

Instinct PowerPlay A70 Rocky Mountain eMTB 2023 Black/Blue
RockShox Lyrik Select RC, RockShox Deluxe Select+, Shimano XT
Availability:
In stock
- $9,916.99
$11,598.00- $9,916.99
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$9,916.99
Couldn't load pickup availability
Shipping
Free Delivery on orders over $100 excluding large and bulky items
Description
xIntended use: Trail
Rear travel: 140mm
The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
Dyname™ 4.0
Dyname™ 4.0, only available on Powerplay, is incredibly powerful and is truly a leader among e-bike motors. We designed the power curve within the software to deliver the 108Nm smoothly, allowing you as the rider to soft pedal around tight switchbacks or drop the hammer through a chunky, punchy portion of trail.
FORM™ Alloy
FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real-world field testing, and adjusts each tune for specific frame sizes.
Two-position axle
The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.
RIDE-4™ adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
Specification
xFrame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry + Suspension Rate | 140mm Travel. FORM™ Alloy Rear Triangle
Fork
RockShox Lyrik Select RC 150mm | 42mm Offset
Shock
RockShox Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ
Grips
ODI Elite Pro Lock On
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Brakes
Shimano XT Trail 4 Piston | Metal Pads | F: Shimano RT66 203mm | R: Shimano RT66 203mm
Shifters
Shimano XT
Rear Derailleur
Shimano XT
Cranks & Chainring
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano SLX 10-51T
Chain
Shimano M7100
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
Spokes
F: DT Swiss Champion 2.0 | R: DT Swiss Alpine 2.3/2.0
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl
Tires
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Seatpost
Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm
Saddle
WTB Volt Race 142
Weight NW
This information isn't available yet. We will update the weight of this model as soon as possible.
Electrical Components
Drive System
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Remote
Rocky Mountain Micro Remote
Display
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger
Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
