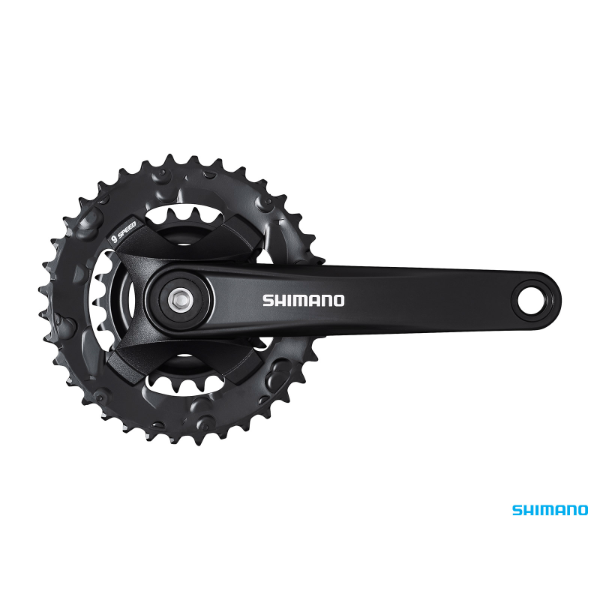

Shimano Crank FC-MT101-2 2x 9-Speed

The Shimano FC-MT101-2 crank is designed for 2x9 speed MTB drivetrains.

SPECIFICATIONS

• Model No: FC-MT101-2
• Color: Black
• Rear speeds: 9
• Compatible chain: HG 9-speed
• Chain line (mm): 48.8
• O.L.D.|Thru (mm): 142
• O.L.D.|QR/Nut (mm): 135
• P.C.D. (mm): Riveted
• Spider/Gear arms: 4
• Chainring combination: 36-22T
• Q-factor (mm): 179.4
• Crank arm length (mm)|170: Yes
• Crank arm length (mm)|175: Yes
• Optional chain guard|Without chain/bash guard: Yes
• Compatible bottom bracket type|Square: Yes
• Recommended bottom bracket|Threaded (normal): BB-UN101
• Axle length of BB-UN/ES (mm)|Threaded (normal): LL123
• Threaded bottom bracket shell width (mm)|68: Yes
• Threaded bottom bracket shell width (mm)|73: Yes
• Crank fixing screw included: Yes
