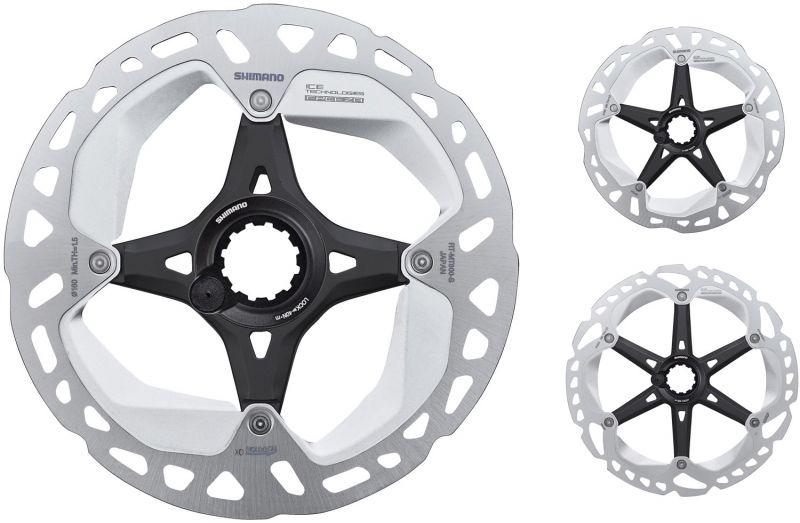

Shimano Disc Brake Rotor RT-MT800 Centrelock Internal Inc. Magnet

FEATURES

• Stable and versatile brake performance in the most demanding conditions
• High-performance and consistent brake performance
• New ICE TECHNOLOGIES FREEZA construction for boosting heat dissipation
• Lockring type with Internal (Internal Serration) toothing
• Magnet-Lockring for EW-SS302
• For use with SHIMANO STEPS speed sensor EW-SS302

SPECIFICATIONS

• Use: E-Bike, MTB, Road, Gravel
• Group: XT, Ultegra, GRX / SHIMANO STEPS
• Model: RT-MT800
• Disc mount: Center-Lock
• Pad compatibility: metal / Resin (with BR-S700 and BR-S7000 Resin only!)
• Lockring: With Internal tool holder
• Diameter (choose variant)
• 160mm Internal (RT-MT800-SI)
• 180mm Internal (RT-MT800-MI)
• 203mm Internal (RT-MT800-LI)
• Lockring type with Internal tool holder!
• Compatibility - Brake Caliper
  BR-M9100*, BR-M9120, BR-M9110-R**, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R*, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R*, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S7000, BR-S700, BR-R9270**, BR-R9170*, BR-R8170*, BR-R8070*, BR-R7070*, BR-4770*, BR-RS805*, BR-R785*, BR-RS785*, BR-RS505*, BR-RS405*, BR-RX810*, BR-RX400*
  * not compatible with 203mm** only compatible with 160mm
• Material
• Rotor: Stainless steel / Aluminum
• Lockring: Aluminum
• Weight (manufacturer information)
• 133g (160mm)
• 159g (180mm)
• 193g (203mm)

TECHNOLOGY
Ice-Tech FREEZASHIMANO’s ICE TECHNOLOGIES has realized the ultimate clad rotor, incorporating aluminum fins for enhanced heat control. With an increased surface area for heat dispersion, the rotor achieves a 50°C reduction in heat. This in turn generates a 20% increase in braking force durability and a 20% longer pad life.Center-Lock SystemThe CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
