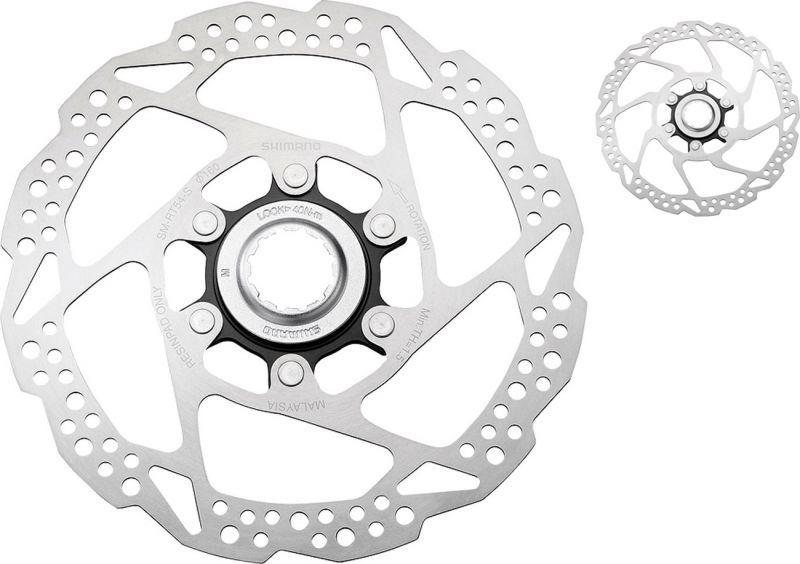

Shimano Disc Brake Rotor SM-RT54 Centrelock Internal

The Shimano SM-RT54 disc brake rotors provide exceptional stopping power in all riding conditions. Center-Lock mounting system makes installing and removing rotors quick and easy thanks to the spine mount and lock ring design. Only for Resin Pads.


SPECIFICATIONS

• Use: MTB, Road, Gravel
• Model: SM-RT54
• Disc: Center-Lock
• Pad compatibility: Resin
• Diameter (choose variant)
• 160mm Internal (SM-RT54-S)
• 160mm External (SM-RT54-SE)
• 180mm Internal (SM-RT54-M)
• 180mm External (SM-RT54-me)
• Lockring type with Internal or External tool holder
• Material
• Rotor: Stainless steel
• Lockring: Steel
• Weight
• approx. 141g (160mm)
• approx. 164g (180mm)

COMPATIBILITY
Brake Caliper: BR-M9100, BR-M9120, BR-M9110-R*, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S7000, BR-S700, BR-R9270*, BR-R9170*, BR-R8170, BR-R8070, BR-R7070, BR-4770, BR-RS805, BR-R785, BR-RS785, BR-RS505, BR-RS405, BR-RX810, BR-RX400

* only compatible with 160mm

TECHNOLOGY
Center-Lock SystemThe CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
