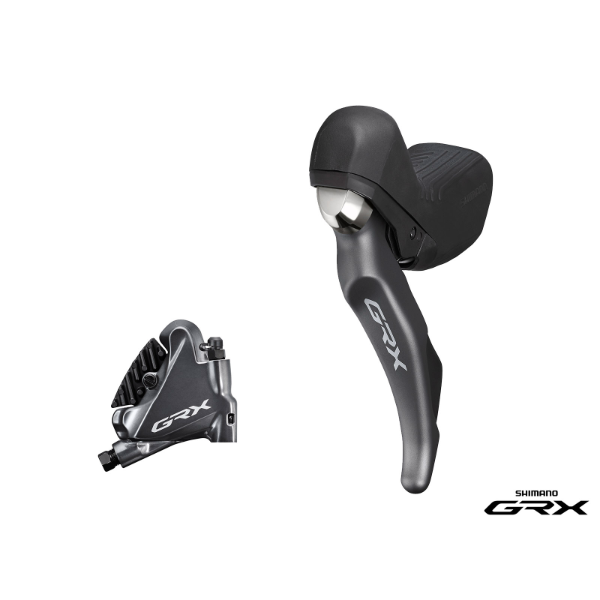

Shimano Hydraulic Front Disc Brake GRX BL-RX810 Lft Dual Ctrl Lever ST-RX810 11s

LEVER

• Model No: BL-RX810-L
• Series: GRX 11-speed
• Color: Series color
• Average weight: 222
• Brake type: Hydraulic disc brake
• Bracket cover color|1: Standard
• Brake hose (kit): SM-BH90-JK-SSR
• Hose joint: Straight
• Brake hose color (kit)|1: Black
• Servo Wave: Yes
• Reach adjust|Tool: Yes
• Free stroke adjust: Yes
• Clamp band|Diameter (mm): 23.8-24.2
• Recommended brake caliper: BR-RX810
• Oil: Shimano Mineral
• Funnel bleeding: Yes

CALIPER

• Model No: BR-RX810-R
• Series: GRX 11-speed
• Color: Series color
• Average weight: 124
• Remarks: Front spec with adaptor
• Brake type: Hydraulic disc brake
• Brake hose (kit): SM-BH90-JK-SSR, SM-BH90-J-SSR
• Hose joint: Straight
• Brake hose color (kit)|1: Black
• J-Kit spec (for OEM): Yes
• Ice Technologies pad compatible caliper: Yes
• Pad|Standard 1: K05S-RX Resin (w/o fin)
• Pad|Standard 2: L05A-RF Resin (w/ fin)
• Pad|Option 1: K04S-MX Metal (w/o fin)
• Pad|Option 2: L04C-MF Metal (w/ fin)
• Fixing screw spec for rear mount|10 mm mount: Yes
• Fixing screw spec for rear mount|15 mm mount: Yes
• Fixing screw spec for rear mount|20 mm mount: Yes
• Fixing screw spec for rear mount|25 mm mount: Yes
• Fixing screw spec for rear mount|30 mm mount: Yes
• Fixing screw spec for rear mount|35 mm mount: Yes
• Recommended brake lever: ST-RX810 BL-RX810 ST-RX815
• Recommended disc brake rotor: SM-RT800, RT-MT800
• Oil: Shimano mineral
• One Way Bleeding: Yes
• Mount type: Flat mount
• Piston: 2
• Caliper fixing screw|Tool size: 4 mm
• Caliper fixing screw|Anti loosen method: Screw fix pin+Snap ring
• Pad mount: Pad axle
