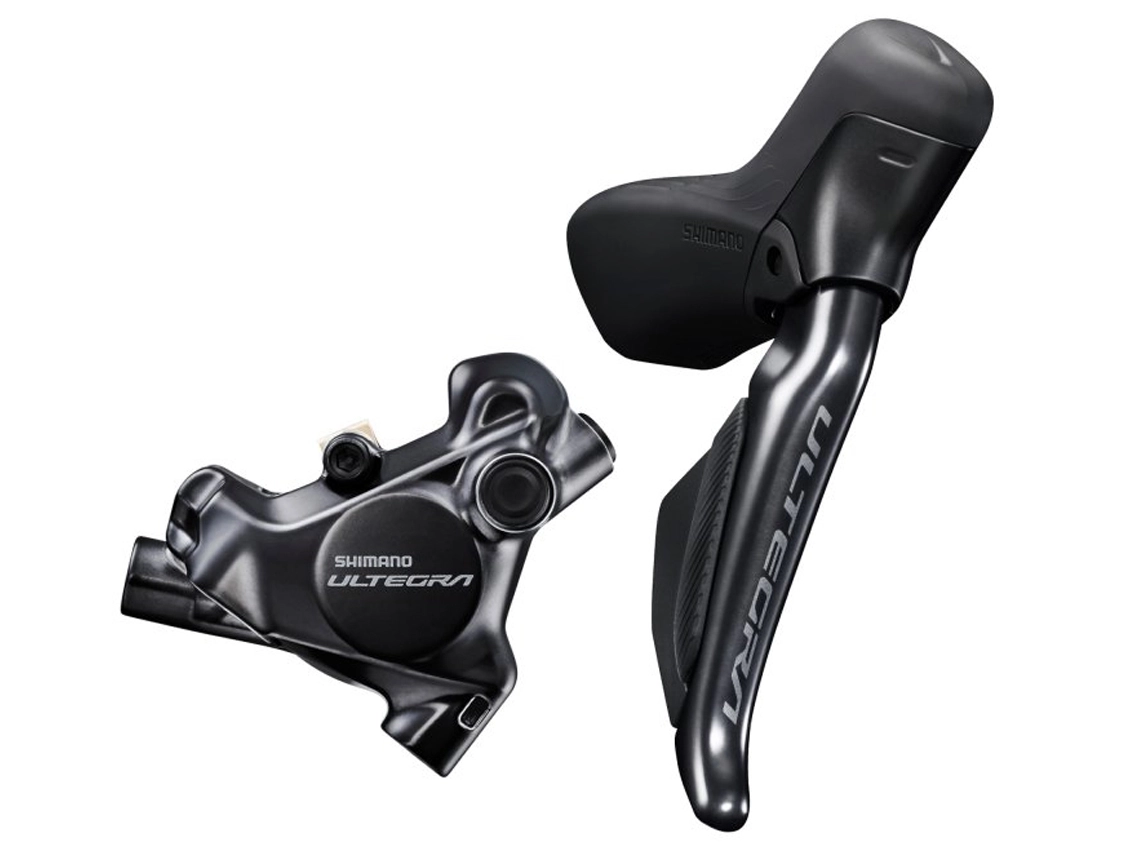

Shimano Hydraulic Disc Brake Ultegra R8170 with Left Dual Control Lever

Ultegra Di2 ST-R8170 12 Speed Shifter

The ST-R8170 STI levers are not only characterised by their optimised ergonomics and even more precise dosing of the hydraulic disc brakes, but also impress above all with lightning-fast shifting processes, which are achieved not least through the Wireless functionality.

The wireless connection also offers another advantage: without electric cables, installation is easier and the cockpit appears tidier. Nevertheless, the shift/brake levers still offer a cable connection (EW-SD300) for the use of additional shifters in the drops or the top of the handlebar. For numerous customisation and configuration options, compatibility with the improved E-Tube Project app, which, like previous versions, allows you to adjust shift modes (Synchro-/Semi-Synchro-Shift, Multi-Shift), shift speed and button assignment on the fly.

To ensure that the braking performance is in no way inferior to the shifting functionality, the Ultegra Dual Control levers feature Servowave technology. With the help of an extended brake control range, this ensures excellent dosing that offers optimum comfort and control even in challenging conditions. Of course, for individual adjustment, the levers feature the option of reach and free stroke adjustment.

BR-R8170 Disc Brake Caliper

All around improved, the Shimano Ultegra BR-R8170 caliper offers optimised dosing, quieter braking performance and extremely simplified maintenance.

While a faster-gripping initial braking force always gives the feeling of full control, the 10 % increase in brake pad spacing allows for a significant reduction in noise during braking, despite a flatter overall construction. In addition, when the RT-MT900 brake disc rotor (sold separately) is used, its deformation-resistant design, even with increasing heat, helps to create an extremely quiet and smooth braking system.

To simplify maintenance, the hydraulic 2-piston brake caliper not only features the proven One-Way-Bleeding system, but also a separate arrangement of bleed nipple and opening screw. On the one hand, this minimises the risk of the bleed kit hose slipping off when opening or closing the system and, on the other hand, makes it unnecessary to dismantle the caliper from the frame for bleeding process.
