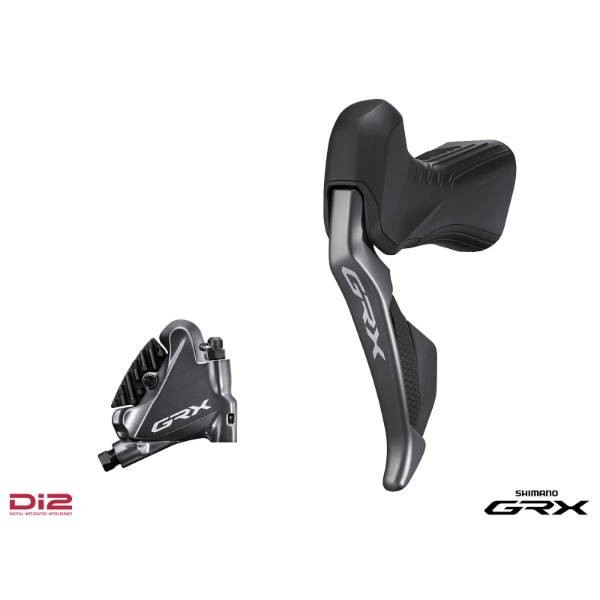

Shimano Hydraulic Rear Disc Brake GRX Di2 BR-RX810 Rt Dual Ctrl Lever ST-RX815

CALIPER

• Model No: BR-RX810-R
• Series: GRX 11-speed
• Color: Series color
• Average weight 124
• Remarks: Front spec with adaptor
• Brake type: Hydraulic disc brake
• Brake hose (Kit) : SM-BH90-JK-SSR SM-BH90-J-SSR
• Hose joint: Straight
• Brake hose color (kit)|1: Black
• J-Kit spec (for OEM): Yes
• Ice Technologies pad compatible caliper): Yes
• Pad|Standard 1: K05S-RX Resin (w/o fin)
• Pad|Standard 2: L05A-RF Resin (w/ fin)
• Pad|Option 1: K04S-MX Metal (w/o fin)
• Pad|Option 2: L04C-MF Metal (w/ fin)
• Fixing screw spec for rear mount|10 mm mount): Yes
• Fixing screw spec for rear mount|15 mm mount): Yes
• Fixing screw spec for rear mount|20 mm mount): Yes
• Fixing screw spec for rear mount|25 mm mount): Yes
• Fixing screw spec for rear mount|30 mm mount): Yes
• Fixing screw spec for rear mount|35 mm mount): Yes
• Recommended brake lever: ST-RX810 BL-RX810 ST-RX815
• Recommended disc brake rotor SM-RT800 RT-MT800
• Oil: Shimano Mineral
• One Way Bleeding: Yes
• Mount type: Flat mount
• Piston: 2
• Caliper fixing bolt|Tool size: 4 mm
• Caliper fixing bolt|Anti loosen method: Screw fixing pin, snap ring
• Pad mount Pad axle

LEVER

• Series: GRX DI2
• Color: Series color
• Average weight: 373 ( /pair)
• Shifter type: Dual Control Lever
• Remote switch: Yes
• Shift lever|Rear speeds: 11
• Shift lever|Compatible rear derailleur type: Road 11-speed
• Brake lever|Brake hose (Kit): SM-BH90-JK-SSR
• Brake lever|Hose joint: Straight
• Brake lever specifications|Brake hose color (kit)|1: Black
• Brake lever|Recommended brake caliper: BR-RX810
• Brake lever|Brake fluid|Shimano Mineral Oil: Shimano Mineral
• Brake lever|Reach adjust|Tool: Yes
• Brake lever|Reach adjust: Yes
• Brake lever|Clamp band (mm): 23.8-24.2
• Brake lever|Funnel bleeding: Yes
• Brake lever|Free stroke adjust: Yes
• Brake lever|SERVO WAVE: Yes
• Shifter Lever body|Main: GFRP
• Di2 connectivity wired|Di2 shifting: Yes
• Firmware update by E-Tube Project: Yes
• SD50 port (pcs): 2
• SD300 port (pcs): 0
• SD50 connector (pcs) : 0
• SD300 connector (pcs): 0
• Port for remote sprinter shifter (pcs): 0
• Port for SD300 satellite shifter (pcs): 0
