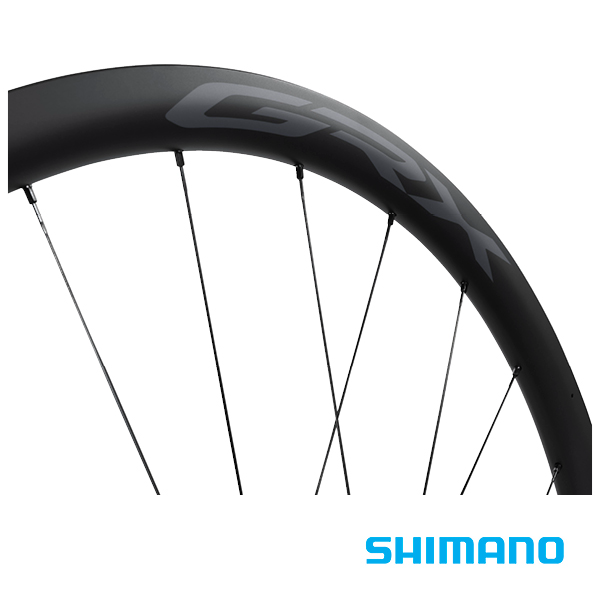

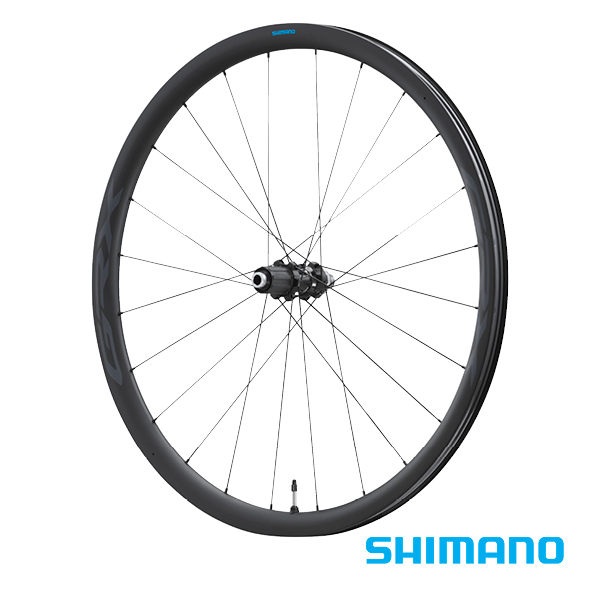

Shimano Rear Wheel GRX WH-RX870 Carbon TLR 11- 12 Speed

Faster, further, and more fun

The new GRX wheel supports gravel rides that are faster, further, and more fun. Wider tires need wider rims to maintain lateral tire stability at low air pressures. Shimano studied the complicated relationship between tire size, rim width, air pressure, and tire lateral rigidity to optimize the GRX rim width for 32-50c tires. In addition, we pursued the best balance of rim weight, strength, and profile in order to deliver an exceptional gravel wheel.

• FEATURES
• First Shimano GRX carbon wheel
• 32 mm height full carbon rim
• Internal rim width: 25 mm
• Recommended tire size: 32-622 - 50-622
• Road 11 & 12-speed compatible

SPECIFICATIONS

• Model No: WH-RX870-TL-F12-700C
• Series: GRX Limited RX810 Series
• Average weight: 639
• Spokes Straight pull: Yes
• Brake type: Center Lock disc brake
• Axle fixing method: E-THRU
• O.L.D. (mm): 100
• Thru axle (length x inner diameter ; mm) 100 x 12: Yes
• Disc mount 140 mm Disc brake rotor compatible: Yes
• Disc mount Center Lock: Yes
• Front/Rear: Front
• Reflector AS: Cateye RR-550-WUA SW
• Reflector DIN: Cateye RR-317-WUA SW
• Reflector JIS/CPSC: Cateye RR-550-WUW SW
• Rim Height (mm): 32
• Rim Requires rim tape: Yes
• Seal Hub: Contact
• Spokes Bladed: Yes
• Spokes Butted: Yes
• Spokes Number: Yes24
• Tire Recommended size32-622 - 50-622
• Tire Type: Tubeless
• Wheel Size: 622 x 25C (700C)
• Color 1 Hub shell: Black
• Model name: WH-RX870-TL
• Rim External width (mm): 30.7
• Rim Internal width (mm): 25
• Spokes Diameter (mm): 2.0-1.6-2.0
• Specification: F12-700C
