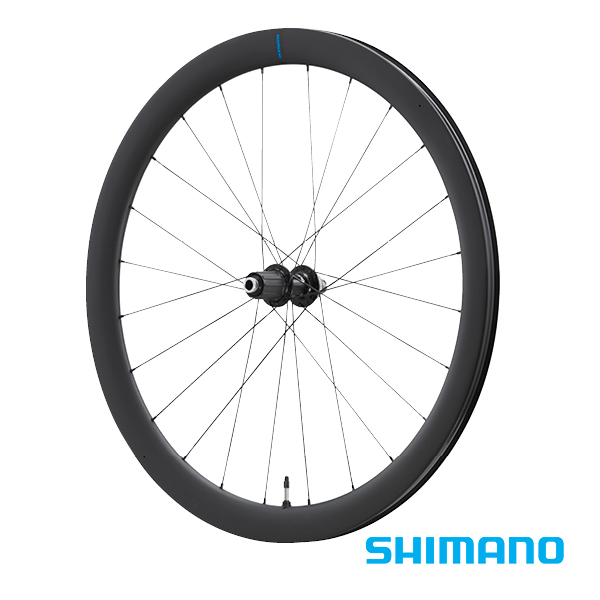

Shimano Rear Wheel WH-RS710-C46-TL DB clincher 46 mm 11/12-Speed 12x142 mm

Shimano has brought full carbon wheels to a new level. With a development concept shared with DURA-ACE and ULTEGRA, the new full carbon wheels offer balanced performance at a lower price. The C46, with its focus on a great all-rounder model, shares DNA with the C50 DURA-ACE and ULTEGRA wheel options.

FEATURES

• Simple design that can be easily matched to any bike
• Most affordable SHIMANO carbon road wheel
• 46 mm height full carbon rim
• Internal rim width: 21 mm
• Road 11 & 12-speed compatible

SPECIFICATIONS

• Model No: WH-RS710-C46-TL-R
• Series: Shimano 105 R7100 Di2 Series
• Average weight: 893
• Model name: WH-RS710
• Specification: C46-TL-R
• Color|1 Hub shell: Black
• Front/Rear: Rear
• Brake type: Center Lock disc brake
• Rear speeds: 12/11
• O.L.D. (mm): 142
• Wheel Size: 622 x 21C
• Tire|Type: Tubeless
• Tire|Recommended size: 25-622 - 32-622
• Rim|Height (mm): 46
• Rim|Internal width (mm): 21
• Rim|External width (mm): 28
• Rim|Requires rim tape: Yes
• Spokes|Number: 24
• Spokes|Bladed: Yes
• Spokes|Butted: Yes
• Spokes|Diameter (mm): 2.0-1.6-2.0
• Axle fixing method: 12 mm E-THRU
• Thru Axle (Length x Inner diameter ; mm)|142 x 12: Yes
• HG spline (ROAD 11-speed): Yes
• Engagement type: Pawl ratchet
• Disc mount|Center Lock: Yes
• Disc mount|140 mm Disc brake rotor compatible: Yes
• D2 rim: Yes
• Seal|Hub: Contact
• Seal|Freehub body: Contact
• Compatible spoke protector: CP-WH24(11-28,30,32,34T) CP-WR71A(11-36T)
• Reflector|JIS/CPSC: CATEYE RR-550-WUW SW
• Reflector|AS: CATEYE RR-550-WUA SW
• Reflector|DIN: CATEYE RR-317-WUA SW
