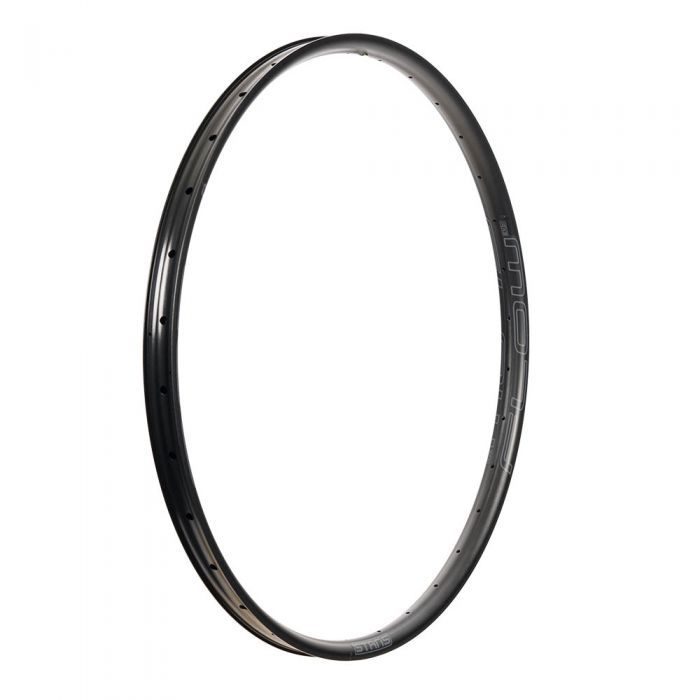

Stans Rim Flow EX3 27.5 Inch 32 Hole Black/Grey

If you’re looking for the ultimate rim for enduro and DH racing, something to handle the increased weight and added speed of an E-bike, or just want the most durable rim possible, this is it. The Flow EX3 combines the 29mm internal width and durable 6069 aluminum construction of the Flow MK3 with the incredibly strong triple cavity design of the classic Flow EX rim. The result is a new rim shape that perfectly balances radial compliance with lateral stiffness and sets an entirely new benchmark for durability and impact resistance.

The Flow EX3 rim’s Tiebeam inner bridge lets it withstand impacts that would deform most rims to the point of air loss and structural failure. Even if you use a tire insert, huge impacts can cause the sidewall of most rims to fold, causing air loss and eventual failure. But the Tiebeam brace and patented low sidewalls of the Flow EX3 resist this folding, maintaining air pressure and structural integrity better than any other rim. Combined with the added durability of 6069 aluminum and WideRight 29mm inner width optimized for 2.35” to 2.8” tires, the Flow EX3 is the evolution of the Flow line for aggressive riding on today’s faster and more capable bikes and E-bikes. Every World Cup DH and Enduro World Series win, every hour of testing, riding, and improving, it’s all here in the Flow EX3.

FEATURES

• Patented low-profile tubeless rim design balances lateral stiffness with radial compliance
• Designed, tested, and raced to victories on the World Cup DH and Enduro World Series circuits
• Tiebeam triple-cavity rim design resists damage and prevents air loss under impacts
• 29mm internal width optimized for 2.35” to 2.8” Trail, All-mountain, and DH tires
• Most trusted tubeless system for easy setup and low maintenance
• 6069 aluminum alloy is stronger than conventional 6061 alloys
• Bead Blasted “BBQ” finish for added durability

SPECIFICATIONS

• Rim Internal Width: 29.0mm
• Rim External Width: 32.6mm
• Rim Depth: 17.9mm
• Hole Count: 32-hole
• Rim Color: Black Bead Blasted Finish (BBQ)
• Material: 6069 Aluminum Alloy
• Brakes: Disc only
• ERD: 564mm (27.5″) / 602mm (29″)
• ETRTO: 584×29.0 (27.5″) / 622×29.0 (29″)
• ISO: 27.5″x32.6mm / 29″x32.6mm
• Tape: 30mm
• Valve: Presta
• Max Spoke Tension: 125KgF/1225N
• Max Pressure with 2.4″ Tire: 37psi
• Max Pressure with 2.8″ Tire: 26psi
• Rim Weight:580g (27.5″) / 618g (29″)
