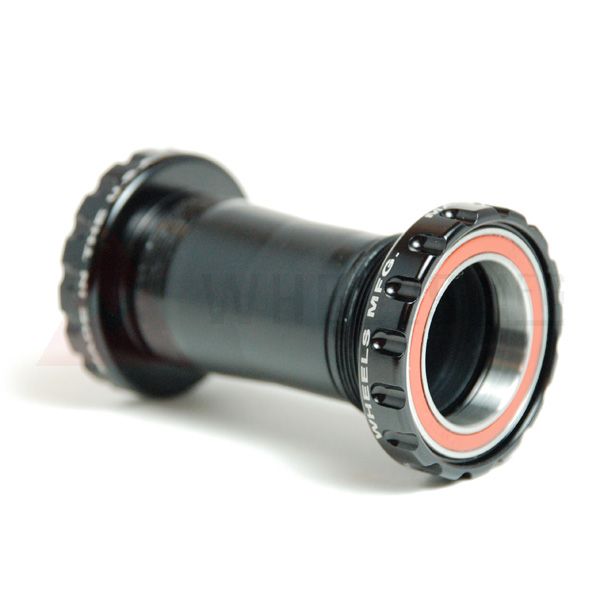

Wheels MFG Threaded to 30mm A/C BB Black

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.

• Bearings: Enduro Angular Contact
• Color: Black
• Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
• Bottom Bracket Shell Width (mm): 68mm - 73mm
• Bottom Bracket Shell I.D.: 33.6-33.9 mm
• Crank Spindle Diameter: 30mm
• Crank Spindle Length: At least 104mm*
• Over Bearing Width: 91.5mm in a 68mm wide shell*
• Weight: 100g
• Packaged for retail display

*Over Bearing Width Dimensions include supplied silicone dust shields.

COMPATIBILITY

• For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).
• Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

PLEASE NOTE
Will not work with crank spindles less than 104mm/BB30 . PLEASE MEASURE YOUR CRANK SPINDLE LENGTH! This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
